Ci115QCT

  • Sale
  • Regular price HK$1,200

Shape
Woofer Size
Mounting Depth

Frequently bought together

    =

      Combining durability, reliability and UL certification

      KEF’s undisputed audio pedigree and consistent, high quality performance, the Ci Commercial Series is an outstanding in-ceiling speaker line-up for project work of all types.


      Ci115QCT Key Features

      • Integral fire-rated metal rear enclosure
      • UL2043-approved for use in air handling spaces
      • UL1480-5-approved for use in fire protection signalling systems
      • Front-mounted switch for selecting 8 ohm or 70/100 volt operation

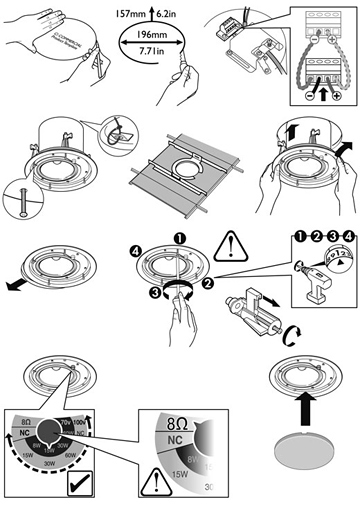

      • Includes the hardware for mounting above a suspended ceiling or in a hard ceiling

      Applications

      The Ci Commercial Series Ci115QCT is best suited where high quality music and speech reinforcement applications require hi-fi performance such as:

      • Multi Room systems
      • Home Theatre systems
      • Lounges, Bars, Boutiques
      • Boardrooms & Offices
      • Airports, Convention Centres, Hotels
      • Live Theatre/Concert Hall fill-in
      • Houses of Worship
      • Sports Arena

      SPECIFICATIONS

      The Details

      Specifications

      NOMINAL IMPEDANCE

      8 Ohms



      SENSITIVITY

      86dB (2.83V/ 1m)



      FREQUENCY RESPONSE

      70 - 20kHz (+/-6dB) With back can/rear enclosure



      DRIVE UNITS

      LF: 115mm / HF: 19mm



      RECOMMENDED AMPLIFIER POWER

      15 - 80W



      FEATURES

      Uni-Q Array, UL2043 & UL1480-5 approved, 70V: 4W, 8W, 15W, 30W / 100V: 8W, 15W, 30W

      PRODUCT EXTERNAL DIMENSIONS

      Diameter / Depth : 220mm (8.66in.) / 160mm (6.30in.)



      CUT-OUT DIMENSIONS

      Diameter : 196mm (7.71in.)



      MOUNTING THICKNESS

      Ceiling Thickness (Maximum): 33mm (1.3 in.)
      Ceiling Thickness (Minimum): 4mm (0.16 in.)



      MOUNTING DEPTH FROM SURFACE

      With back can : 157mm (6.18in.)



      NET WEIGHT

      2.7 kg (5.94 lbs)



      UNIT MEASUREMENT

      Piece



      INSTALLATIONS

      Please visit our Ci Software Download page for more details.
