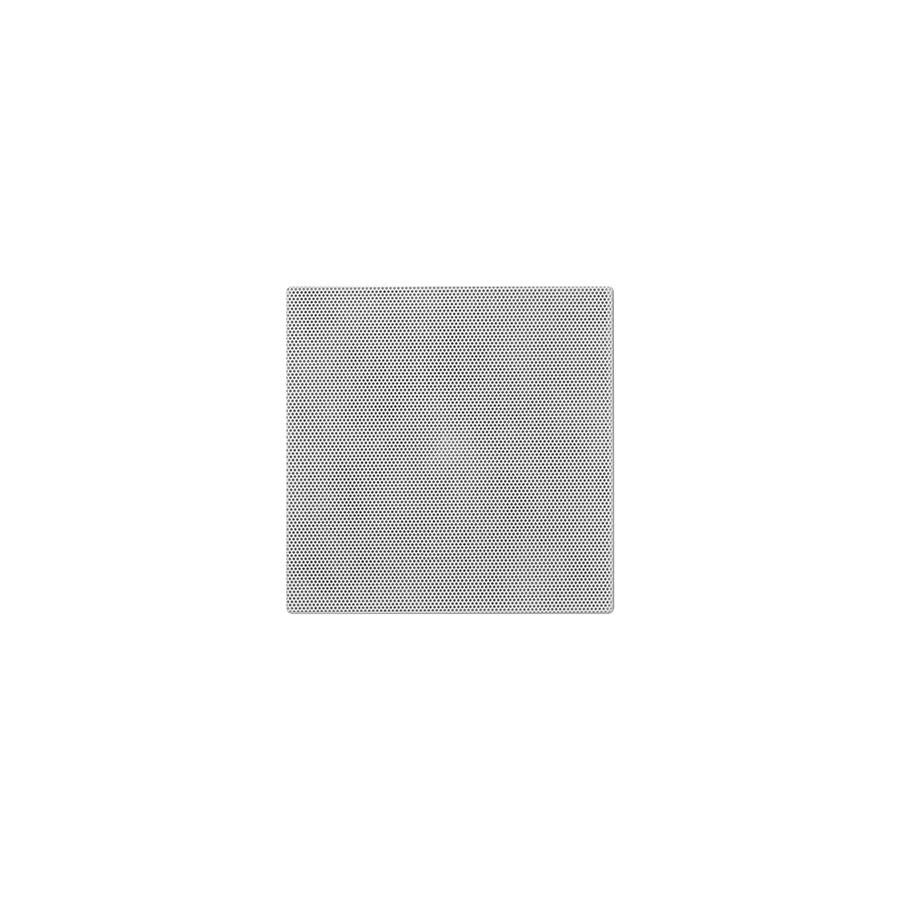

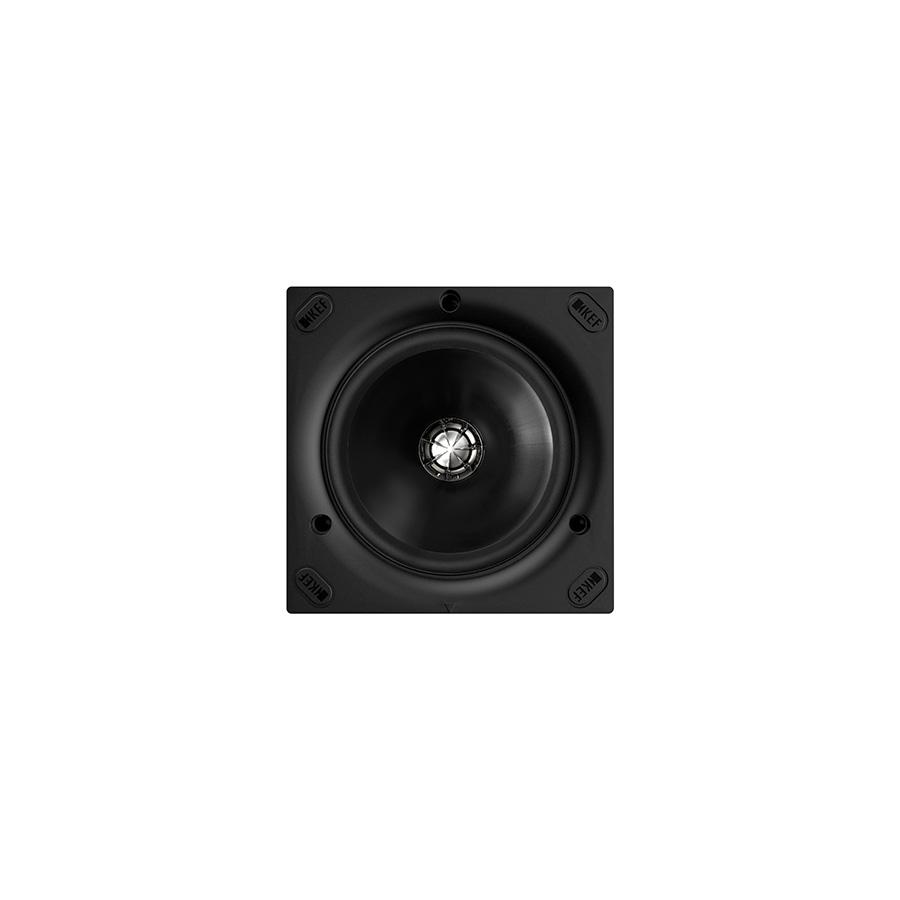

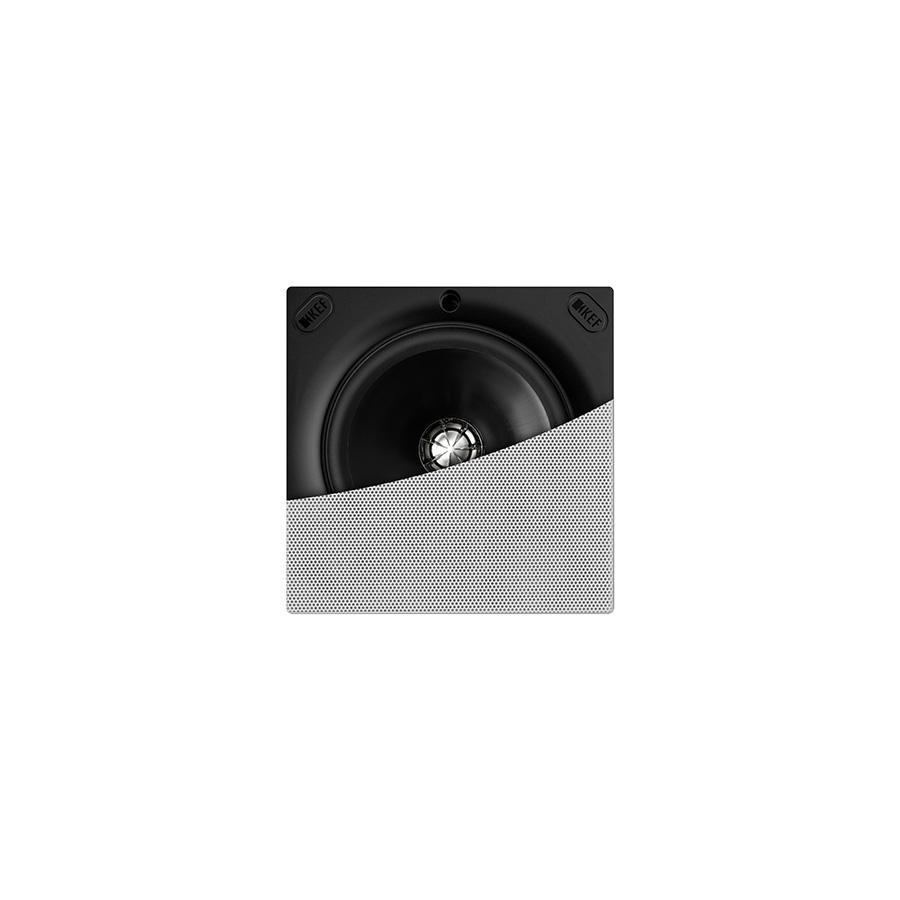

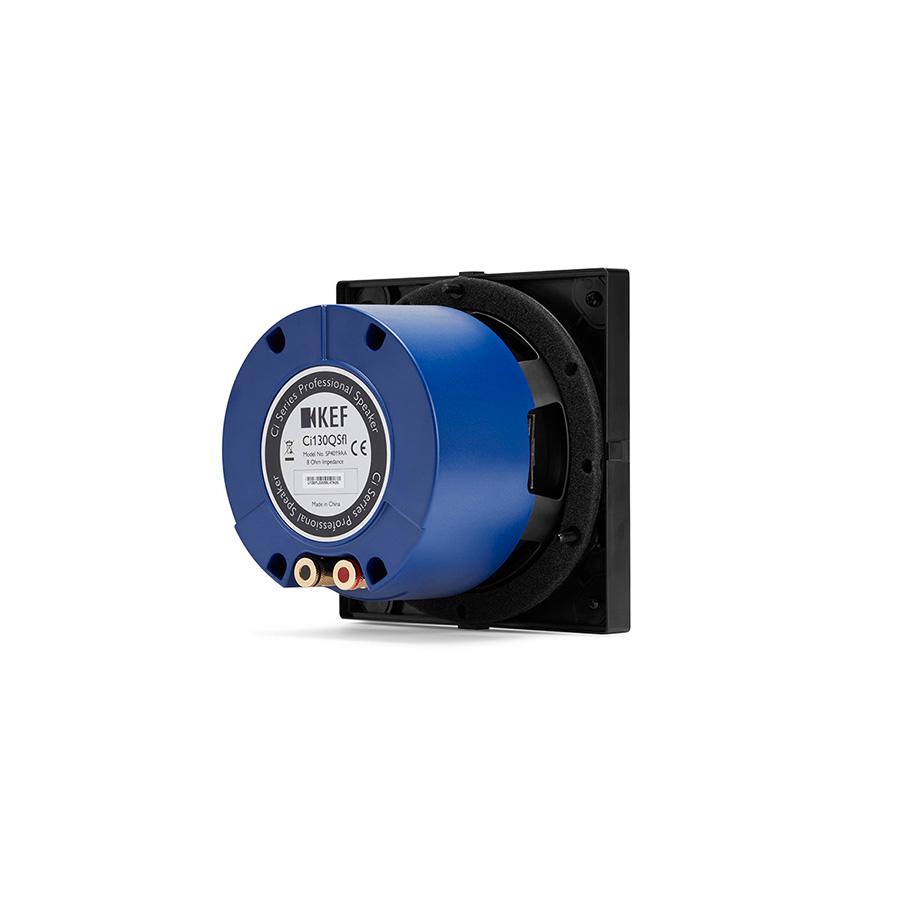

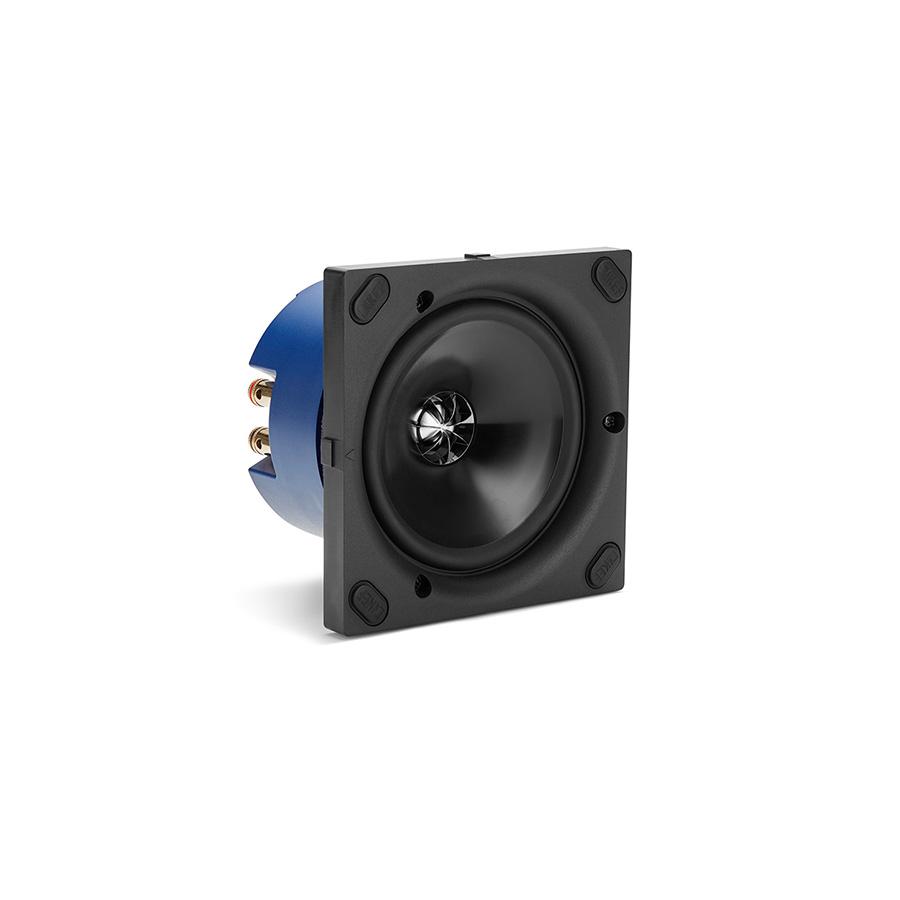

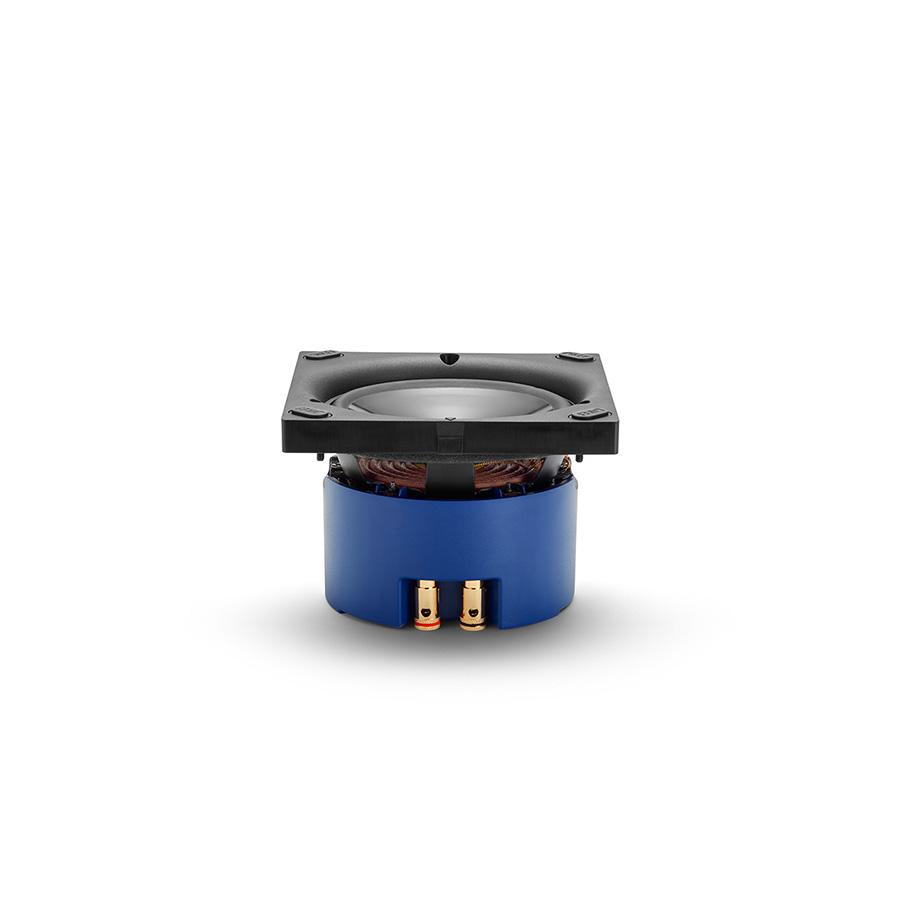

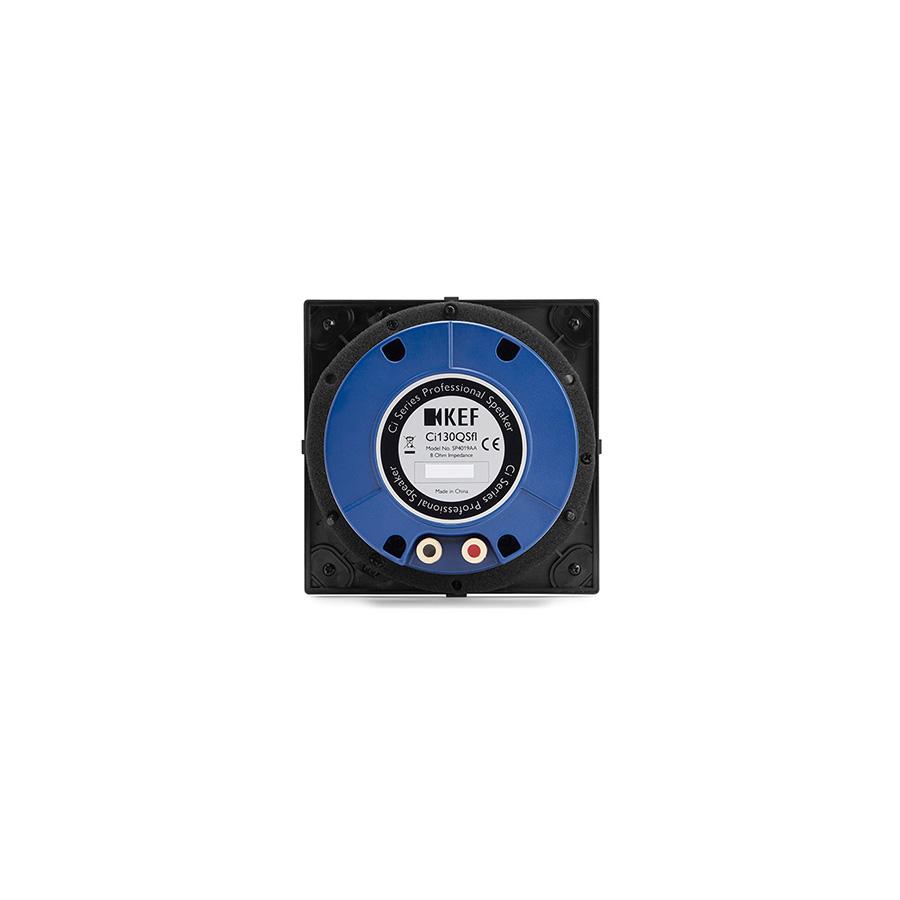

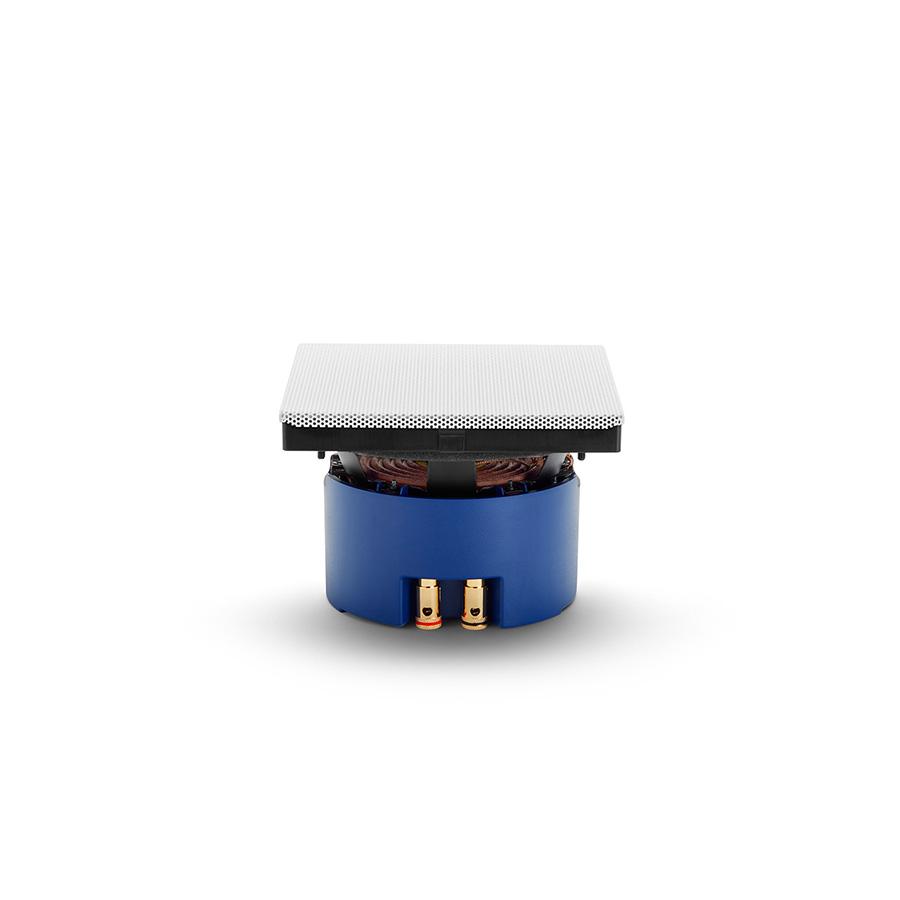

      Flush Mount Architectural Speaker

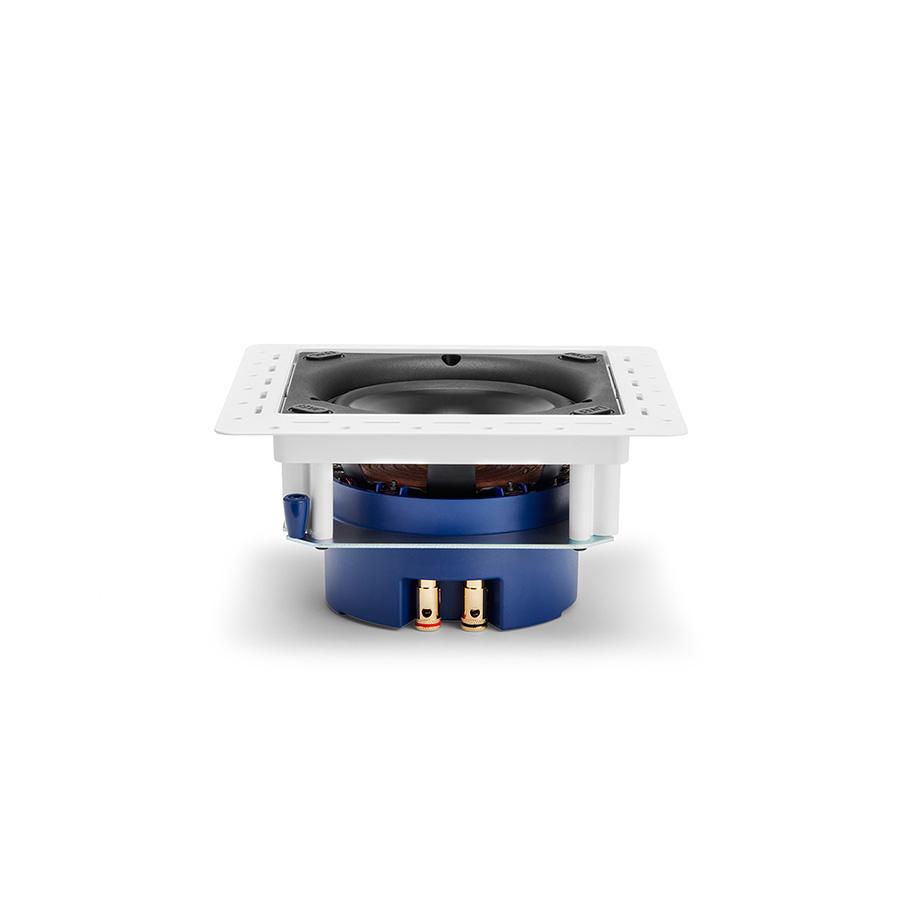

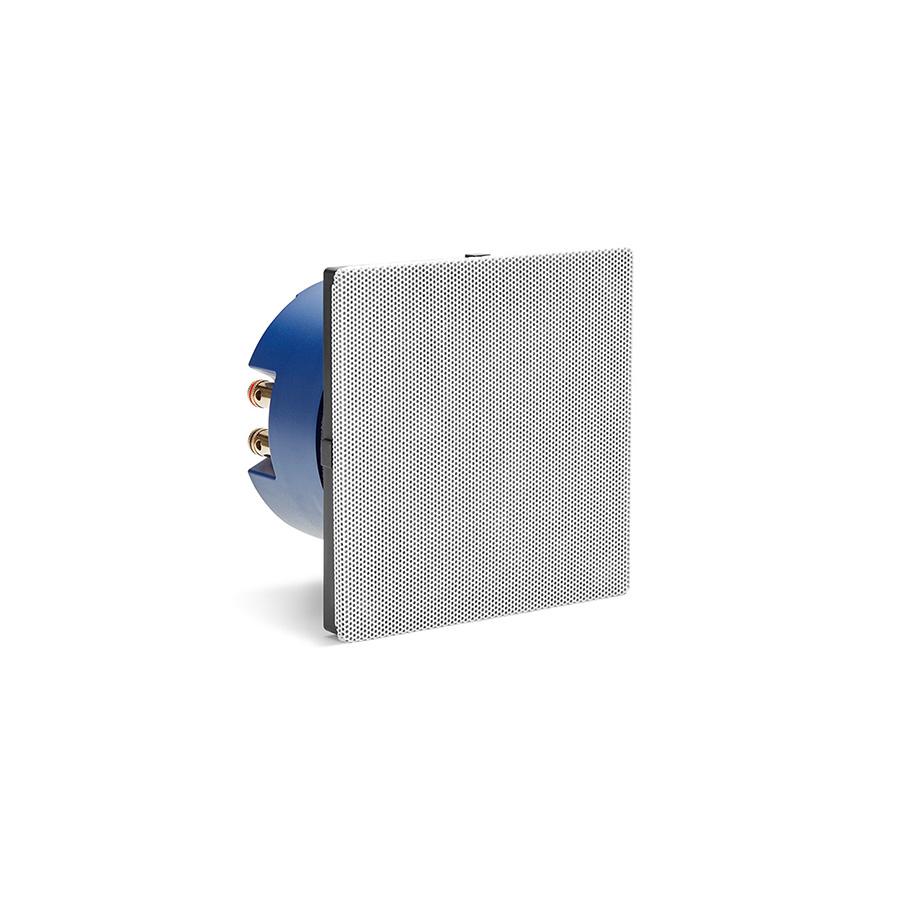

      The KEF Ci130QSfl is a flush-mounted frameless architectural speaker engineered for high-quality sound and simple installation. Designed for both new builds and retrofitting, Ci130QSfl sits flush with the wall or ceiling, making it ideal for properties with clean lines and minimalist features.


      Ci130QSfl

      Part of the Ci Q Series, Ci130QSfl is built around KEF’s signature Uni-Q array so it acts as a single point source, which combined with Tangerine Waveguide technology, disperses pristine sound throughout a room. The Ci130QSfl is a square loudspeaker, while the Ci130QRfl features identical drivers in a round format.

      Intuitive Installation

      Ci130QSfl is engineered to be easy to install. Designed for both new construction and retrofitting, Ci130QSfl can be installed as part of the plastering process, and thanks to its frameless design it sits completely flush with the wall or ceiling for an incredibly clean finish.

      SPECIFICATIONS

      The Details

      Specifications

      NOMINAL IMPEDANCE

      8 Ohms



      SENSITIVITY

      87dB (2.83V/ 1m)



      Frequency response (±6dB)
      open-backed

      45Hz - 34kHz



      Frequency range (-10dB)

      38Hz-30kHz



      Nominal coverage (degrees)

      130



      Max SPL (dB)

      103



      Crossover frequency

      3.8kHz



      DRIVE UNITS

      LF: 130mm (5.25in.) Uni-Q
      HF: 19mm (0.75in.)

      RECOMMENDED AMPLIFIER POWER

      10-100W



      Recommended high-pass filter (Hz)

      50Hz



      Product external dimensions

      200.5 x 200.5 x 103.6 mm
      (7.9 x 7.9 x 4.08 in.)



      CUT-OUT DIMENSIONS

      158 x 158 mm
      (6.22 x 6.22 in.)



      MOUNTING THICKNESS

      Ceiling Thickness (Maximum): 31mm (1.220in.)
      Ceiling Thickness (Minimum): 8mm (0.315in.)



      Net Weight

      1.6kg (3.53Ibs.)



      Mounting depth from surface

      101mm (3.98in.)



      OPTIONAL ROUGH IN FRAME

      NA



      OPTIONAL REAR ENCLOSURE

      NA



      Ideal Rear Volume(L)

      15

      Please visit our Ci Software Download page for more details.
