KEF’s patented Uni-Q driver array
Ci130.2CS in-wall speaker allows sound to disperse more evenly throughout the room. The extremely shallow mounting depth allows you to install the Ci130.2CS where other speakers in its class won’t fit.

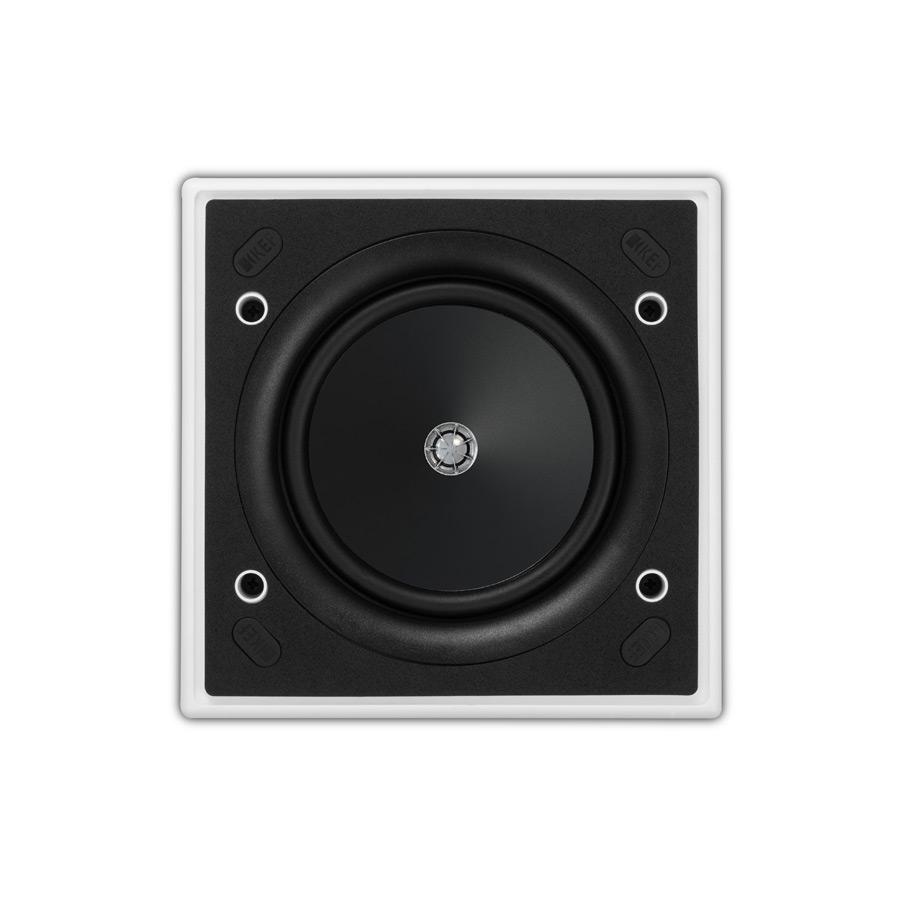

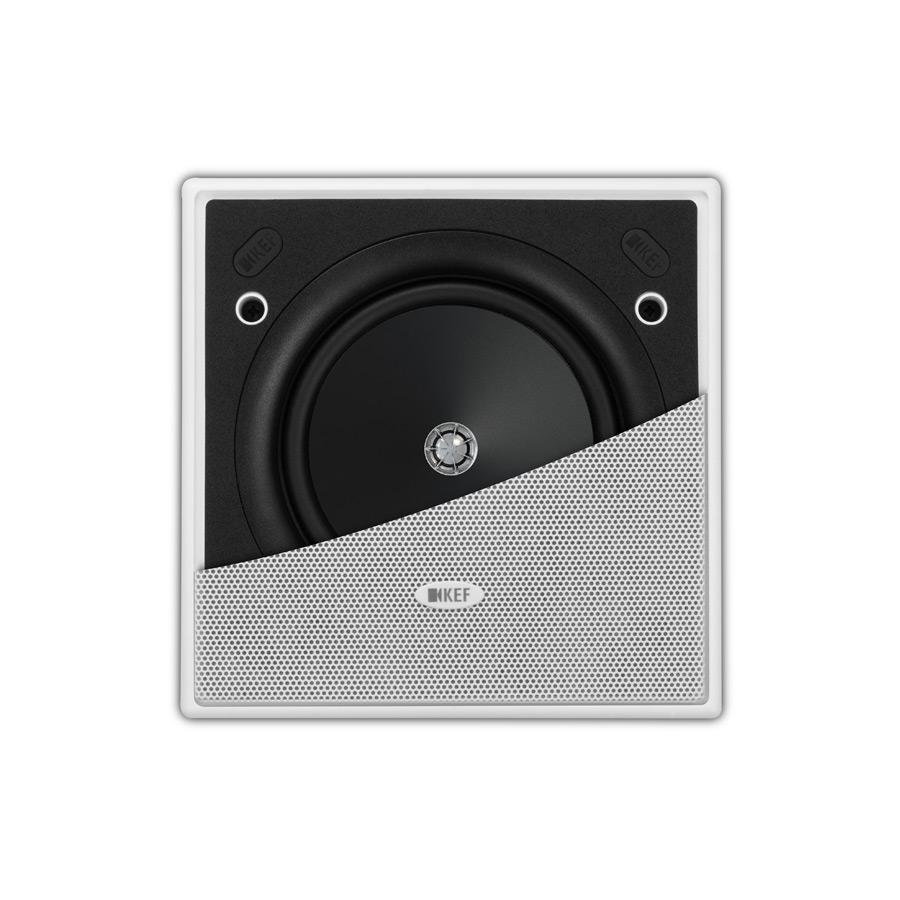

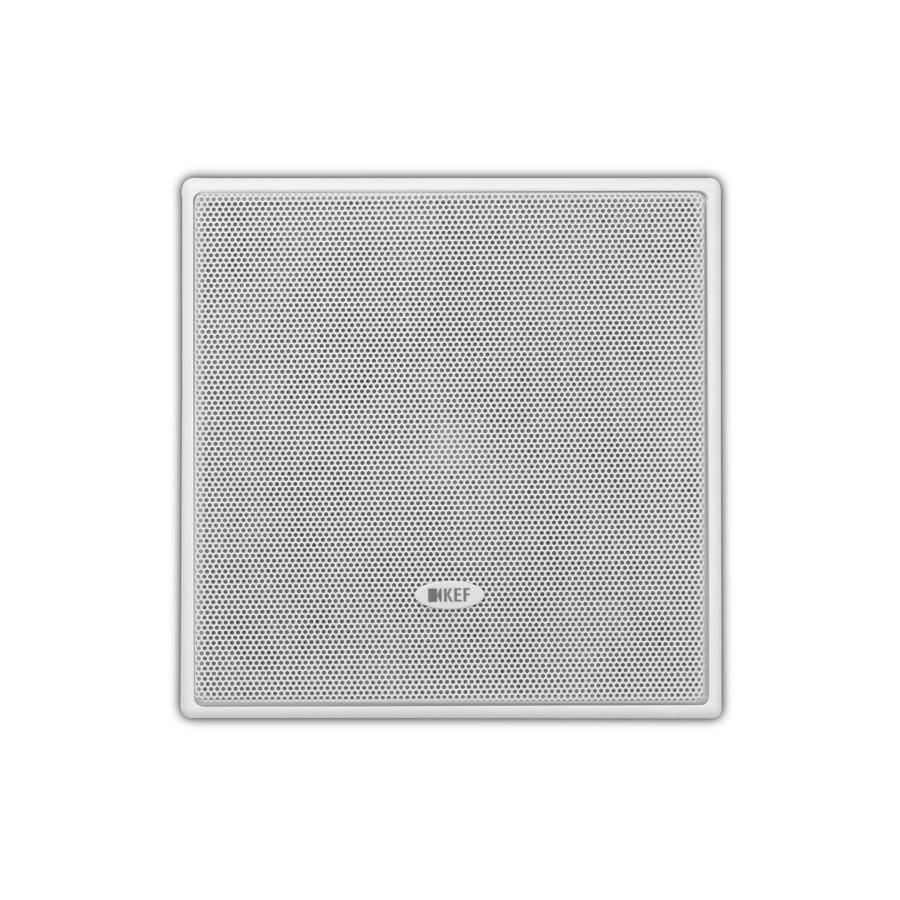

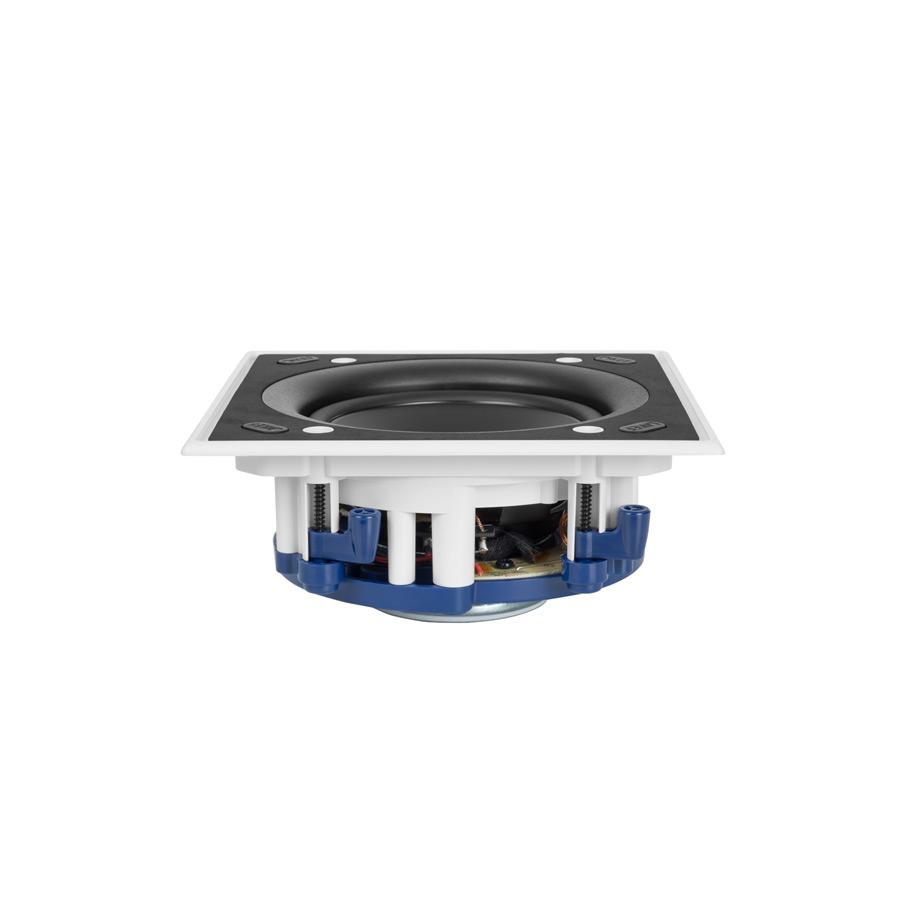

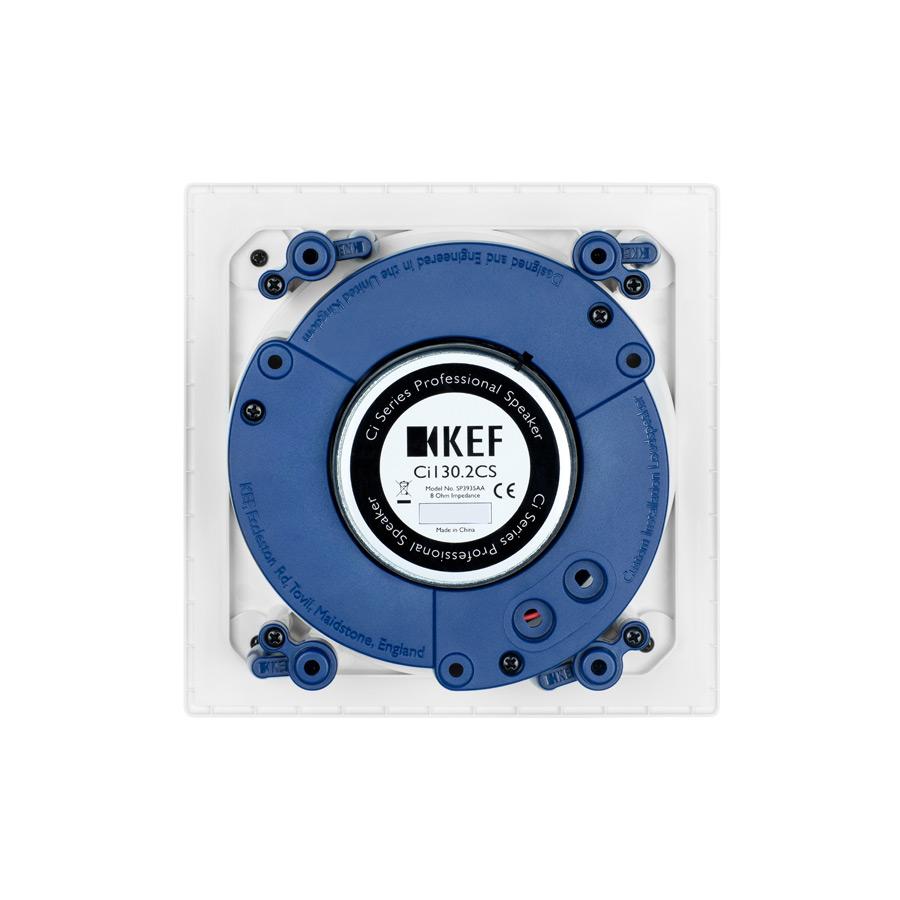

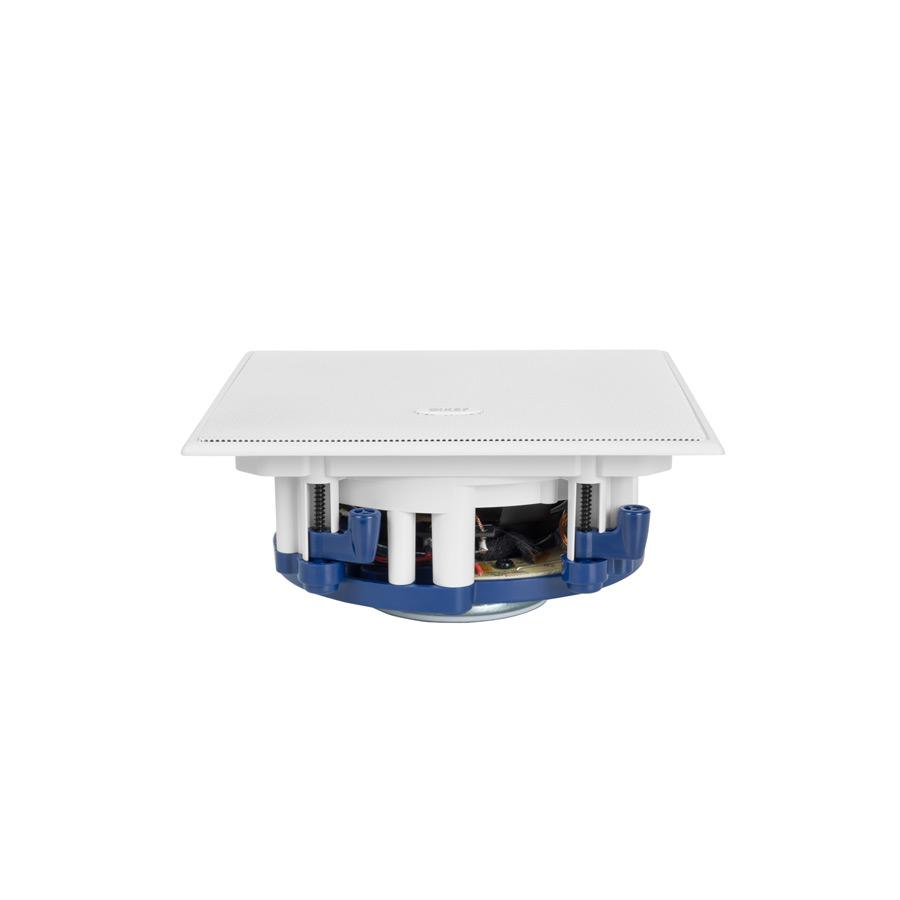

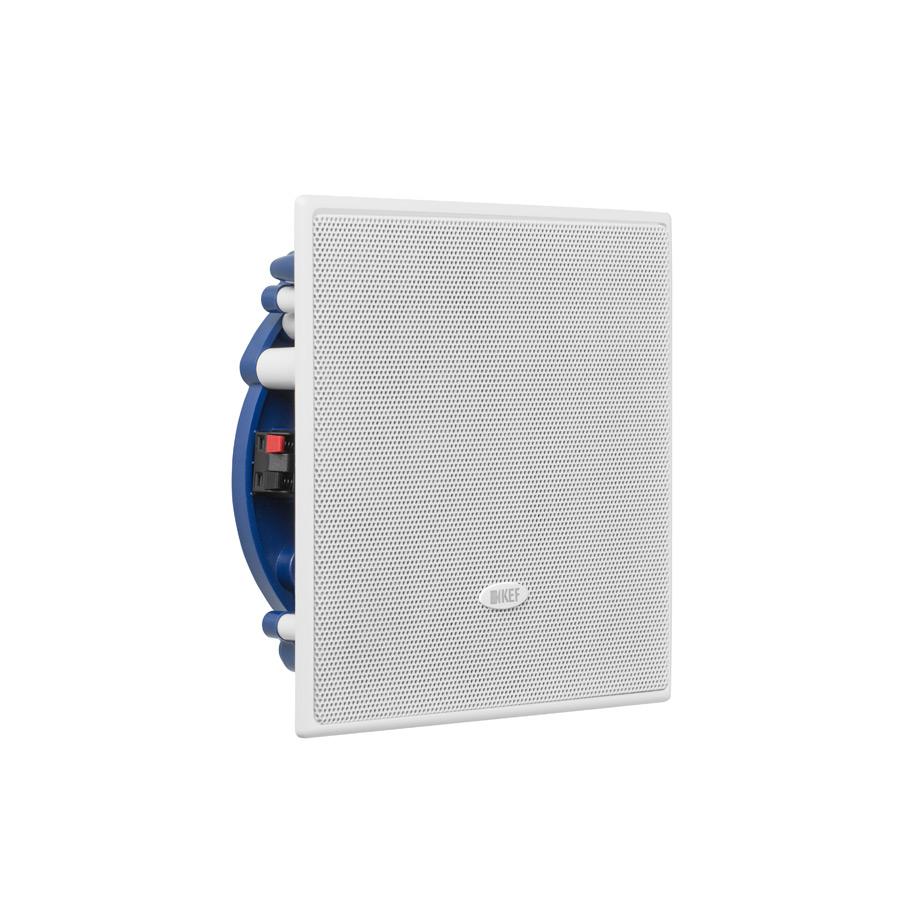

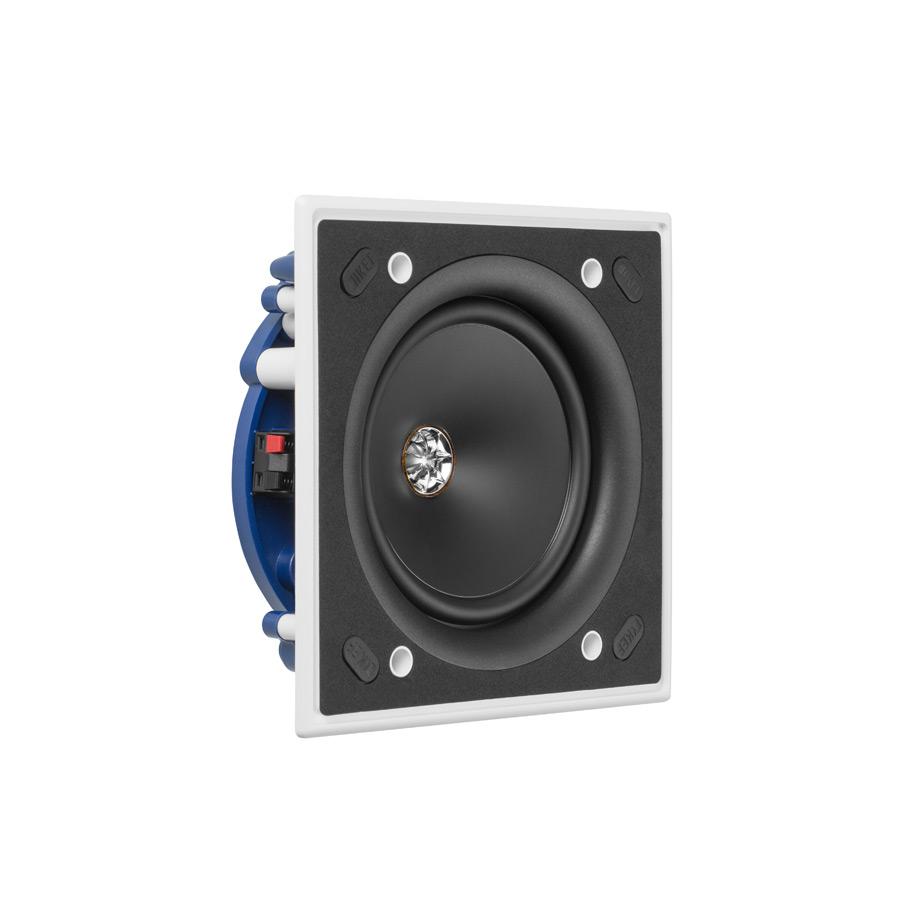

Ci130.2CS
Ci-C Series offers an ideal introduction to the world of custom installation speakers. Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room.
Weather resistant treatment protects the speakers from moisture and UV light. Ultra-Thin Bezels that are barely visible at the edge of exceptionally flat grilles mean the C Series fits unobtrusively into your home.
Weather resistant treatment protects the speakers from moisture and UV light. Ultra-Thin Bezels that are barely visible at the edge of exceptionally flat grilles mean the C Series fits unobtrusively into your home.
The Details
FEATURES
- UTB™ Ultra-Thin Bezel
- 130mm (5.25in.) Uni-Q driver
- 16mm (0.6in.) Aluminium dome tweeter with tangerine waveguide
- Magnetic grille
- Paintable grille and bezel
- Weather Resistant
- IP64 certified
SPECIFICATIONS
Nominal Impedance
8 Ohms
Sensitivity
87dB (2.83V/lm)
Frequency Response
52Hz-20kHz (+/-6dB) open-backed
Crossover Response
2.5kHz
Drive Units
LF: 130mm (5.25in.) Uni-Q
HF: 16mm (0.6in.)
HF: 16mm (0.6in.)
Recommended Amplifier Power
10-80W
Product External Dimensions (H X W X D)
184 x 184 x 81 mm (7.24 x 7.24 x 3.19 in.)
Cut-Out Dimensions (H X W)
158 x 158 mm (6.22 x 6.22 in.)
Mounting Thickness
Ceiling Thickness (Maximum): 24mm (0.95 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Mounting Depth From Surface
77.1mm (3.03in.)
Optional Rough In Frame
RIF130S
Optional Rear Enclosure
RNC130S
Net Weight
1.2kg (2.7lbs)
Unit Measurement
Piece
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
Please visit our Ci Software Download page for more details.
