Ci130QS

  • Sale
  • Regular price HK$1,600

Shape
Woofer Size
Mounting Depth

Frequently bought together

    =

      Features KEF’s patented Uni-Q driver array

      The stylish Ci130QS's thin bezel and narrow rim allow for flawless visual integration into your wall or ceiling. KEF's patented Uni-Q driver spreads sound over a wider area enabling you to use less speakers and still experience an even sound-stage.


      Ci130QS

      Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Together with the discreet Ultra Thin Bezel (UTB) design, offering the slimmest possible visible rim around the speaker, the Ci Q Series range gives you tremendous freedom to position the speakers where you please.

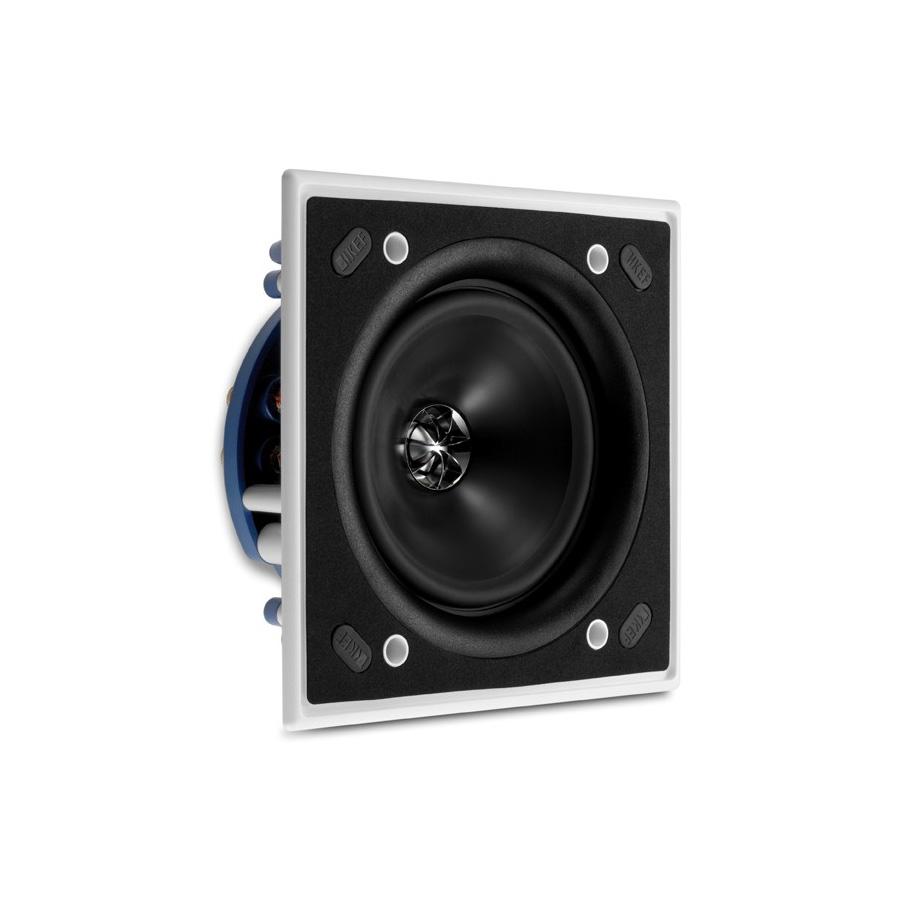

      Grille Off

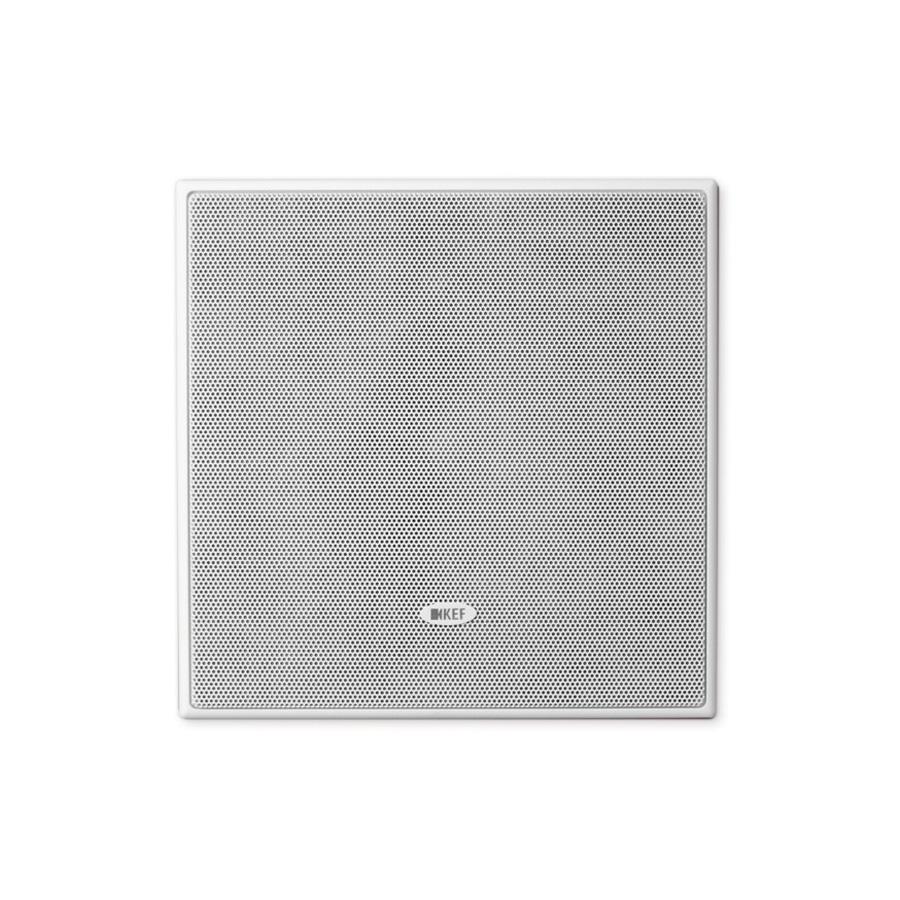

      Grille On

      Fast and Easy to Install

      KEF's Ci loudspeaker design makes them so quick and easy to install that once the wire is run and the hole is cut in your wall or ceiling you can be listening to music in less than two minutes.

      SPECIFICATIONS

      The Details

      Specifications

      NOMINAL IMPEDANCE

      8 Ohm



      SENSITIVITY

      87dB (2.83V/ 1m)



      CROSSOVER FREQUENCIES

      3.8kHz




      FREQUENCY RESPONSE

      45Hz - 34kHz (±6dB) open backed



      DRIVE UNITS

      LF: 130mm (5.25in.)
      HF: 19mm (0.75in.) Uni-Q



      RECOMMENDED AMPLIFIER POWER

      10 - 100W



      PRODUCT EXTERNAL DIMENSION (H X W X D)

      184 x 184 x 84 mm (7.24 x 7.24 x 3.26 in.)

      CUT-OUT DIMENSIONS (H x W)

      158 x 158 mm (6.22 x 6.22 in.)



      MOUNTING THICKNESS

      Ceiling Thickness (Maximum): 24mm (0.95 in.)
      Ceiling Thickness (Minimum): 6mm (0.24 in.)



      MOUNTING DEPTH FROM SURFACE

      77.9mm (3.07in.)



      OPTIONAL ROUGH IN FRAME

      RIF130S



      OPTIONAL REAR ENCLOSURE

      RNC130S

      NET WEIGHT

      1.4kg (3.1lbs.)


      UNIT MEASUREMENT

      Piece



      DOCUMENT DOWNLOAD

      REMARKS

      KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.

      Please visit our Ci Software Download page for more details.
