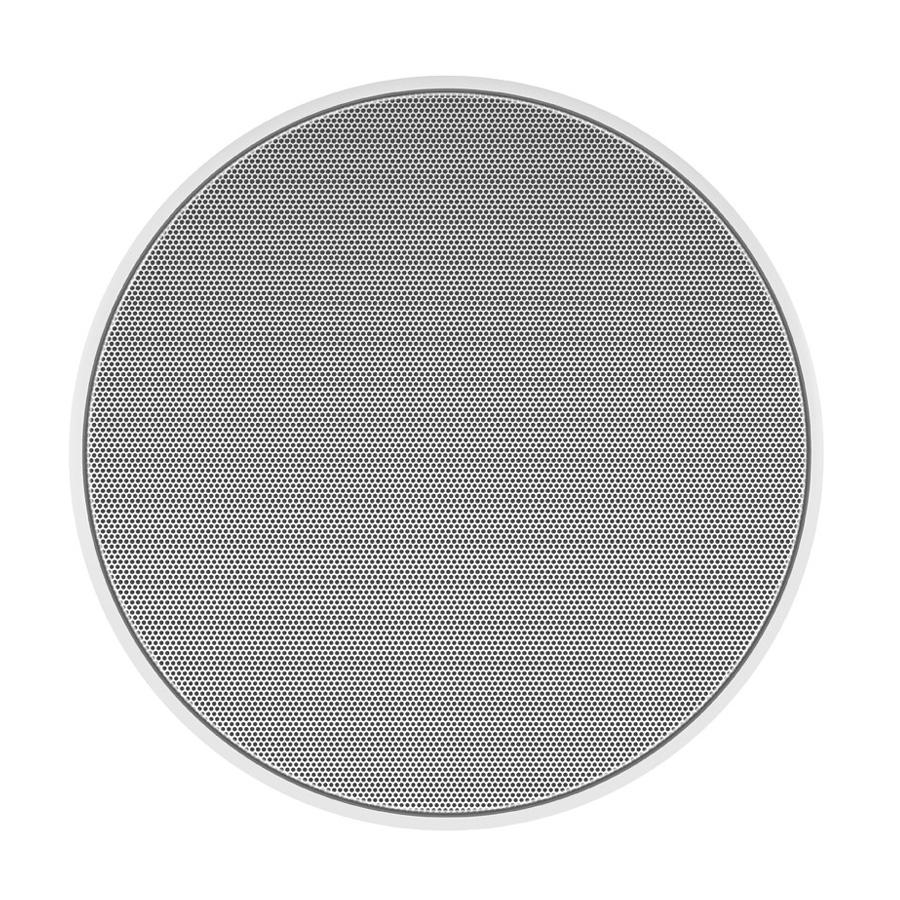

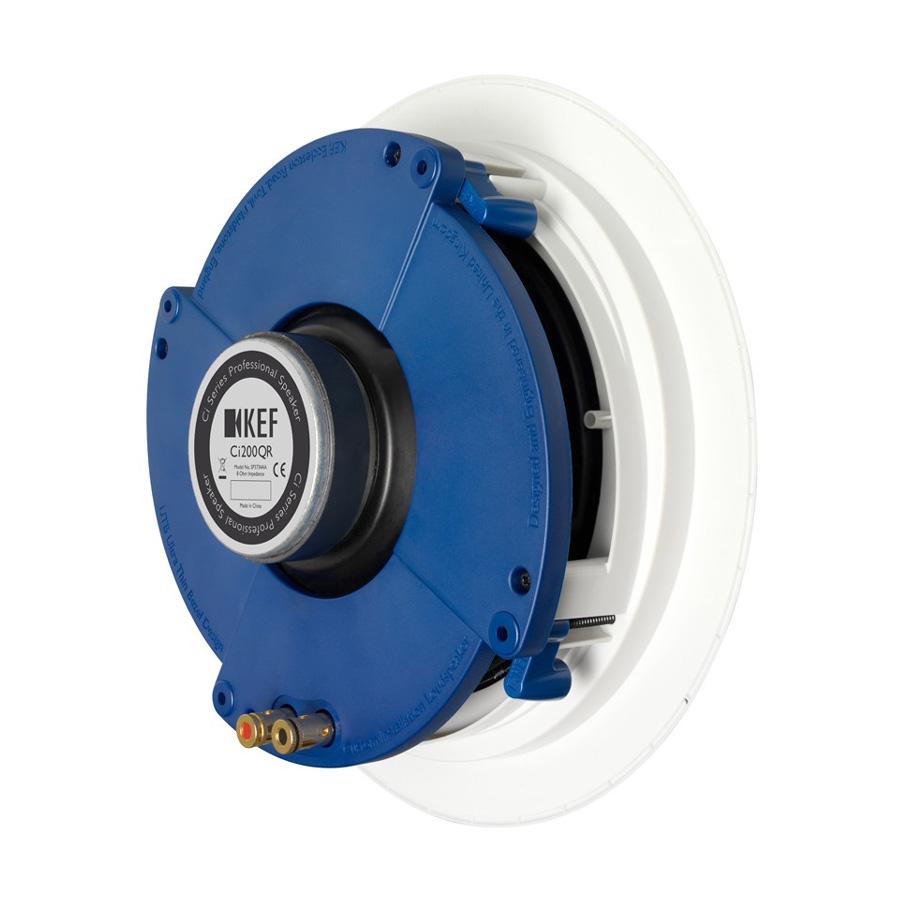

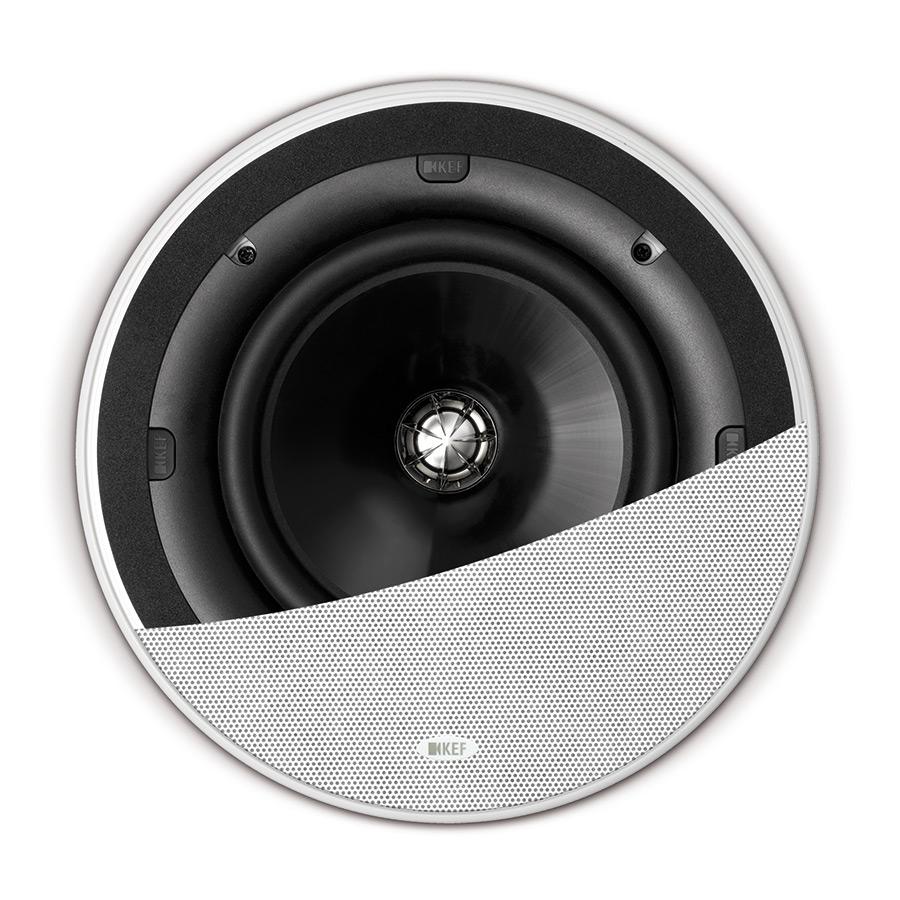

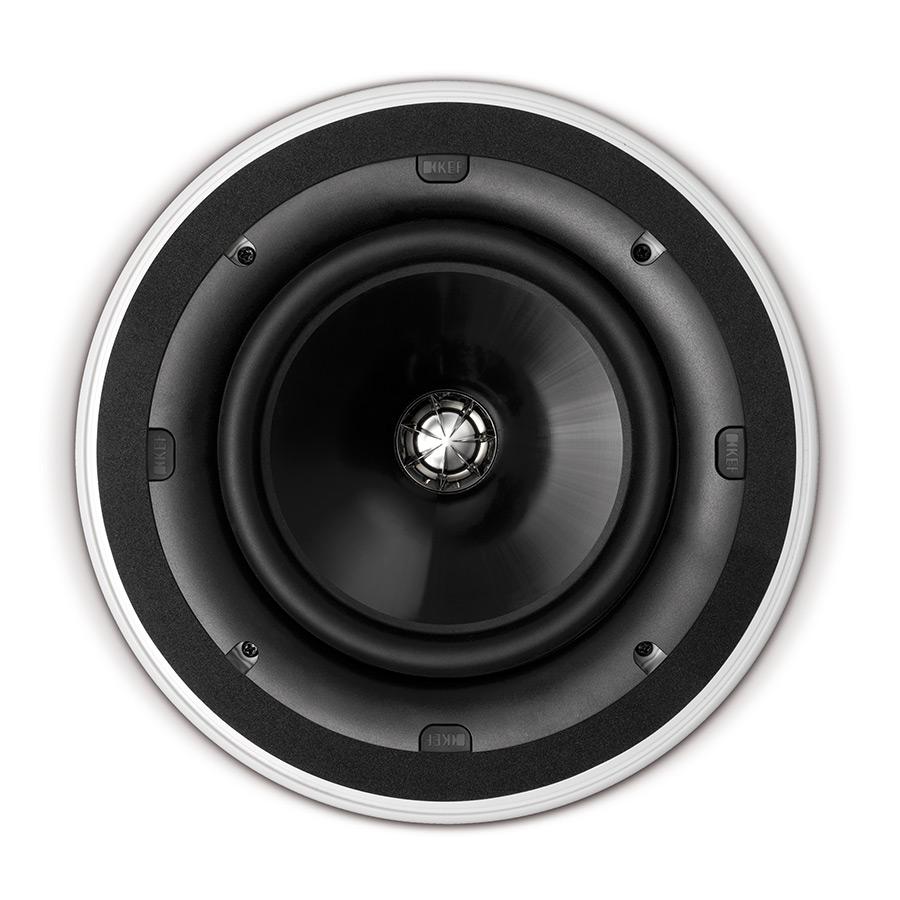

Ci200QR
工程安裝揚聲器
Thin bezel and narrow rim allow for flawless integration
The stylish Ci200QR's thin bezel and narrow rim allow for flawless integration into your ceiling and KEF's new Uni-Q driver, which spreads sound over a wider area enabling you to use less speakers. These two features alone combine to make the Ci200QR perfect for any space.
Ci200QR
Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Together with the discreet Ultra Thin Bezel (UTB) design, offering the slimmest possible visible rim around the speaker, the Ci-Q Series range gives you tremendous freedom to position the speakers where you please.
The Details
FEATURES
UTB™ Ultra Thin Bezel
200mm (8.0in.) Uni-Q driver array
25mm (1.0in.) Aluminium dome tweeter and 'tangerine' waveguide
Gold plated spring loaded binding posts
200mm (8.0in.) Uni-Q driver array
25mm (1.0in.) Aluminium dome tweeter and 'tangerine' waveguide
Gold plated spring loaded binding posts
SPECIFICATIONS
Nomimal Impedance
8 Ohm
Sensitivity
90dB (2.83V/ 1m)
Frequency Response
35Hz - 34kHz (±6dB) 2pi/open-backed
Drive Units
LF: 200mm (8.0in.)
HF: 25mm (1.0in.)
HF: 25mm (1.0in.)
Recommended Amplifier Power
10 - 150W
Product External Dimension (H X W X D)
Diameter : 289.6mm (11.4in.)
Depth : 109.8mm (4.33in.)
Depth : 109.8mm (4.33in.)
Cut-Out Dimensions (H X W)
Diameter : 240mm (9.45in.)
Mounting Thickness
Ceiling Thickness (Maximum): 37mm (1.46 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Mounting Depth From Surface
Product only : 103.3mm (4.07in.)
Optional Rough In Frame
RIF200R
Net Weight
2.4 kg (5.28 lbs)
Unit Measurement
Piece
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
Please visit our Ci Software Download page for more details.
