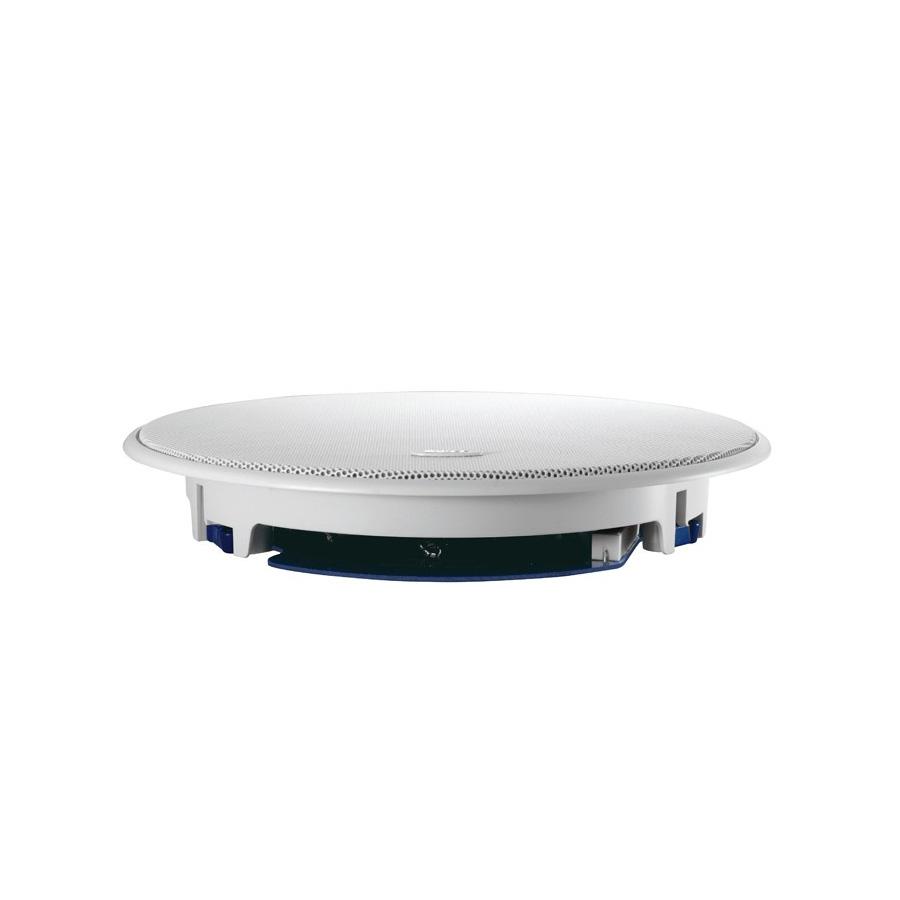

Ci160TR
Boasting the latest incarnation of our formidable
4.5in. mid/bass T Series driver and powerful 1in. tweeter, the ultra-slim new T Series Ci speakers open
up new possibilities for enjoying KEF’s uncompromised sound quality where space above the ceiling is at
a premium. Requiring less than 36mm of mounting depth, the Ci160TR fits snugly in very narrow ceiling
spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments
or your music system.


細節
FEATURES
主要特點
<36mm mounting depth allows fitment
to very restricted cavities
超薄型低音單體具有優質的低音延展性。
在高音單體上使用 KEF 獨創的瓣形波導管將有助於聲音的擴散效果,並提供絕佳的單體保護。
剛性振膜能確保中低音更清晰。
超薄凹槽與磁性面網圈的設計能夠更融入家中裝潢。
簡易靈活的安裝方式,在任何表面上均能使用釘子或螺絲緊固。
超薄型低音單體具有優質的低音延展性。
在高音單體上使用 KEF 獨創的瓣形波導管將有助於聲音的擴散效果,並提供絕佳的單體保護。
剛性振膜能確保中低音更清晰。
超薄凹槽與磁性面網圈的設計能夠更融入家中裝潢。
簡易靈活的安裝方式,在任何表面上均能使用釘子或螺絲緊固。
技術規格
阻抗
8
Ohm
靈敏度
87dB (2.83V/ 1m)
分頻點
1.7kHz
頻率響應
110Hz - 24kHz (±6dB) open backed
驅動單元M
LF: 115mm (4.5 in.) dual layer MF
HF: 25mm (1 in.) aluminium HF
HF: 25mm (1 in.) aluminium HF
建議輸出功率
10-100W
產品外部尺寸
Diameter: 234.6mm (9.24 in.)
Depth: 40mm (1.57 in.)
Depth: 40mm (1.57 in.)
圖樣尺寸
196mm (7.71 in.)
安裝厚度
天花厚度(最大):26 毫米(1.03 英寸)
天花厚度(最小):9 毫米(0.36 英寸)
天花厚度(最小):9 毫米(0.36 英寸)
表面安裝深度
36mm (1.42 in.)
適配框架
RIF160R
選配後置音箱
RNC160R
KEF reserves the right, in line with
continuing research and development, to amend or change specifications. E&OE.
更多資訊,請瀏覽 Ci 軟件下載 。
