工程安裝揚聲器

THX® CERTIFIED DOMINUS
免運費 免運費
30日免費退貨 30日免費退貨
2 年保養 2 年保養

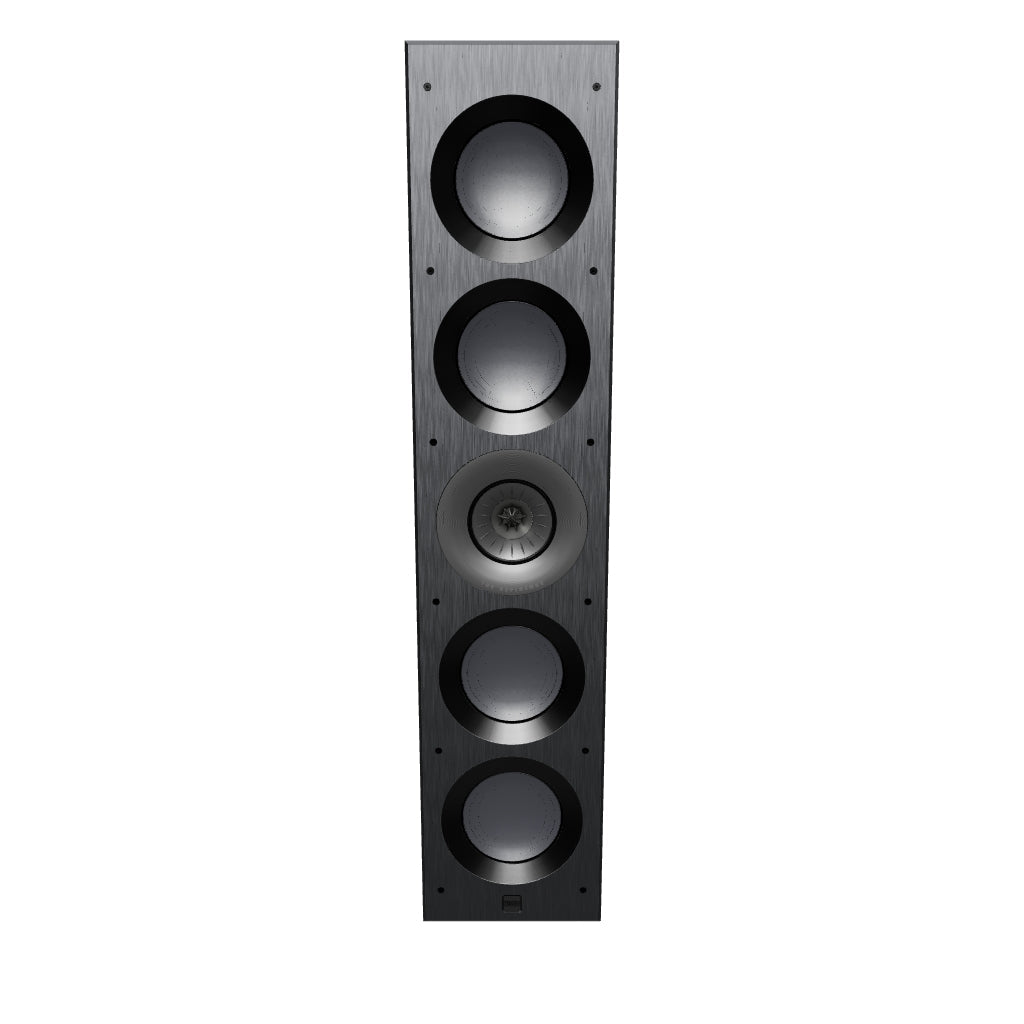

KEF’s first THX® Certified Dominus speaker

The in-wall Ci-Reference architectural speaker Ci5160REFM-THX is KEF's first in-wall speaker to be THX® Certified Dominus among the very few that can achieve this ultimate standard worldwide. Together with a 12th generation Uni-Q driver array with Metamaterial Absorption Technology (MAT™), Ci5160REFM-THX delivers an immersive, high-fidelity soundstage with unmatched sonic excellence even for the most extensive home theatres and living rooms.
查詢
購買地點
Select a property

Select a property

Select a property

Select a property
Select a property

Select a property

Select a property

Select a property
Select a property

Select a property

Select a property

Select a property

Select a property

Select a property
Select a property
Grille Off
Grille On
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property

如臨現場的高保真音效

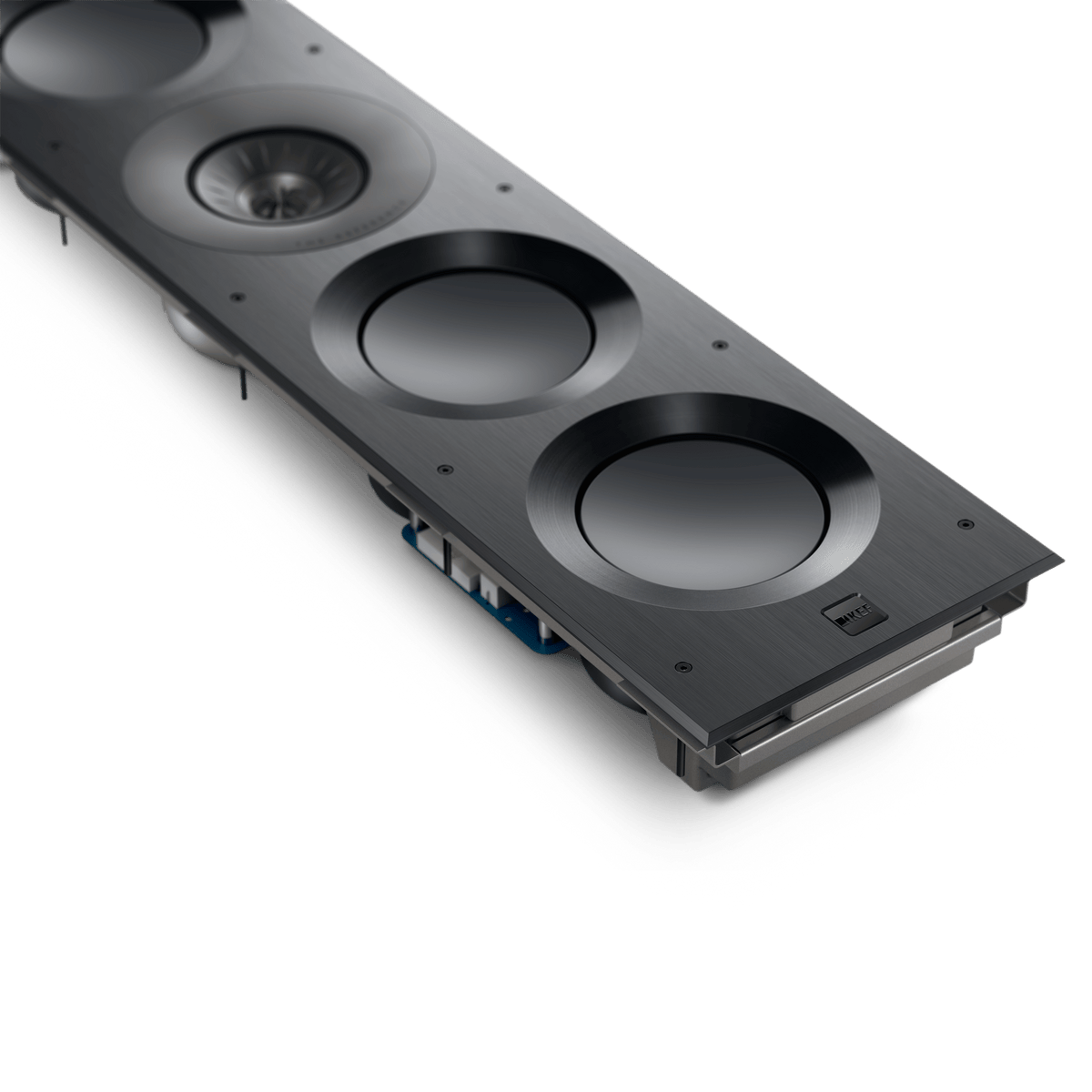

Ci5160REFM-THX 備有四部 160 毫米（6.5 吋）低音驅動單元，帶來最低達 32Hz的清晰渾厚、俐落精準的低音表現。加上專為入牆環境設計的巨型通風傳動系統，讓 Ci5160REFM-THX 與空間融為一體，只留下令人讚嘆、全然沉浸的聲音體驗。

THX® DOMINUS 認證

Ci5160REFM-THX 榮獲 THX® 最高效能等級 Dominus 認證，是代表家用空間中最為接近公開電影院體驗的等級。

Metamaterial Absorption Technology

吸收 99% 的雜訊

於英國人手打造

Ci-Reference 是 KEF 的高階揚聲器系列，在英國梅德斯通設計、組裝與手工打造。

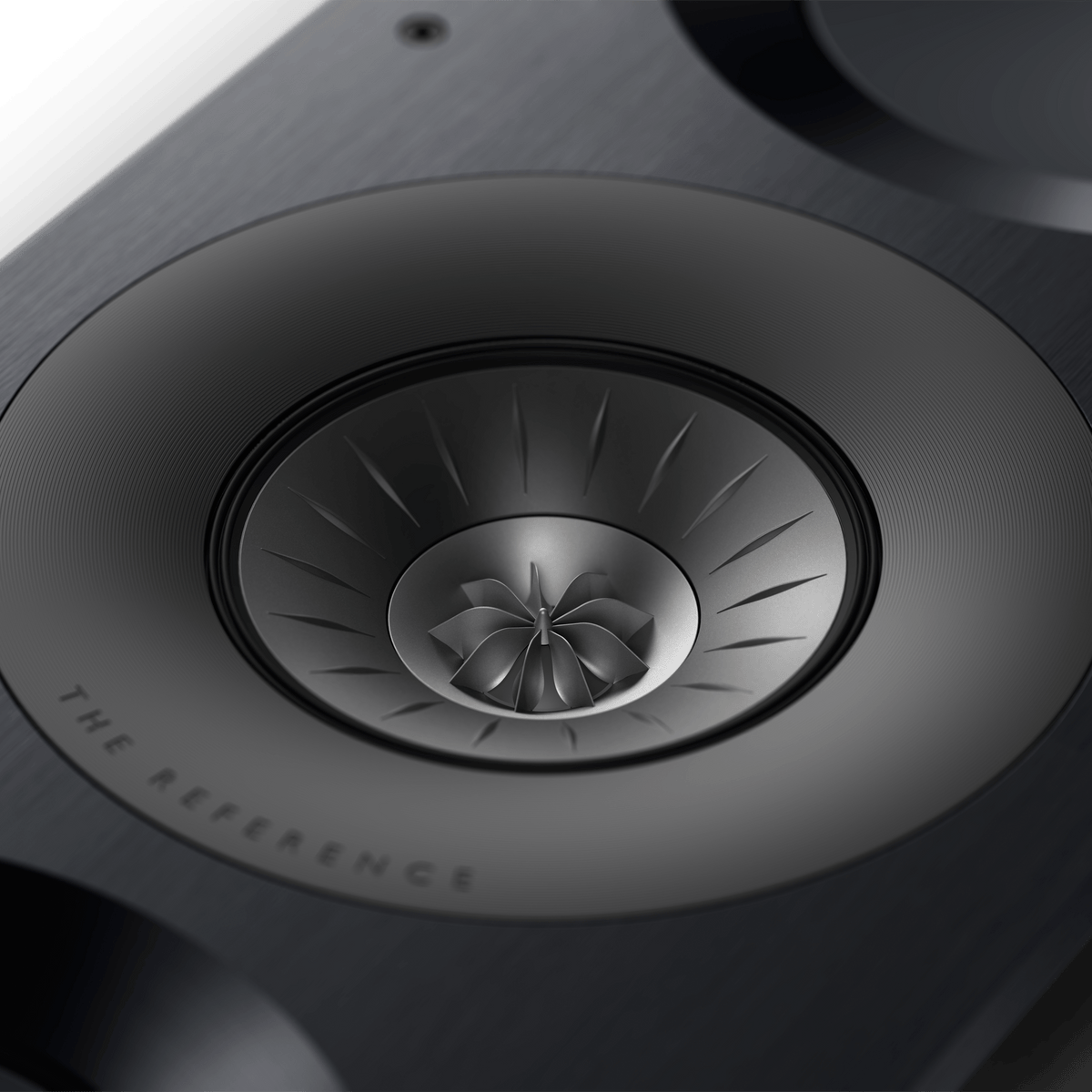

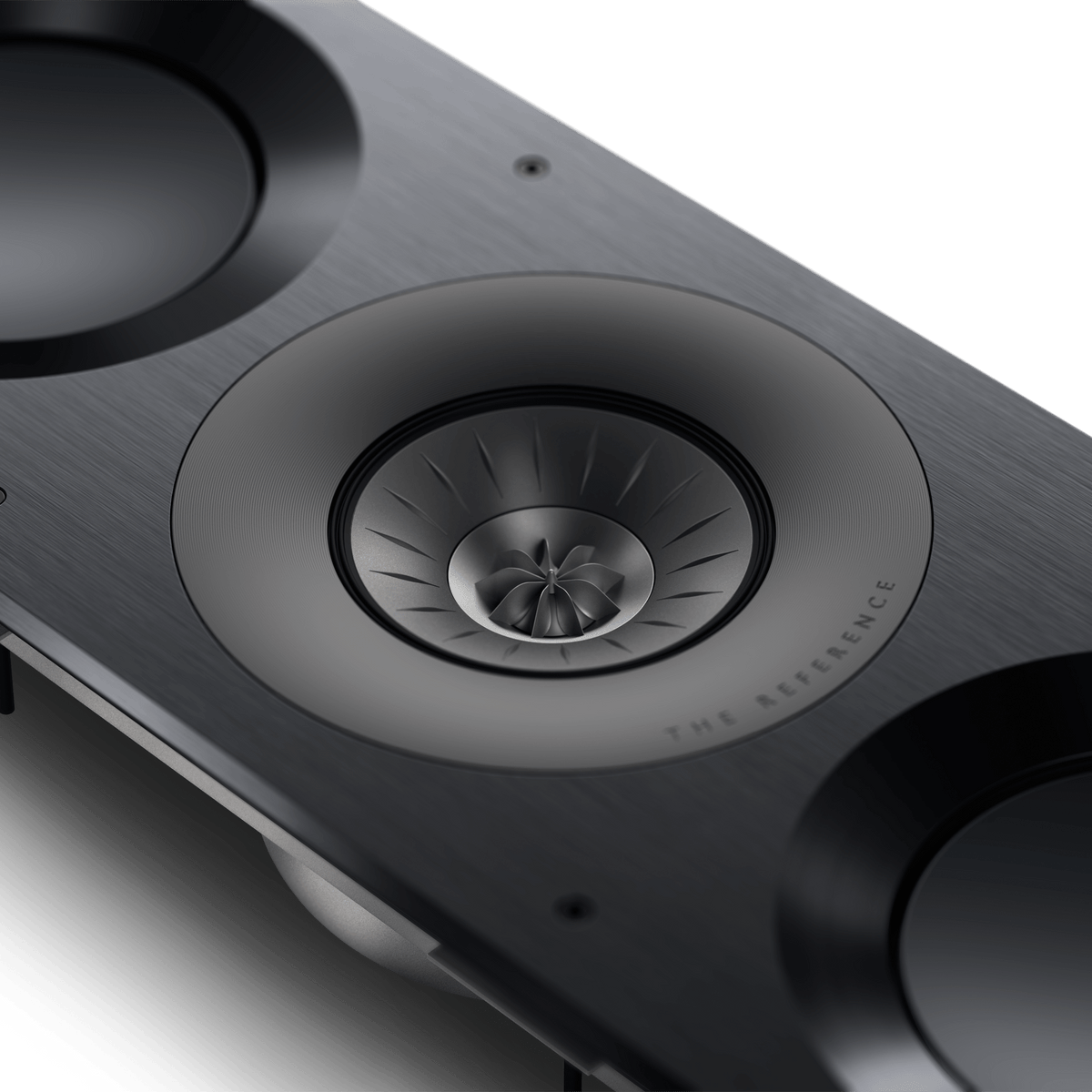

Uni-Q®

作為單點音源拓寬「最佳聆聽區域」，使聲音更均勻地擴散延展。

時尚顏色

提供鋁黑／灰色、絲狀飾面黑色鋁合金前障板，以及灰色 Uni-Q 同軸共點單元。

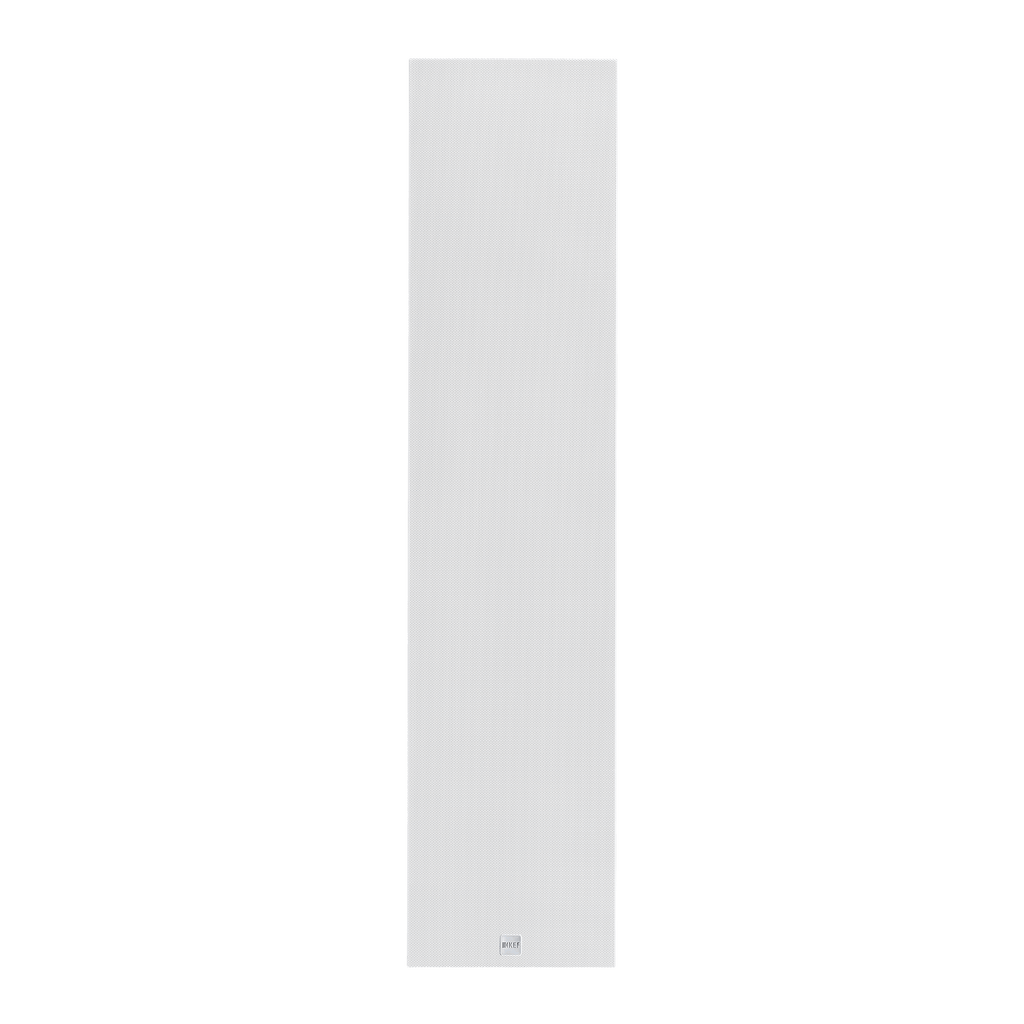

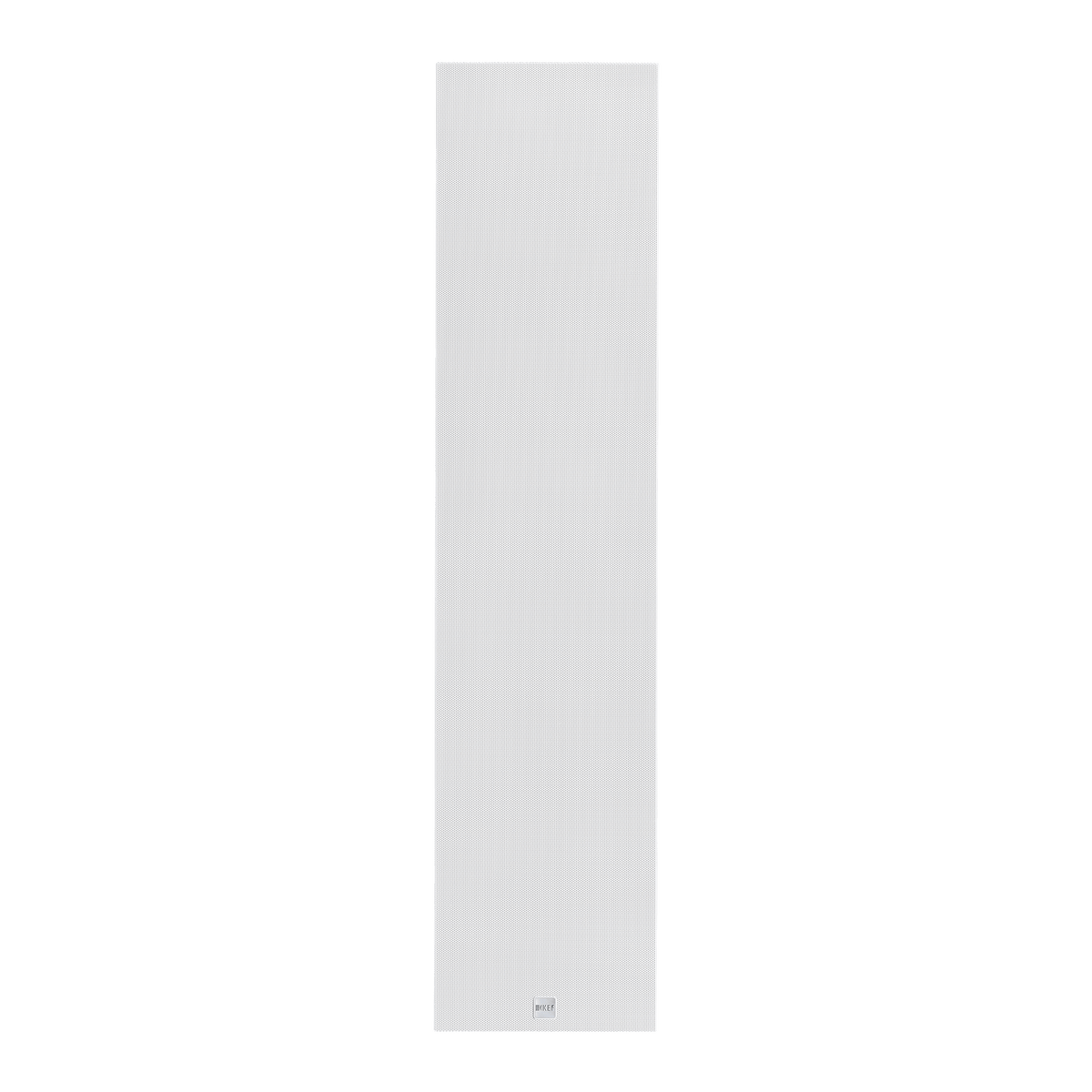

隱密式設計，聲音自然流露

可噴漆磁性網罩及自由選配黑色織物網罩，讓揚聲器悄悄完美融入周遭環境。

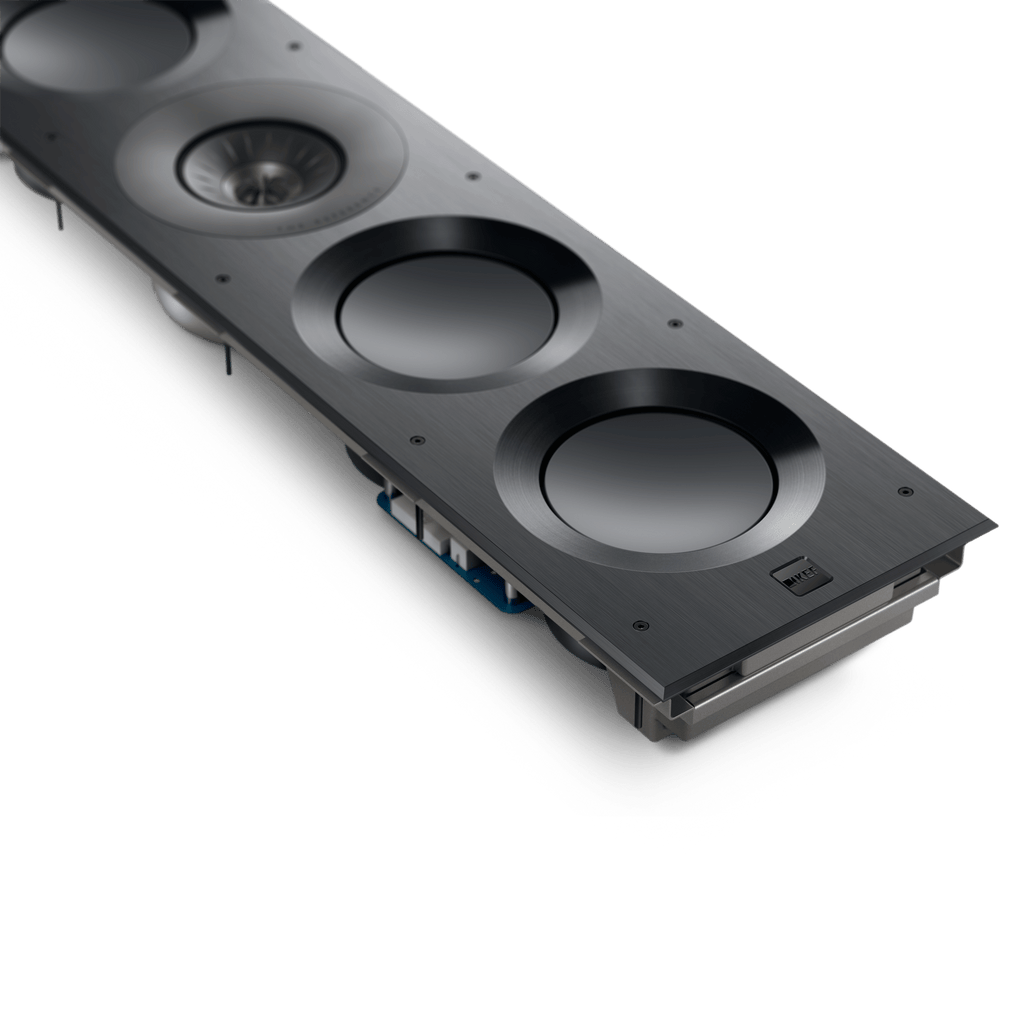

完美呈現每個細節

以精工打造的 11 毫米厚鋁合金前障板，專為吸收振動所設計，成為讓強力驅動單元發揮極限的穩固平台。

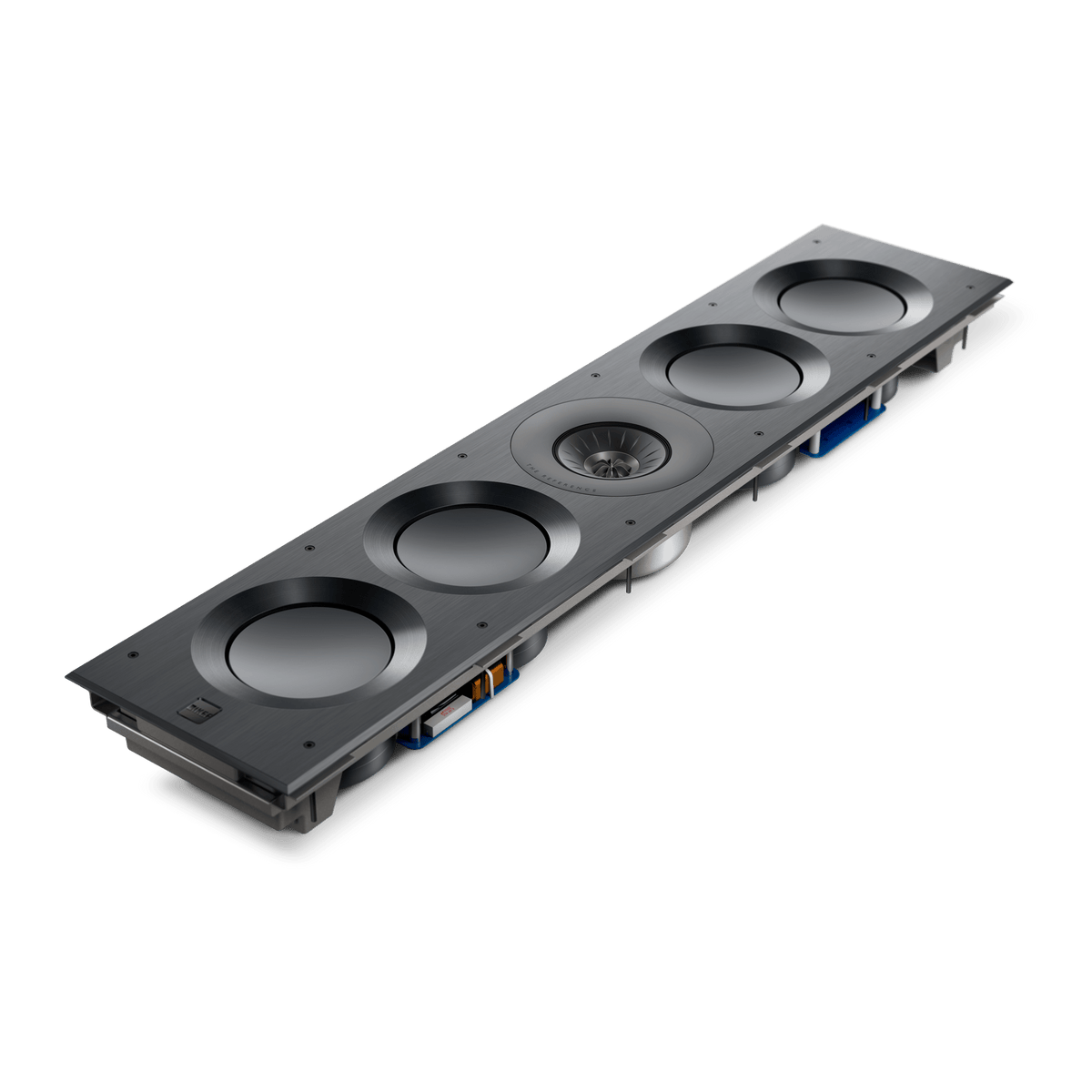

全方位檢視
透過 360 度互動旋轉功能，欣賞 Ci5160REFM-THX 悉心設計的細節，享受與聲音表現同樣出色的外型。
*Actual product colour may vary from the AR version shown.
**This feature is not supported on Chrome for iOS devices.

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

詳細資訊

FEATURES

accordion open

規格

accordion open
阻抗
4Ω
靈敏度 (2.83V/1m)
92dB
頻率響應 (±6dB)
40 - 28kHz
頻率範圍 (-10dB)
32 - 45kHz
覆蓋區域
150°
分頻點
600Hz, 3kHz
驅動單元
低音: 4 x 160mm (6.5 in.)
中音: 125mm (5.25 in.) Uni-Q 同軸共點單元
高音: 25mm (1 in.) MAT 通風鋁製圓頂
建議輸出功率
50 - 500 W
建議高通濾波 (Hz)
35Hz - 80Hz
產品外部尺寸 (H x W x D)
1070 x 230 x 105.7毫米 (42.13 x 9.06 x 4.16in.)
圖樣尺寸 (H X W)
1052 x 209毫米 (41.42 x 8.23吋)
淨重
21.7kg (47.8磅)
表面安裝深度
99毫米 (3.9吋)
適配框架
RIF5160L
最佳背部容積 (L)
90
最小背部容積 (L)
40
最高聲壓 (dB)
116dB
專業認證
THX® Certified Dominus
安裝厚度 (最大)
40 毫米(1.58 英寸)
安裝厚度 (最小)
6 毫米(0.24 英寸)
備註

1 Metamaterial Absorption Technology 是一項與 Acoustic Metamaterials Group 聯手研發的頂尖技術。
鑒於持續的研發，KEF 保留修訂或變更規格的權利。E&OE。 THX、THX logo 和 Ultra 為 THX Ltd 所擁有之商標，THX 和 THX logo 於美國登記註冊，保留所有權利。
