      Heard but not seen, with unprecedented value and performance.

      KEF's E series of architectural speakers is designed and manufactured to the same exacting standards as all KEF's architectural offerings and features KEF's famed Uni-Q driver technology.

      Ci130ER

      Heard but not seen, with unprecedented value and performance, KEF's E series of architectural speakers is designed and manufactured to the same exacting standards as all KEF's architectural offerings and features KEF's famed Uni-Q driver technology.

      KEF's Uni-Q driver enables the mid-range and tweeter to act as a single point source. This patented technology allows the listener to sit anywhere in the room and still enjoy KEF's world-renowned sound and clarity without having to be positioned in the narrow "sweet-spot" found with conventional speaker designs.

      The E Series also features KEF's Ultra-Thin Bezel (UTB) technology which offers the thinnest possible visible rim around the speaker assembly. The bezel and grill can be painted to match the interior décor.

      All KEF Ci architectural speakers, including the speakers in the E Series, are manufactured to Weather Resistant Construction standards: The grilles are coated via a proprietary process, the speakers include moisture-resistant terminations and finish materials, and the plastics are UV protected, allowing you to safely use these speakers in applications such as bathroom and kitchen.

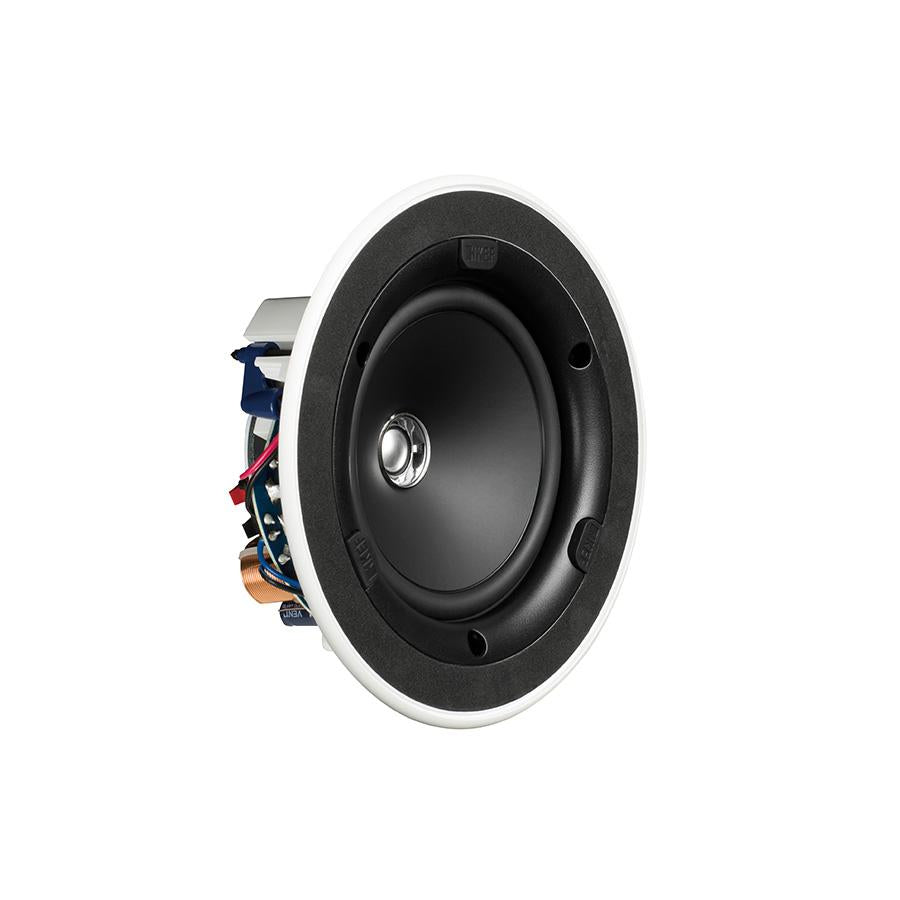

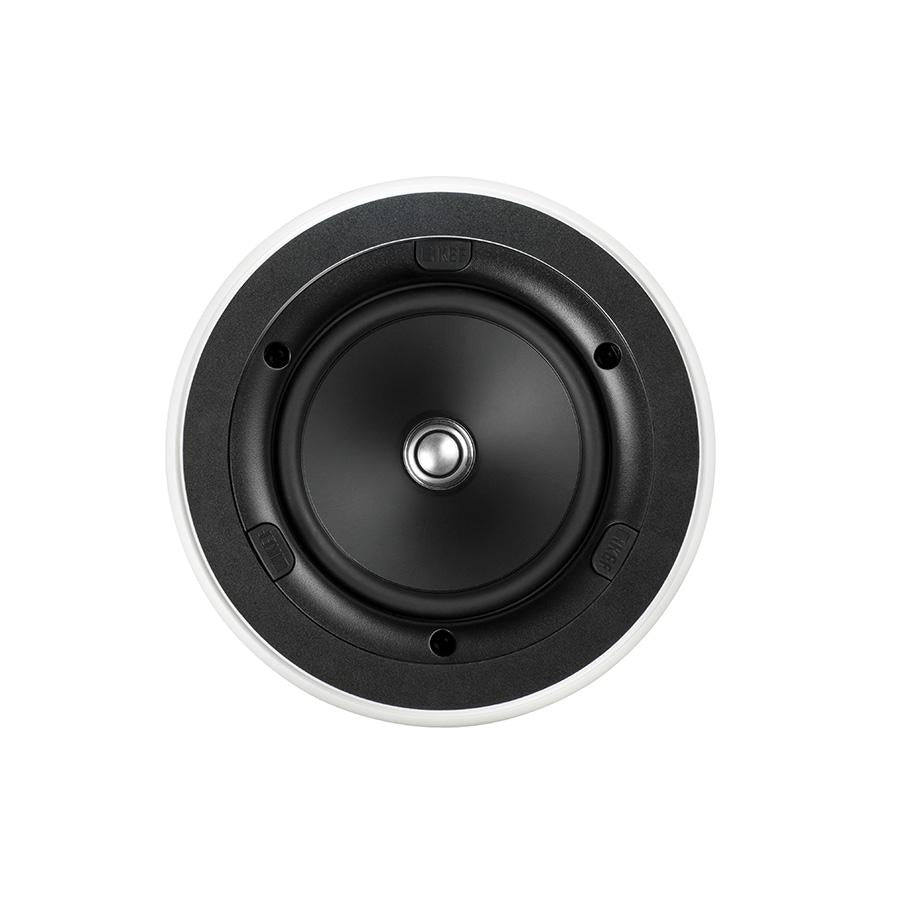

      Grille Off

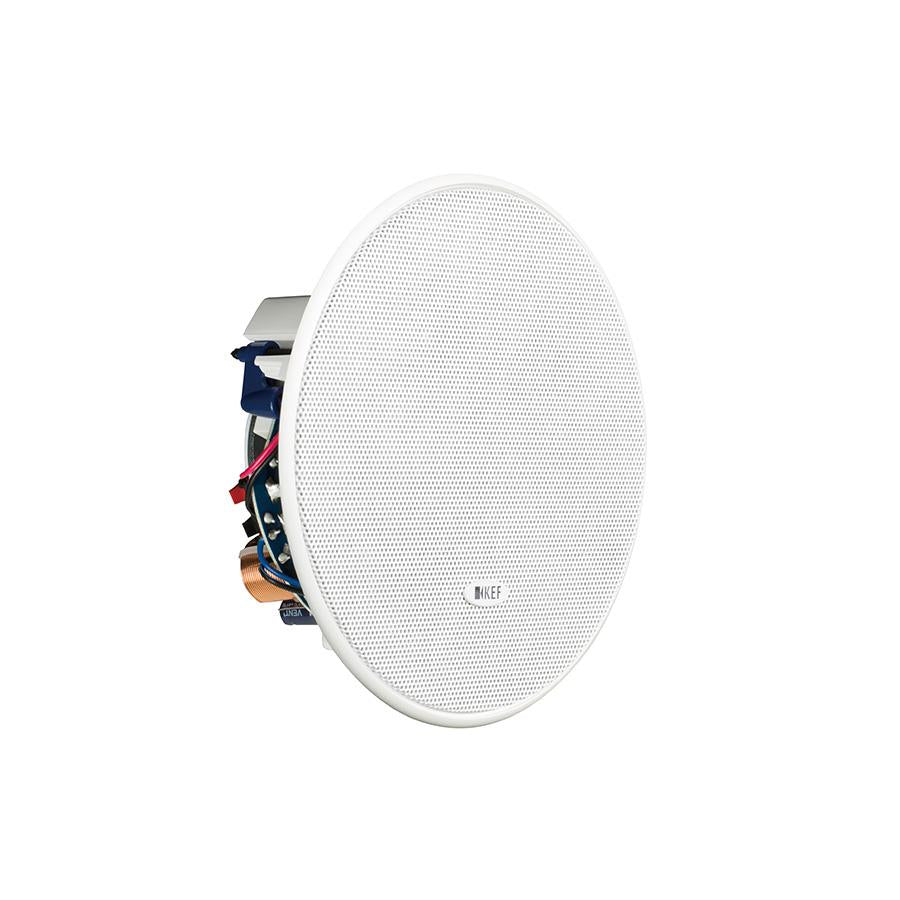

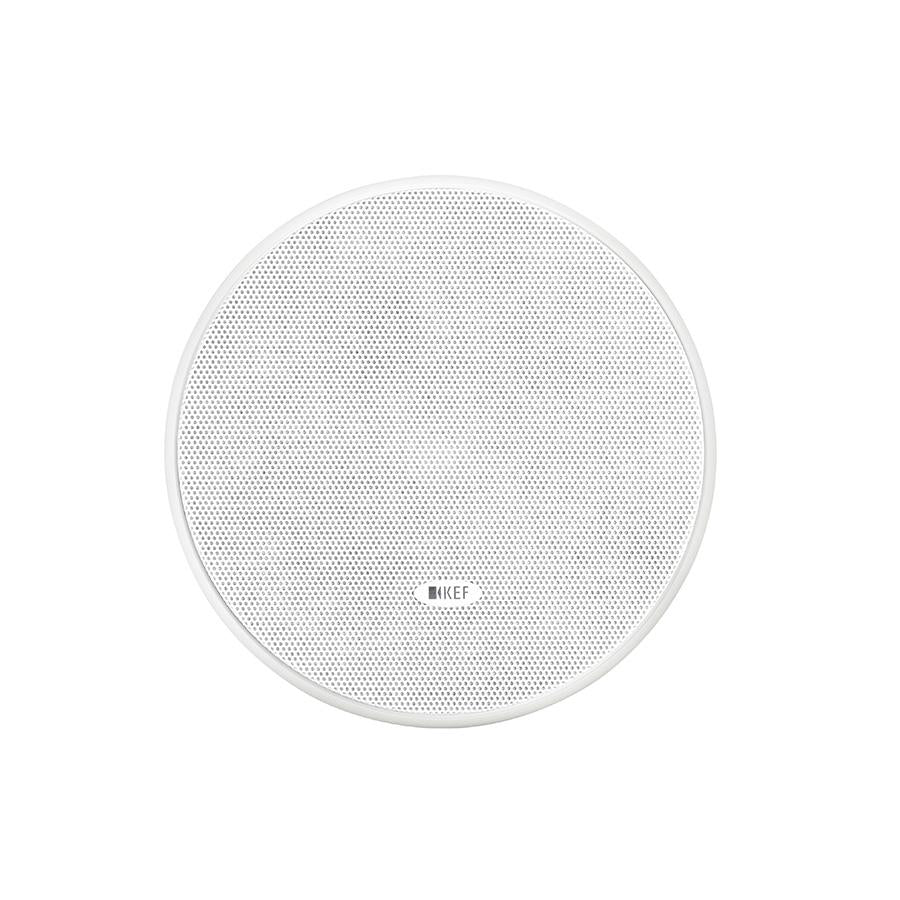

      Grille On

      Key Features

      • UTB™ Ultra Thin Bezel
      • 130mm (5.25in.) Uni-Q driver array
      • 16mm (0.6in.) Aluminium dome tweeter
      • Weather Resistant Construction
      • Magnetic Grille

      SPECIFICATIONS

      The Details

      Specifications

      NOMINAL IMPEDANCE

      8 Ohms



      SENSITIVITY

      87dB (2.83V/ 1m)



      FREQUENCY RESPONSE

      52Hz - 20kHz (+/-6dB) open-backed




      CROSSOVER FREQUENCY

      2.8kHz





      DRIVE UNITS

      LF: 130mm (5.25in.)
      HF: 16mm (0.6in.)

      RECOMMENDED AMPLIFIER POWER

      10-80W



      PRODUCT EXTERNAL DIMENSIONS

      Diameter : 193.4mm (7.61in.)
      Depth : 81mm (3.19n.)



      CUT-OUT DIMENSIONS

      Diameter : 158mm (6.22in.)



      MOUNTING THICKNESS

      Ceiling Thickness (Maximum): 33mm (1.3 in.)
      Ceiling Thickness (Minimum): 6mm (0.24 in.)



      MOUNTING DEPTH FROM SURFACE

      77.5mm (3.05in.)



      OPTIONAL ROUGH IN FRAME

      RIF130R



      OPTIONAL REAR ENCLOSURE

      RNC130R

      Please visit our Ci Software Download page for more details.
