Features KEF’s patented Uni-Q driver array
The stylish Ci130QR's thin bezel and narrow rim allow for flawless visual integration into your ceiling. KEF's patented Uni-Q driver spreads sound over a wider area enabling you to use less speakers and still experience an even sound-stage.

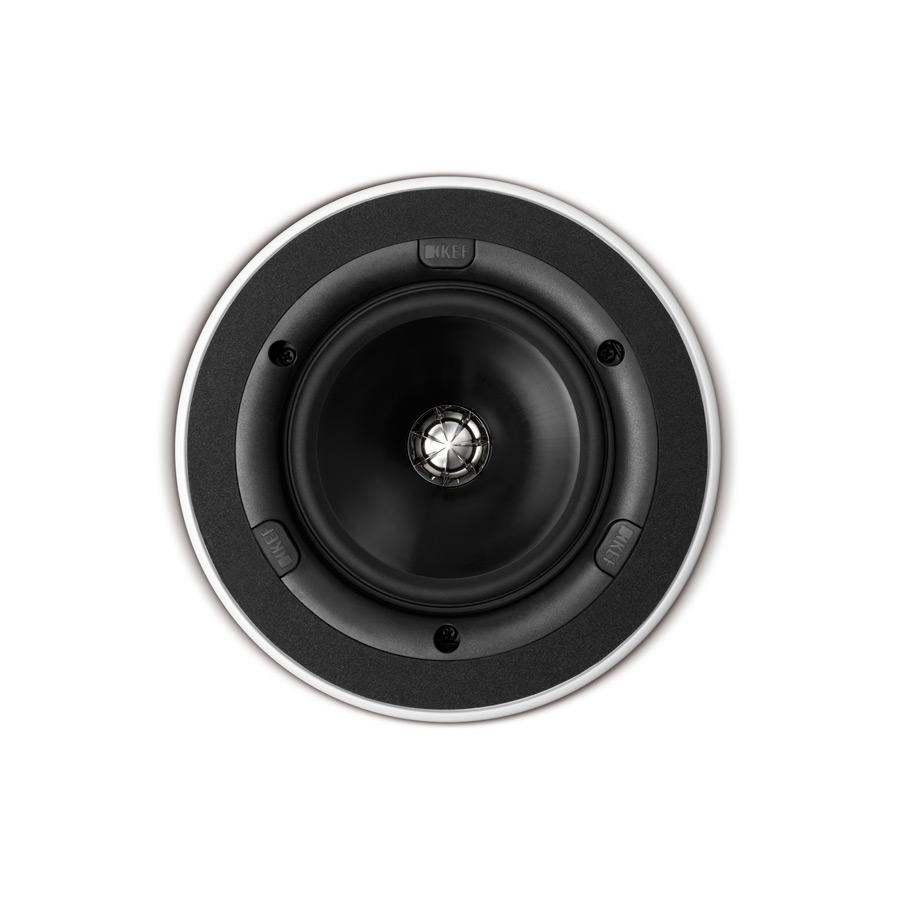

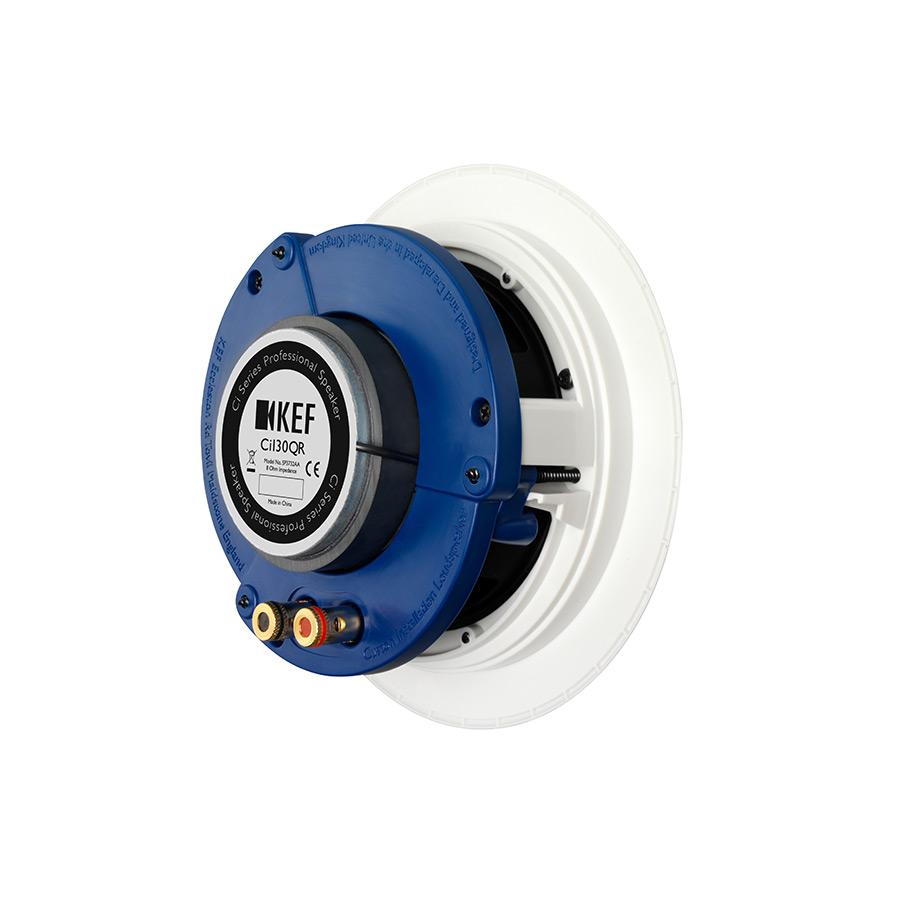

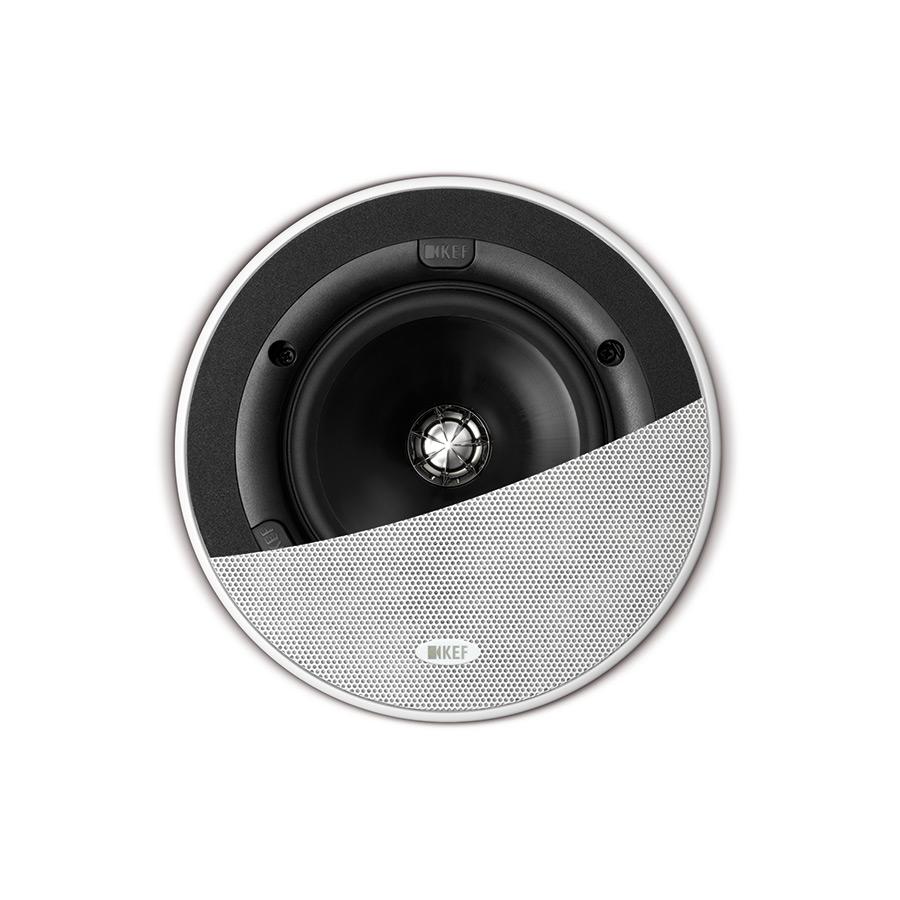

Ci130QR
Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Together with the discreet Ultra Thin Bezel (UTB) design, offering the slimmest possible visible rim around the speaker, the Ci Q Series range gives you tremendous freedom to position the speakers where you please.
The Details
FEATURES
UTB™ Ultra Thin Bezel
130mm (5.25in.) Uni-Q driver array
19mm (0.75in.) Aluminium dome tweeter and 'tangerine' waveguide
Gold plated spring loaded binding posts
130mm (5.25in.) Uni-Q driver array
19mm (0.75in.) Aluminium dome tweeter and 'tangerine' waveguide
Gold plated spring loaded binding posts
SPECIFICATIONS
Nominal Impedance
8 Ohm
Sensitivity
87dB (2.83V/ 1m)
Crossover Frequencies
3.8kHz
Frequency Response
45Hz - 34kHz (±6dB) open backed
Drive Units
LF: 130mm (5.25in.)
HF: 19mm (0.75in.)
HF: 19mm (0.75in.)
Recommended Amplifier Power
10 - 100W
Product External Dimension (H X W X D)
Diameter : 193.4mm (7.61in.)
Depth : 83mm (3.28in.)
Depth : 83mm (3.28in.)
Cut-Out Dimensions (H X W)
Diameter : 158mm (6.22in.)
Mounting Thickness
Ceiling Thickness (Maximum): 33mm (1.3 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Mounting Depth From Surface
Product only: 77.8mm (3.06in.)
Optional Rough In Frame
RIF130R
Net Weight
1.35 kg (2.97 lbs)
Unit Measurement
Piece
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
Please visit our Ci Software Download page for more details.
