Ci160.2CS

  • Sale
  • Regular price HK$0

Shape
Woofer Size
Mounting Depth

Frequently bought together

    =

      Features KEF’s patented Uni-Q driver array

      Ci160.2CS in-wall speaker allows sound to disperse more evenly throughout the room. The extremely shallow mounting depth allows you to install the Ci160.2CS where other speakers in its class won’t fit.

      Ci160.2CS

      Ci-C Series offers an ideal introduction to the world of custom installation speakers. Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Weather resistant treatment protects the speakers from moisture and UV light. Ultra-Thin Bezels that are barely visible at the edge of exceptionally flat grilles mean the C Series fits unobtrusively into your home.

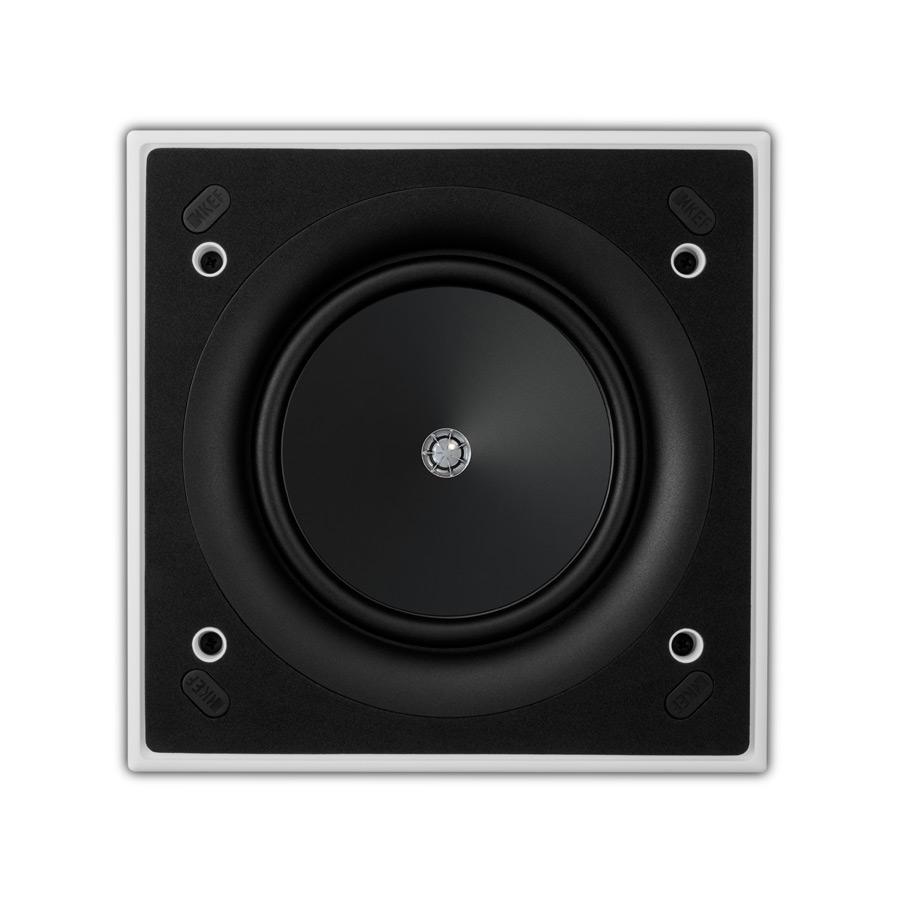

      Grille Off

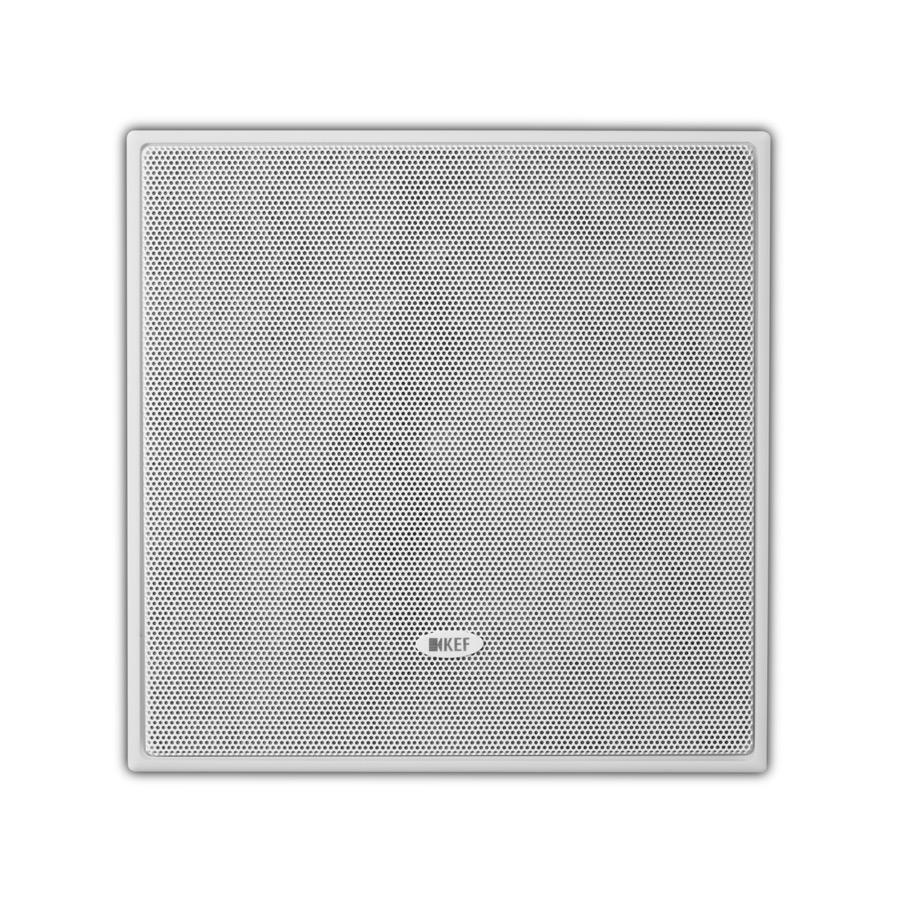

      Grille On

      Key Features

      • UTB™ Ultra-Thin Bezel
      • 160mm (6.5in.) Uni-Q driver
      • 16mm (0.6in.) Aluminium dome tweeter with tangerine waveguide
      • Magnetic grille
      • Paintable grille and bezel
      • Weather Resistant
      • IP64 certified

      SPECIFICATIONS

      The Details

      Specifications

      NOMINAL IMPEDANCE

      8 Ohms



      SENSITIVITY

      89dB (2.83V/ 1m)



      FREQUENCY RESPONSE

      52Hz-20kHz (+/-6dB) open-backed



      CROSSOVER RESPONSE

      2.5kHz



      DRIVE UNITS

      LF: 160mm (6.5in.) Uni-Q
      HF: 16mm (0.6in.)



      RECOMMENDED AMPLIFIER POWER

      10-100W

      PRODUCT EXTERNAL DIMENSIONS (H X W X D)

      223 x 223 x 88.7 mm (8.78 x 8.78 x 3.49 in.)



      CUT-OUT DIMENSIONS (H X W)

      94 x 194 mm (7.64 x 7.64 in.)



      MOUNTING THICKNESS

      Ceiling Thickness (Maximum): 30mm (1.19 in.)
      Ceiling Thickness (Minimum): 3mm (0.12 in.)



      MOUNTING DEPTH FROM SURFACE

      84.5mm (3.33in.)



      OPTIONAL ROUGH IN FRAME

      RIF160S



      OPTIONAL REAR ENCLOSURE

      RNC160S

      Please visit our Ci Software Download page for more details.
