Architectural Speakers

Ci160QL

Frequently bought together

    =

      Features KEF’s patented Uni-Q driver array

      The exceptionally stylish Ci160QL rectangular loudspeaker's narrow rim allows for flawless integration into your wall or ceiling. The wide dispersion of KEF's amazing Uni-Q driver gives your room more sound coverage with fewer speakers.

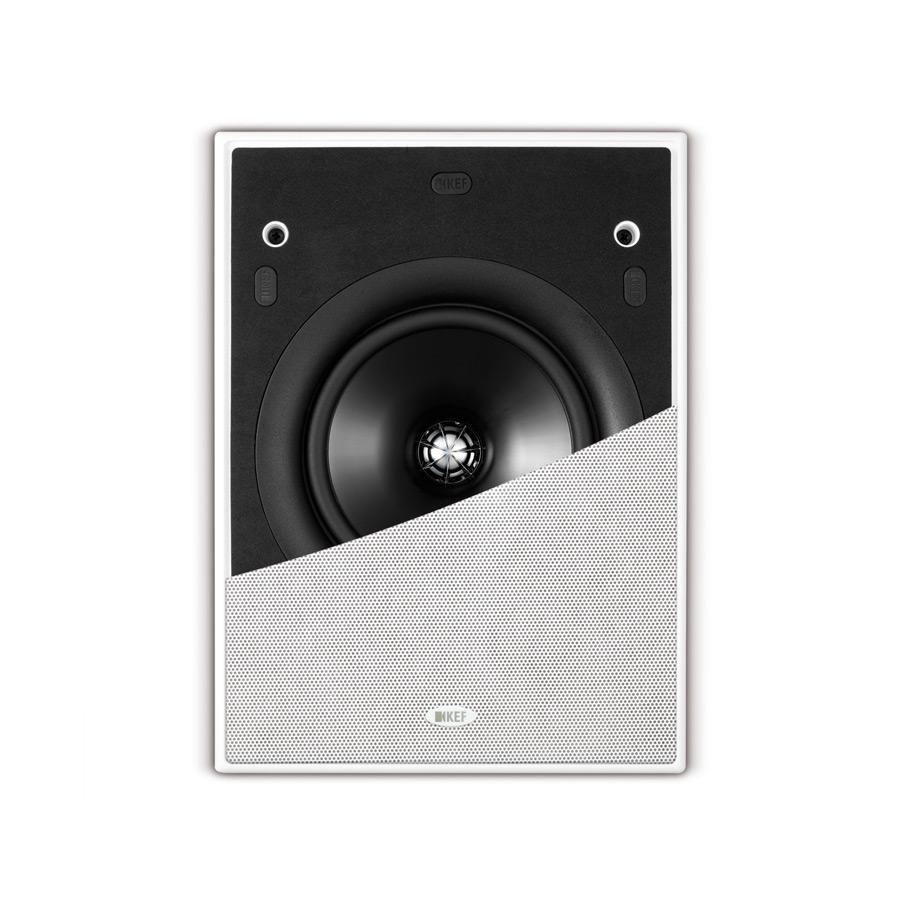

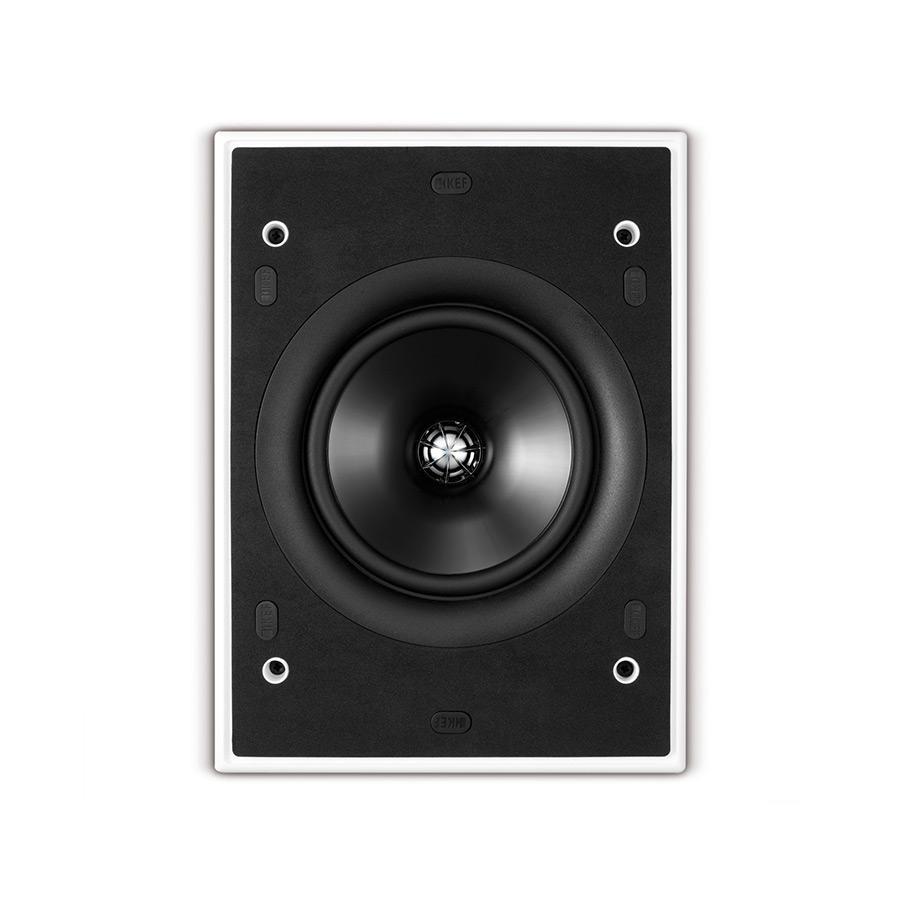

      Ci160QL

      Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Together with the discreet Ultra Thin Bezel (UTB) design, offering the slimmest possible visible rim around the speaker, the Ci Q Series range gives you tremendous freedom to position the speakers where you please.

      Fast and Easy to Install

      KEF's Ci loudspeaker design makes them so quick and easy to install that once the wire is run and the hole is cut in your wall or ceiling you can be listening to music in less than two minutes.
      The Details

      SPECIFICATIONS

      accordion open
      Nomimal  Impedance
      8 Ohm
      Sensitivity
      89dB (2.83V/ 1m)
      Crossover Frequencies
      3.0kHz
      Frequency Response
      38Hz - 34kHz (±6dB) open backed
      Drive Units
      LF: 160mm (6.5in.)
      HF: 19mm (0.75in.) Uni-Q
      Recommended Amplifier Power
      10 - 125W
      Product External Dimension (H X W X D)
      303 x 223 x 97.5 mm (11.93 x 8.78 x 3.84 in.)
      Cut-Out Dimensions (H X W)
      274 x 194 mm (10.79 x 7.64 in.)
      Mounting Thickness
      Ceiling Thickness (Maximum): 30mm (1.19 in.)
      Ceiling Thickness (Minimum): 3mm (0.12 in.)
      Mounting Depth From Surface
      91mm (3.58in.)
      Optional Rough In Frame
      RIF160L
      Optional Rear Enclosure
      RNC160L
      KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.

      Please visit our Ci Software Download page for more details.
