Architectural Speakers

Ci160TR

Frequently bought together

    =

      Features KEF’s patented Uni-Q driver array

      Requiring less than 36mm of mounting depth, the Ci160TR fits snugly in very narrow ceiling spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments and your music system.

      Ci160TR

      Boasting the latest incarnation of our formidable 4.5in. mid/bass T Series driver and powerful 1in. tweeter, the ultra-slim new T Series Ci speakers open up new possibilities for enjoying KEF’s uncompromised sound quality where space above the ceiling is at a premium. Requiring less than 36mm of mounting depth, the Ci160TR fits snugly in very narrow ceiling spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments or your music system.

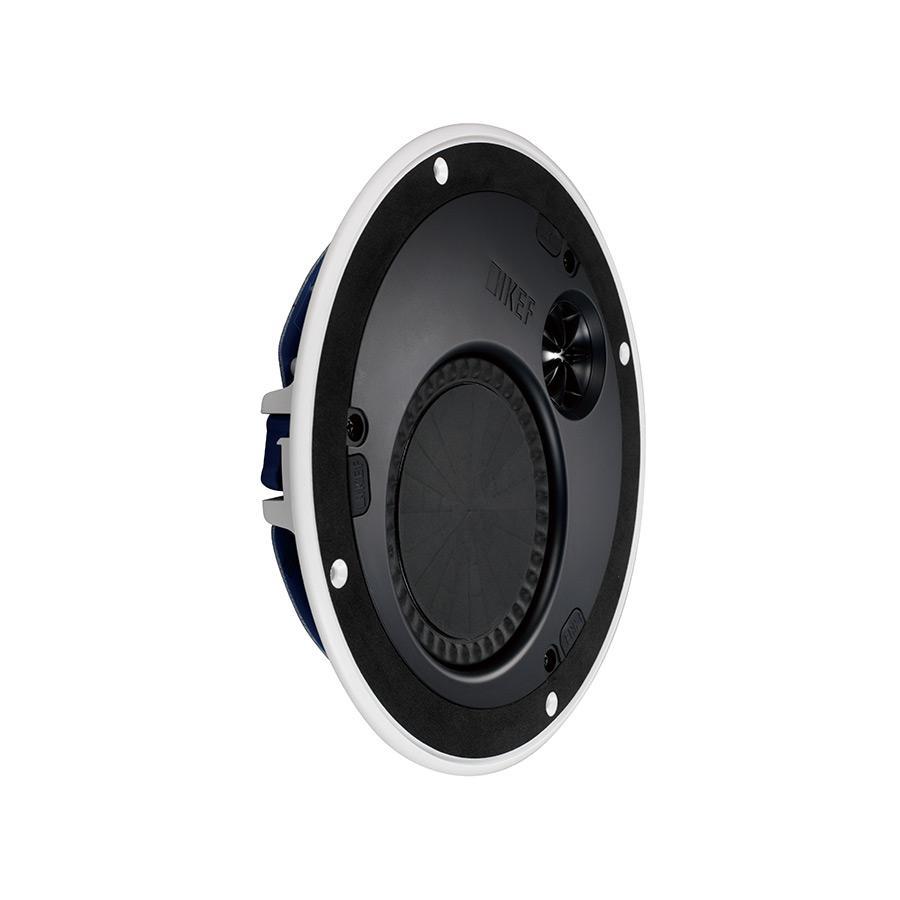

      Grille Off

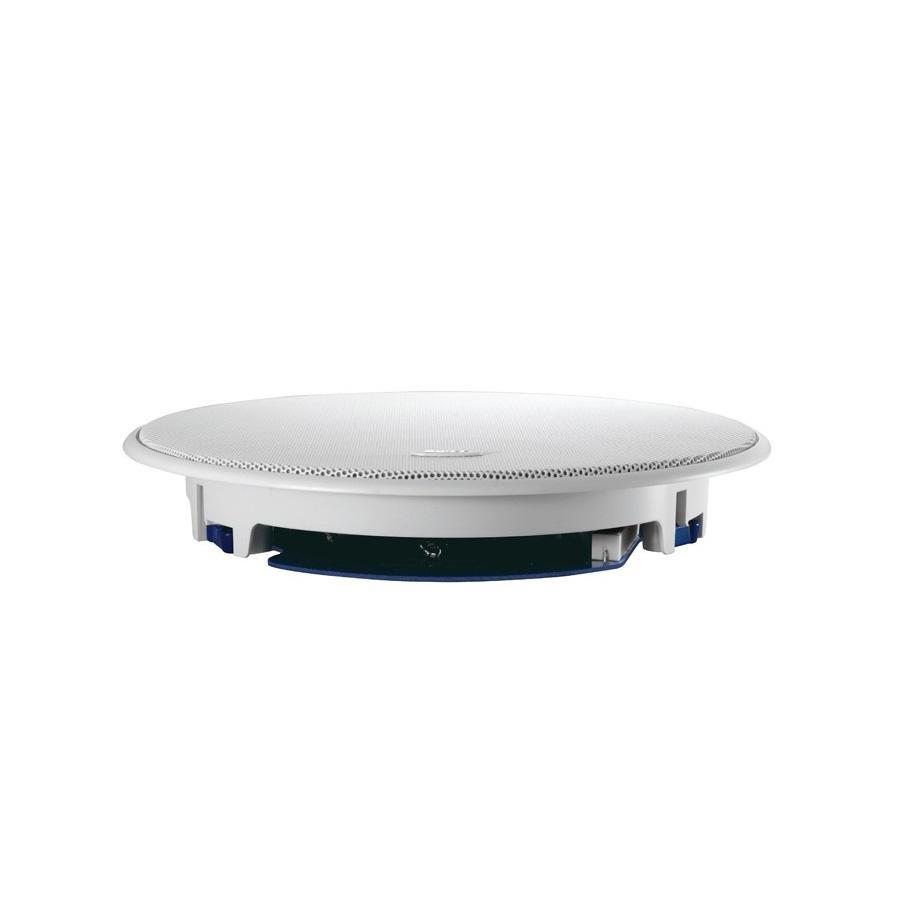

      Grille On
      The Details

      FEATURES

      accordion open
      Key Features
      <36mm mounting depth allows fitment to very restricted cavities
      Ultra-low profile LF unit with excellent bass extension.

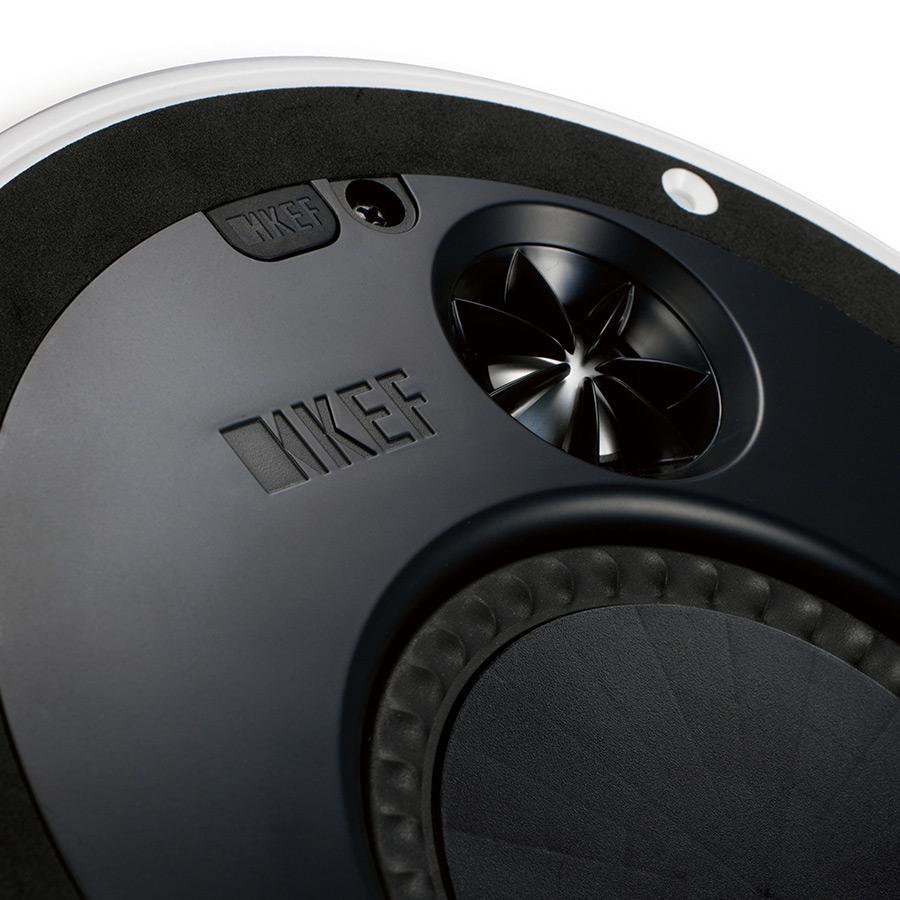

      Vented tweeter with KEF's unique 'tangerine' waveguide for natural HF response and wide, even dispersion.
      Rigid flat diaphragm assures clean upper bass and mid-range response.
      Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor.

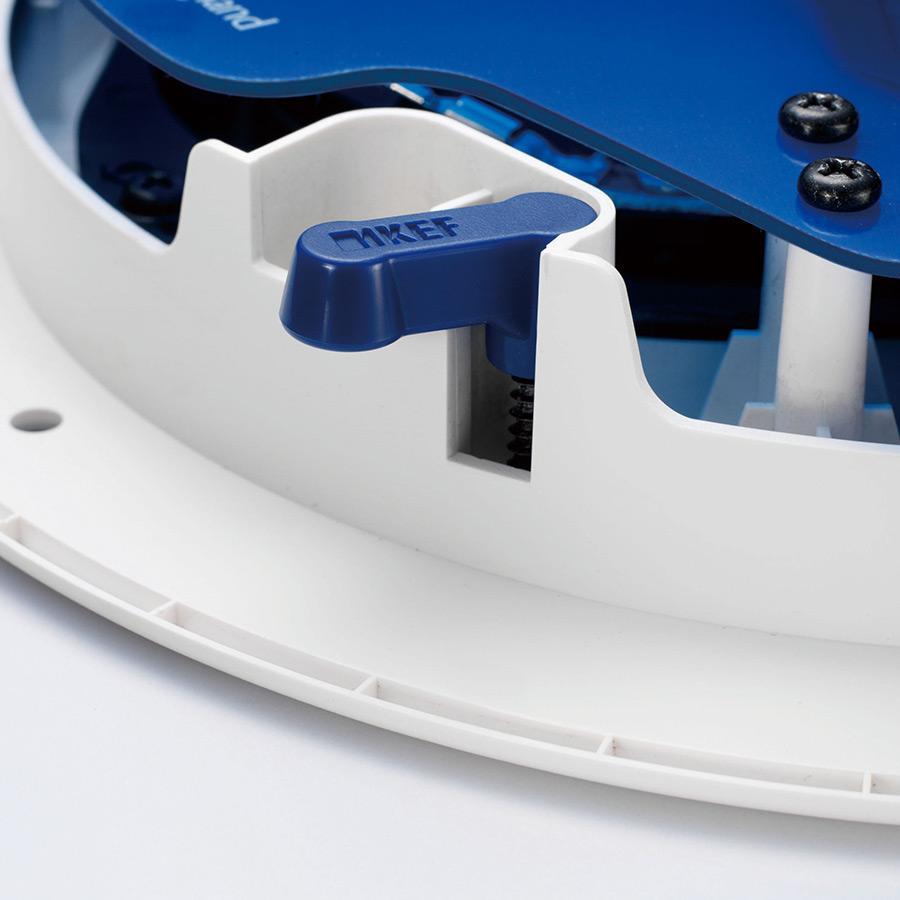

      Fast, versatile installation on virtually any surface via dogleg or direct screw fastening.

      SPECIFICATIONS

      accordion open
      Nominal Impedance
      8 Ohm
      Sensitivity
      87dB (2.83V/ 1m)
      Crossover Response
      1.7kHz
      Frequency Response
      110Hz - 24kHz (±6dB) open backed
      Drive Units
      LF: 115mm (4.5 in.) dual layer MF
      HF: 25mm (1 in.) aluminium HF
      Recommended Amplifier Power
      10-100W
      Product External Dimension (H X W X D)
      Diameter: 234.6mm (9.24 in.)
      Depth: 40mm (1.57 in.)
      Cut-Out Dimensions (h X W)
      196mm (7.71 in.)
      Mounting Thickness
      Ceiling Thickness (Maximum): 26mm (1.03 in.)
      Ceiling Thickness (Minimum): 9mm (0.36 in.)
      Mounting Depth From Surface
      36mm (1.42 in.)
      Optional Rough In Frame
      RIF160R
      Optional Rear Enclosure
      RNC160R
      KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
