Features KEF’s patented Uni-Q driver array

Boasting the latest incarnation of our formidable 4.5in. mid/bass T Series driver and powerful 1in. tweeter, the ultra-slim Ci-T Series speakers open up new possibilities for enjoying KEF's uncompromised sound quality where installation space is at a premium.

Enquiry

Where to Buy

Ci160TS

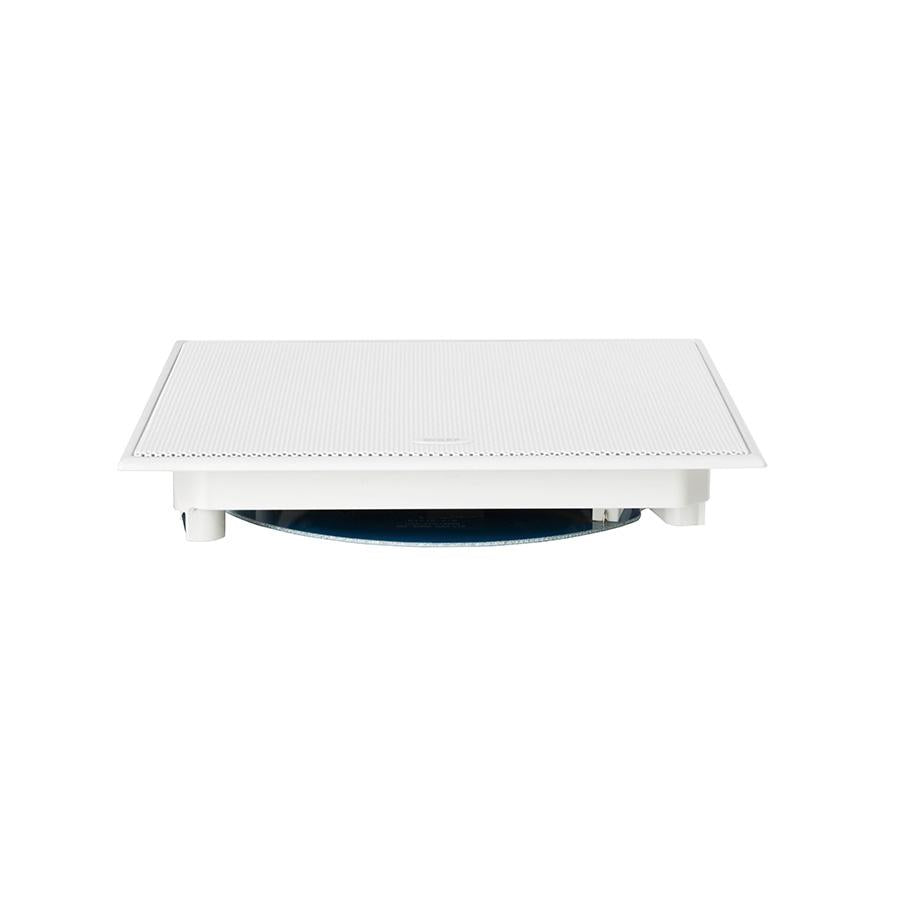

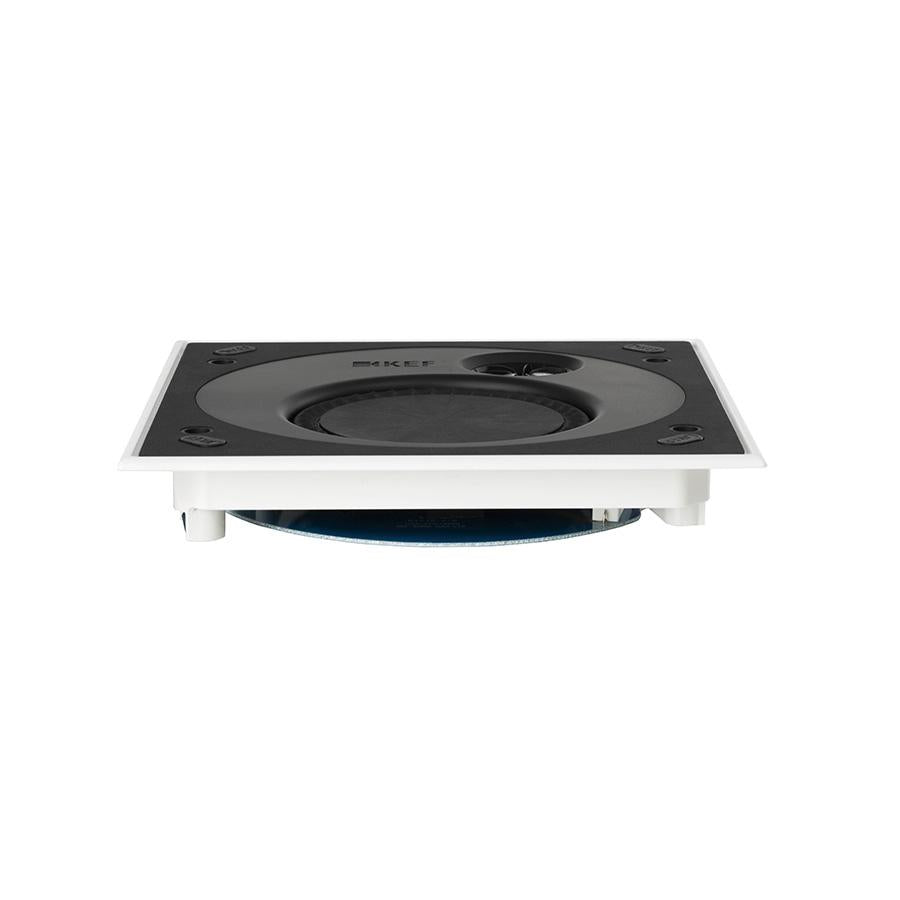

Boasting the latest incarnation of our formidable 4.5in. mid/bass T Series driver and powerful 1in. tweeter, the ultra-slim Ci-T Series speakers open up new possibilities for enjoying KEF's uncompromised sound quality where installation space is at a premium. Requiring less than 36mm of mounting depth, the Ci160TS fits snugly in very narrow ceiling or wall spaces and is therefore specified for demanding applications such as today's luxury high-rise apartments or your music system.

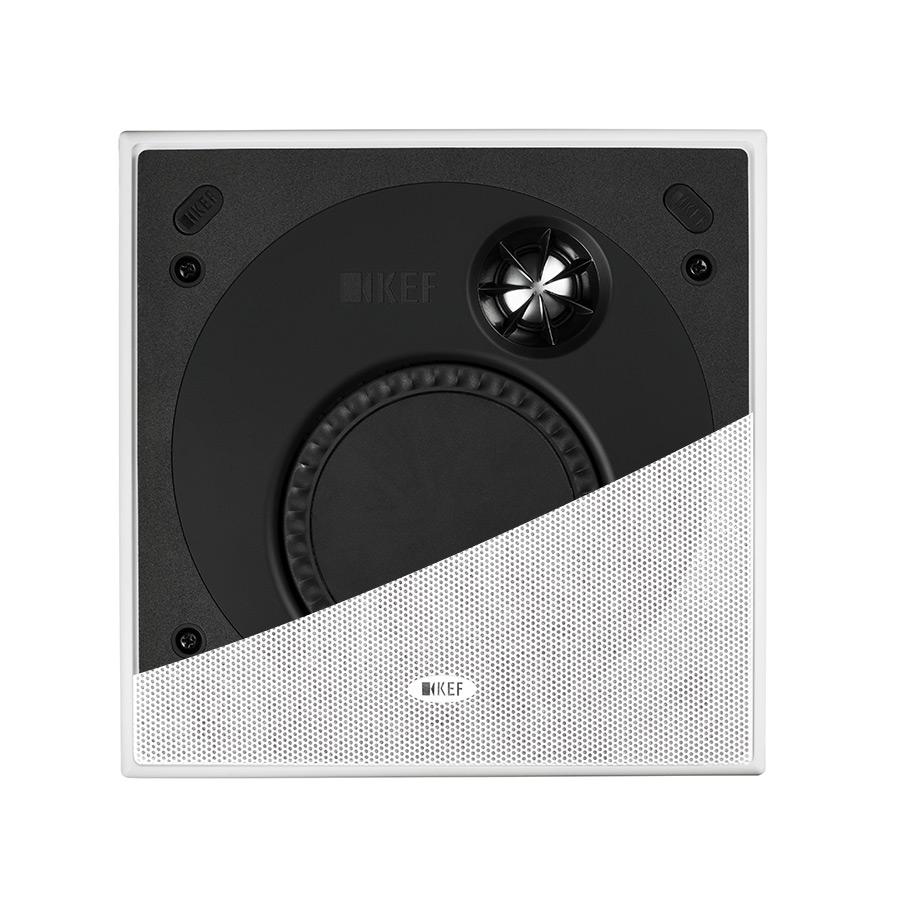

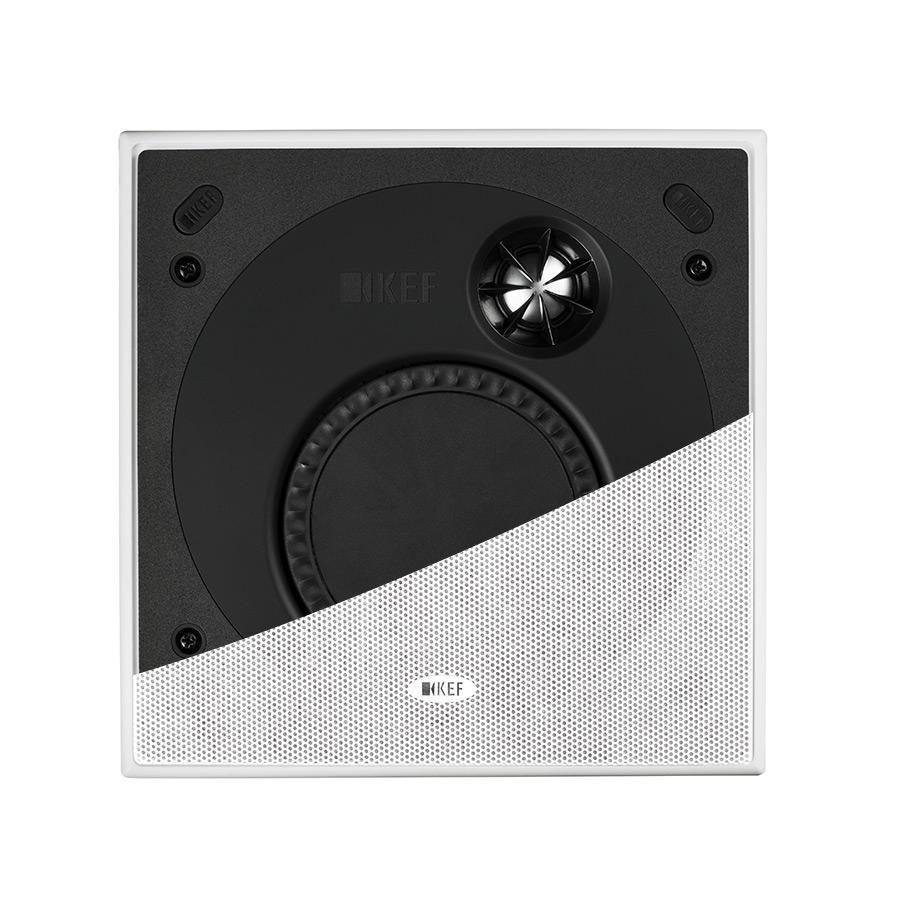

Grille OnGrille Off

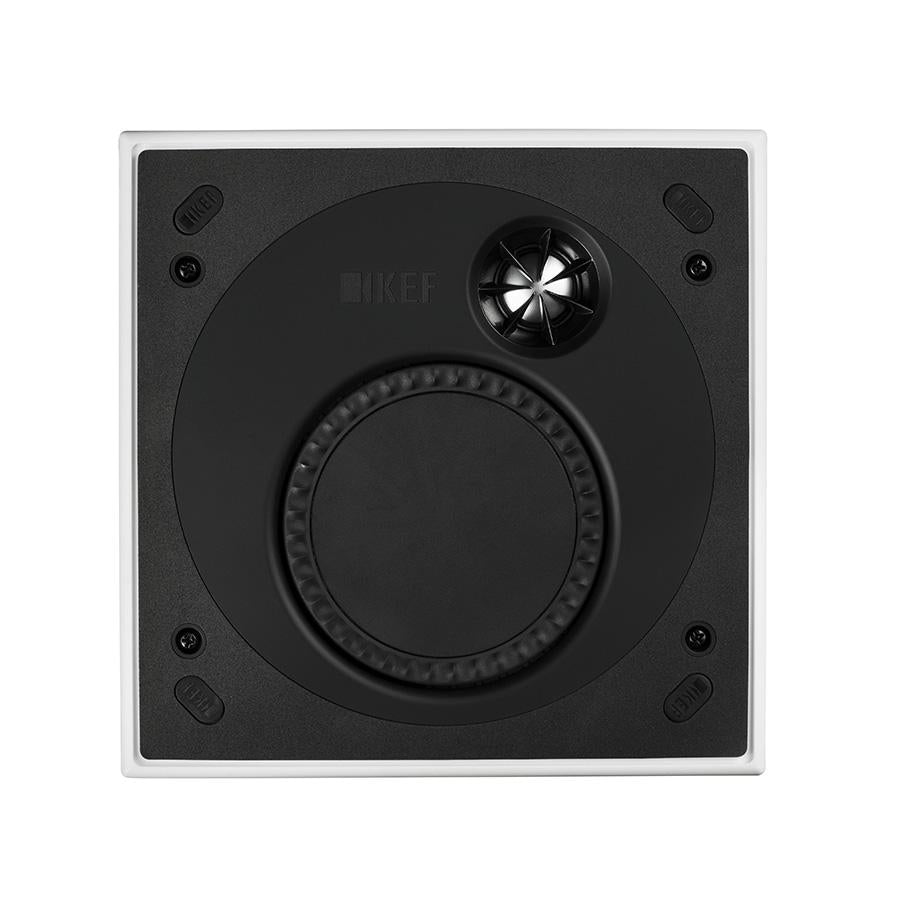

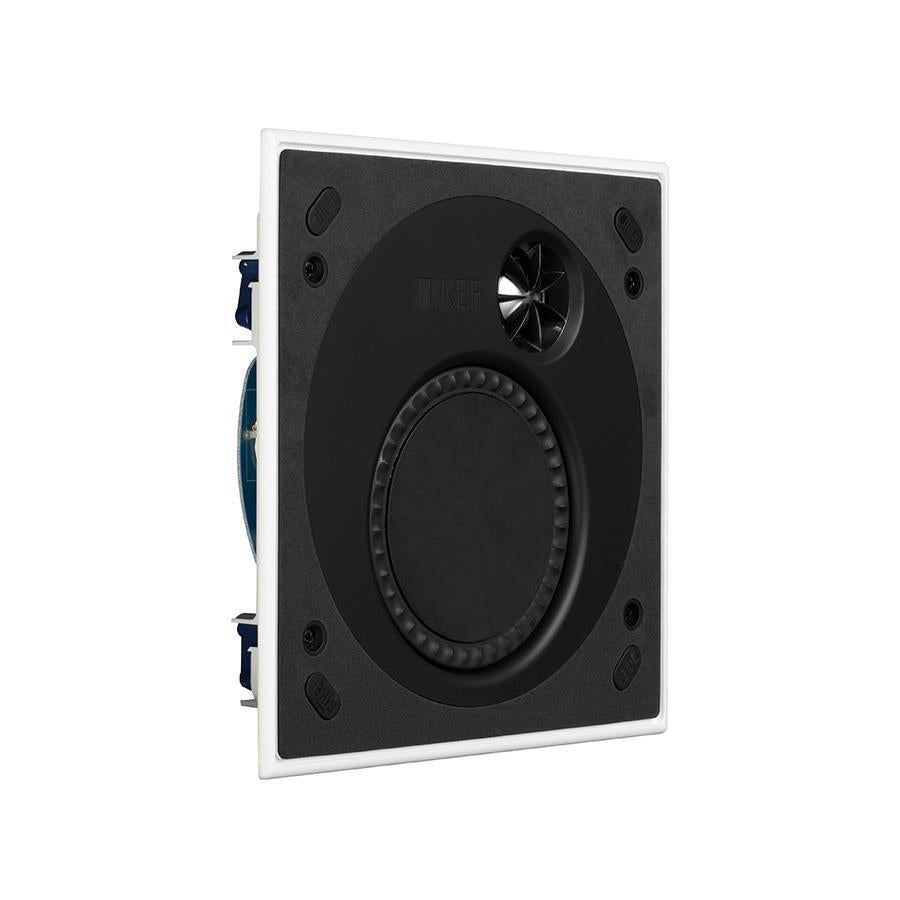

Grille Off

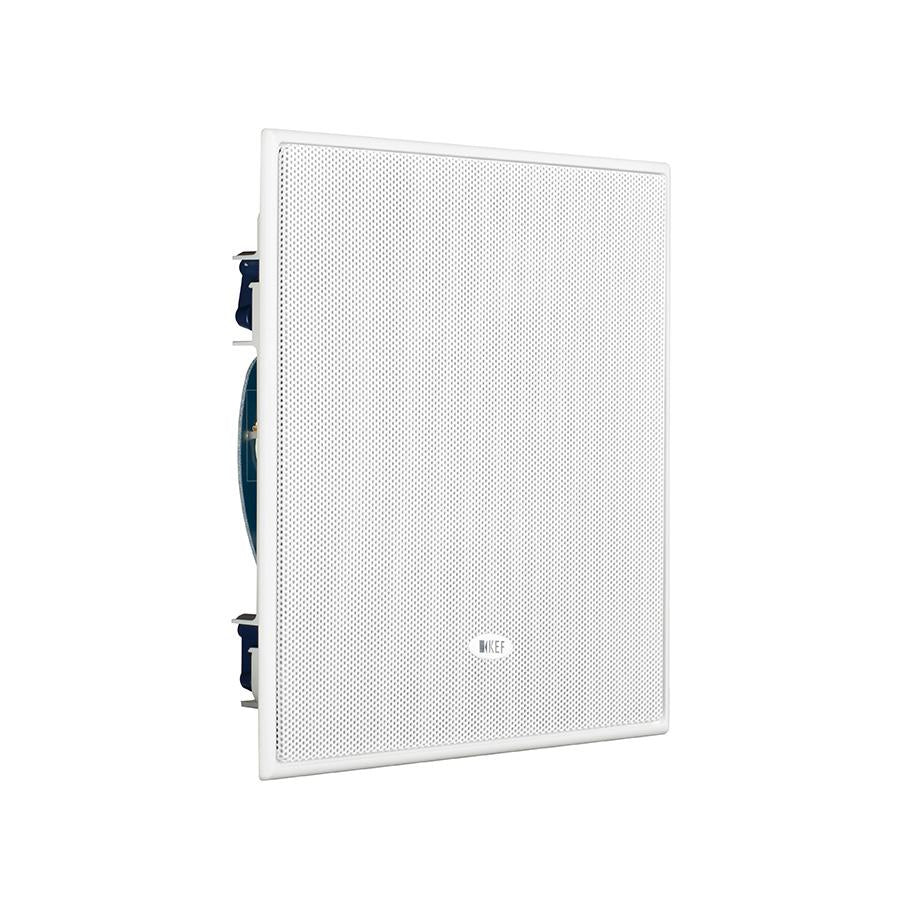

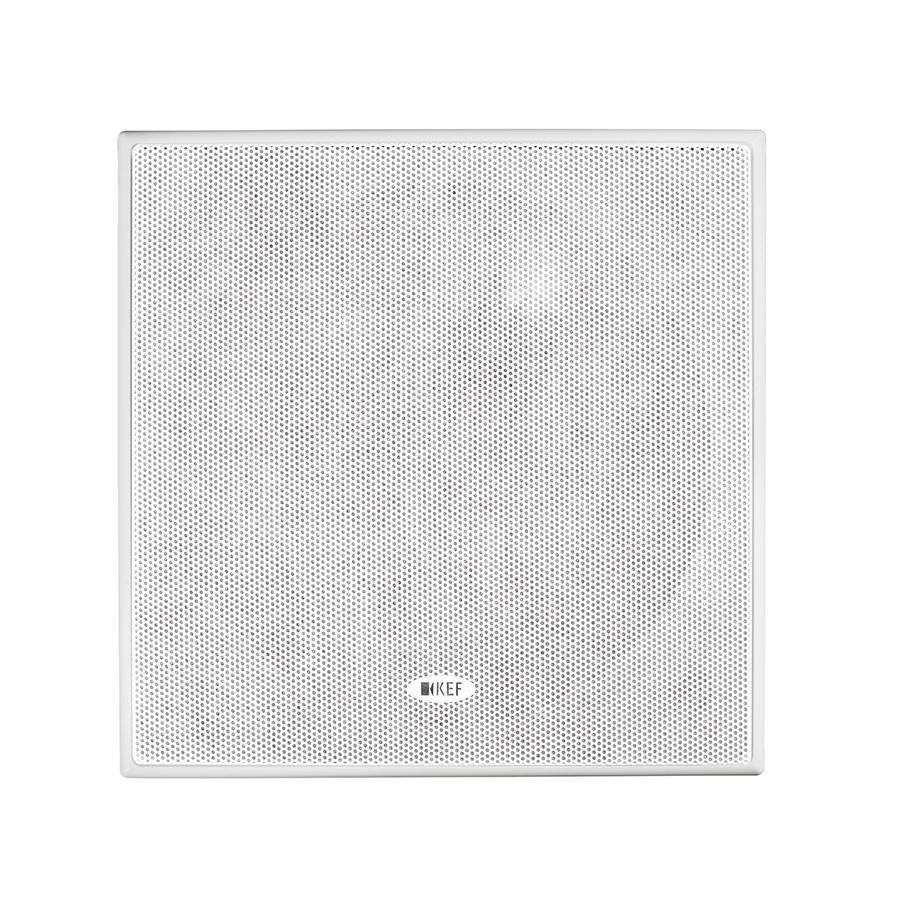

Grille On

The Details

FEATURES

<36mm mounting depth allows fitment to very restricted cavities
Ultra-low profile LF unit with excellent bass extension
Vented tweeter with KEF's unique 'tangerine' waveguide for natural HF response and wide, even dispersion
Rigid flat diaphragm assures clean upper bass and mid-range response
Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor
Fast, versatile installation on virtually any surface via dogleg

SPECIFICATIONS

Nominal Impedance

8 Ohm

Sensitivity

87dB (2.83V/ 1m)

Crossover Frequencies

1.7kHz

Frequency Response

110Hz - 24Hz (+/-6dB) open-backed

Drive Units

LF: 115mm (4.5in. Dual layer)
HF: 25mm (1in.)

Recommended Amplifier Power

10-100W

Product External Dimension (H x W x D)

Diameter : 222.8x222.8 mm (8.77 x 8.77 in.)
Depth : 41mm (1.61in.)

Cut-Out Dimensions (H x W)

194 x 194 mm (7.64 x 7.64 in.)

Mounting Thickness

Ceiling Thickness (Maximum): 26mm (1.03 in.)
Ceiling Thickness (Minimum): 9mm (0.36 in.)

Mounting Depth From Surface

<36mm (1 7/16in.)

Optional Rough In Frame

RIF160S

Optional Rear Enclosure

RNC160S

Net Weight

1.05kg (2.31lbs)

Unit Measurement

Piece

Downloads

Manual Individual Information Spec. Sheet Architectural Speaker Brochure Product Group Spec. Sheet Minimum Cabinet Volume Chart Cutout Template EASE GLL DATA Product Drawing Selection And Setup Guide Architectural Speaker Accessory Guide

KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
