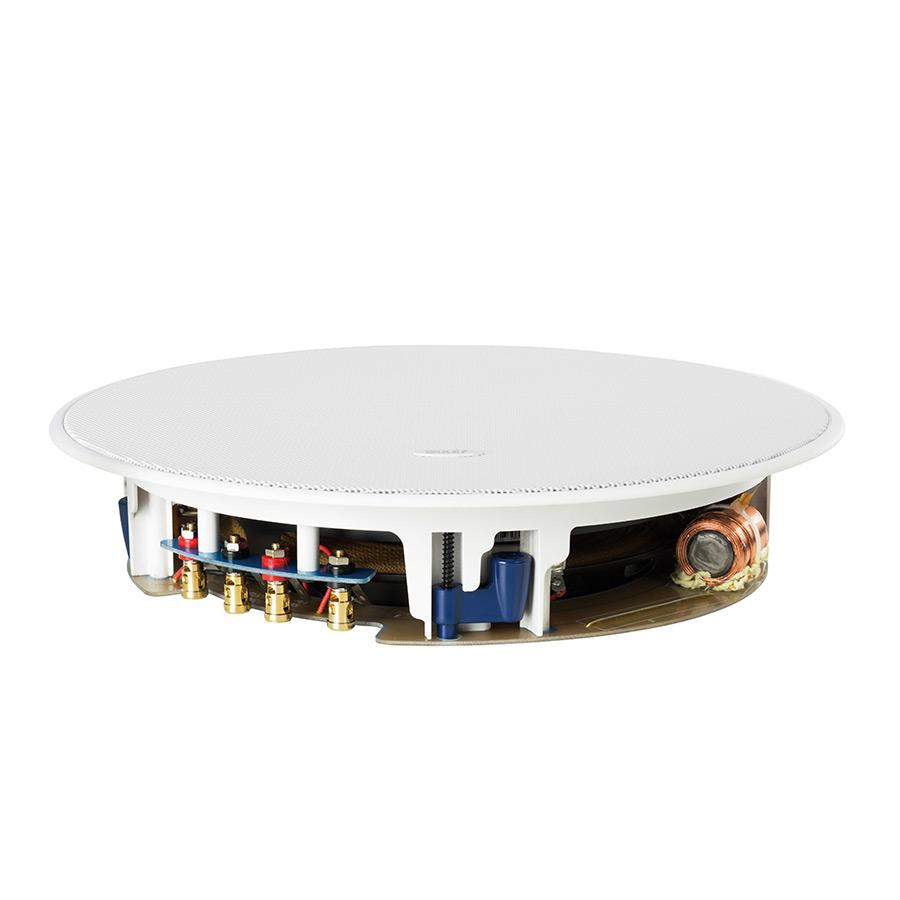

Ci200TRB

Frequently bought together

    =

      Features KEF’s patented Uni-Q driver array

      Boasting a formidable 200mm (8in.) subwoofer incarnation of our ultra-thin T Series woofer driver, the Ci200TRb opens up new possibilities for enjoying KEF’s uncompromised sound quality where installation space is at a premium.

      Ci200TRb

      Boasting a formidable 200mm (8in.) subwoofer incarnation of our ultra-thin T Series woofer driver, the Ci200TRb opens up new possibilities for enjoying KEF’s uncompromised sound quality where installation space is at a premium.

      Requiring less than 59mm (2 3/8 in.) of mounting depth, the Ci200TRb fits snugly in very narrow ceiling or wall spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments or your music system.

      When used in passive mode, the Ci200TRb adds impressive depth of bass when matched with our Ci160TR round or Ci160TS square speakers. In active mode, powered by KEF’s KASA500 System Amplifier, the Ci200TRb delivers thunderous output expected from a subwoofer in today’s dynamic home theaters.

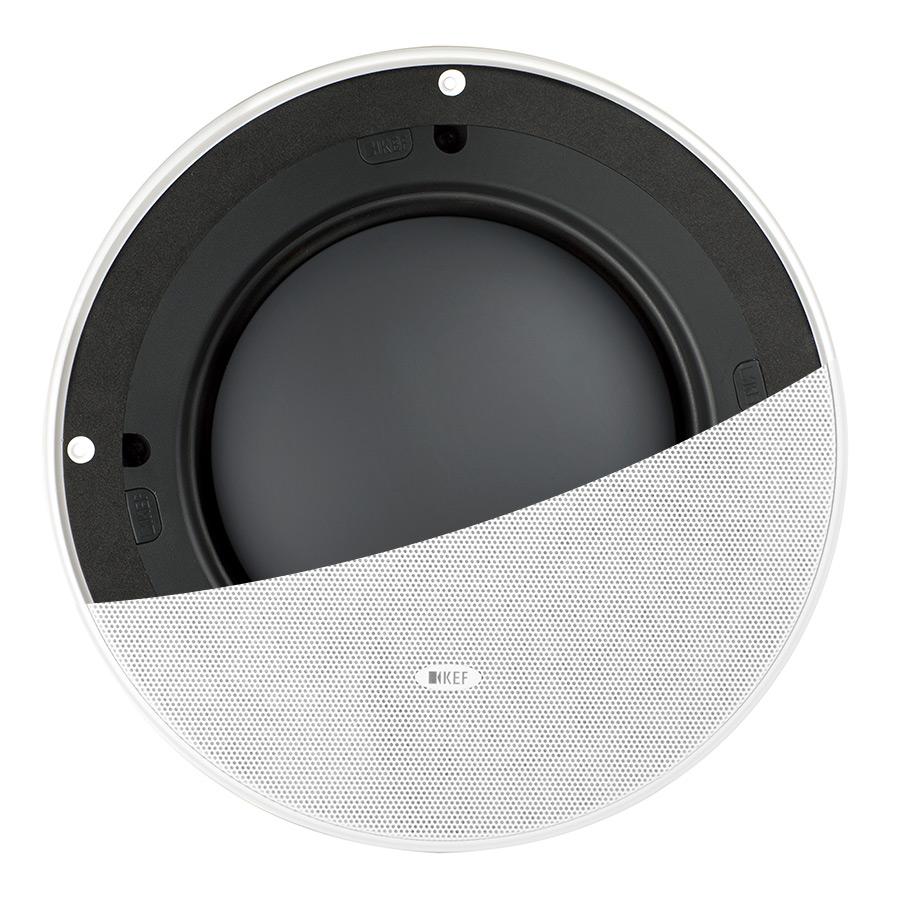

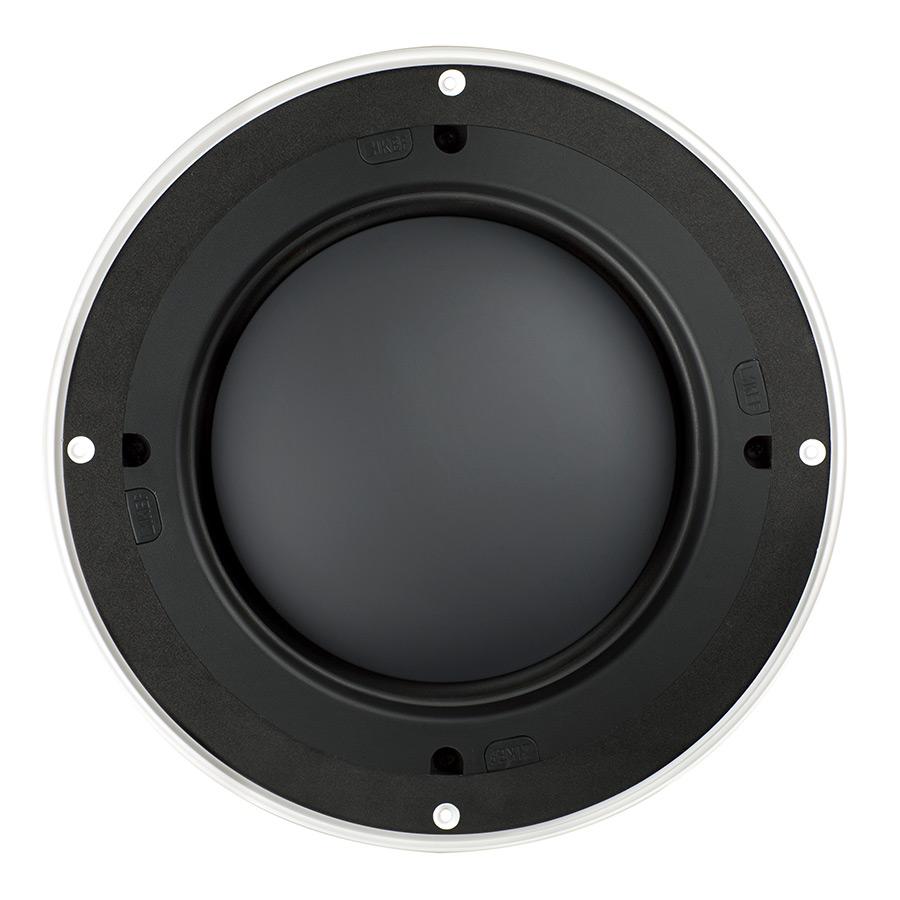

      Grille Off

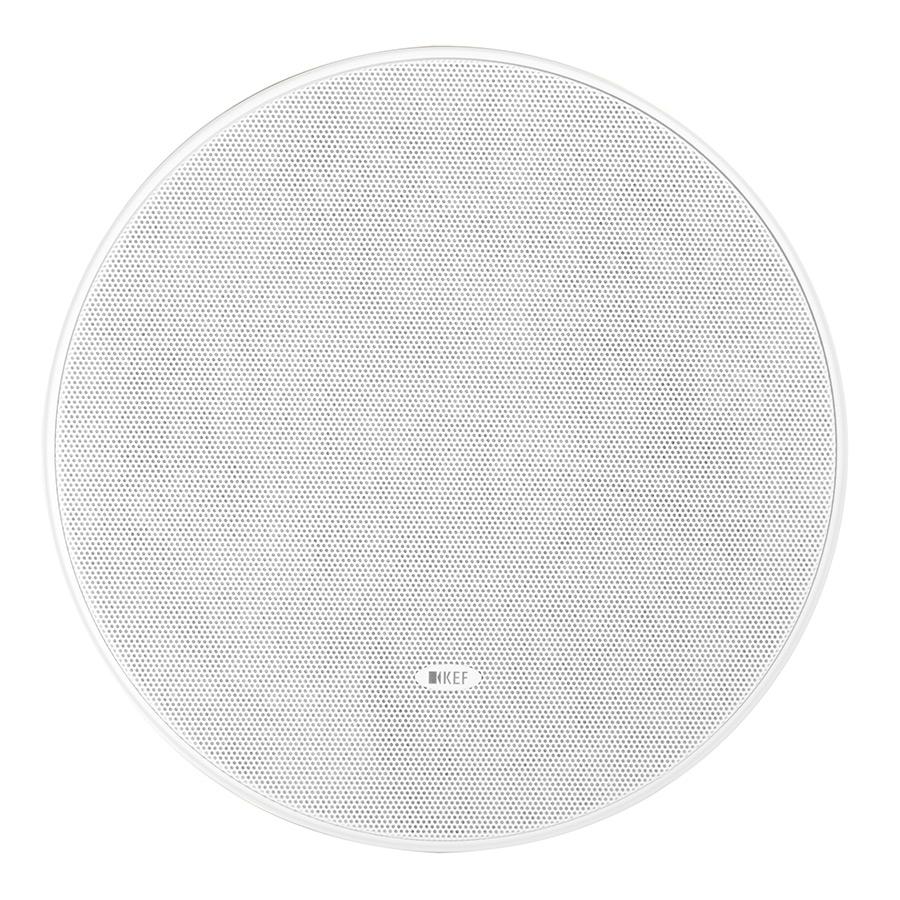

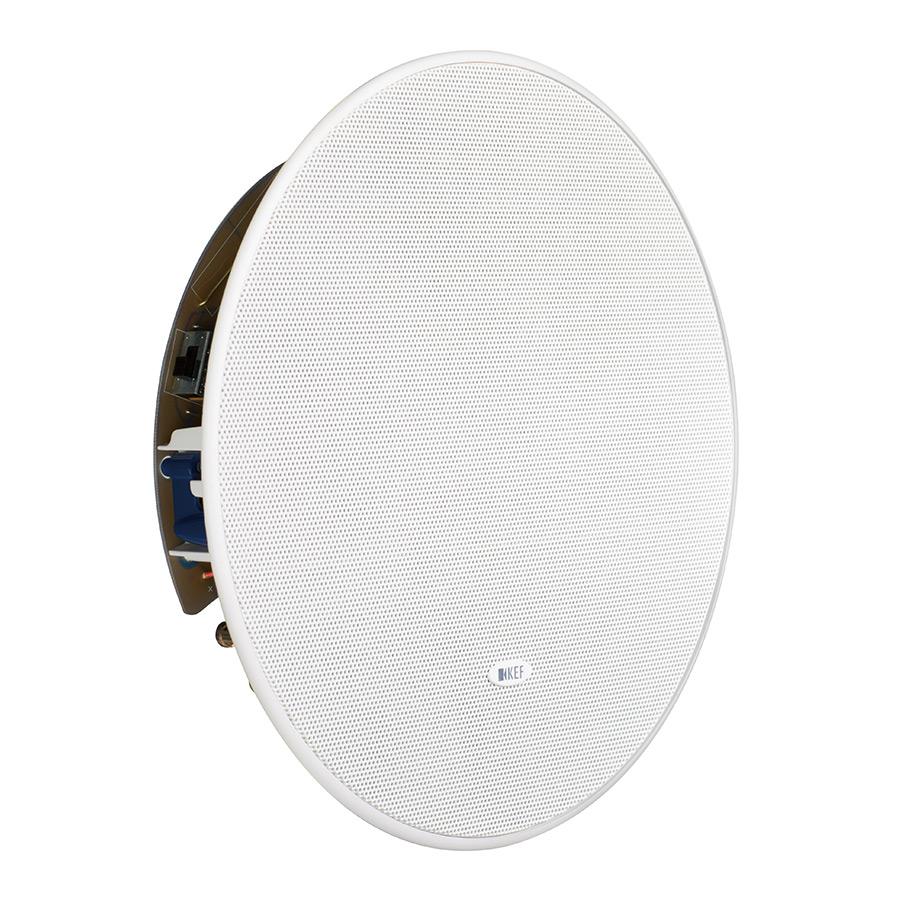

      Grille On
      The Details

      FEATURES

      accordion open
      Key Features
      <59mm (2 3/8in.) mounting depth allows fitment to very restricted cavities
      Ultra-slim 200mm (8in.) subwoofer unit with excellent bass extension
      Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor
      Fast, versatile installation on virtually any surface via dogleg
      Can be used as mono or stereo subwoofer
      Can be used in passive mode with internal crossover or active mode with KEF’s KASA500 System Amplifier

      SPECIFICATIONS

      accordion open
      Nominal Impedance
      2 x 8 Ohm - Stereo Mode
      16 Ohm - Mono Mode
      Sensitivity
      87dB (2.83V/ 1m)
      Frequency Response
      42Hz-120Hz - Passive
      32Hz-120Hz - With Kasa500
      Drive Units
      LF: 200mm (8 in.)
      Recommended Amplifier Power
      10-125W - Passive
      KASA500 - With Kasa500
      Product External Dimension (H X W X D)
      Diamater: 290 mm (11.42 in.)
      Depth: 63mm (2.48 in.)
      Cut-Out Dimensions (H X W)
      240mm (9.45 in.)
      Mounting Thickness
      Ceiling Thickness (Maximum): 26mm (1.03 in.)
      Ceiling Thickness (Minimum): 4mm (0.16 in.)
      Mounting Depth From Surface
      59mm (2.32 in.)
       Optional Rough In Frame
      RIF200R
      Optional Rear Enclosure
      RNC200R
      KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.

      Please visit our Ci Software Download page for more details.
