  • Architectural Speakers
  • Ci3160REFM-THX
  • 360°
*Actual product colour may vary from the 3D image shown.
*Actual product colour may vary from the 3D image shown.
Ci3160REFM-THX
Ci3160REFM-THX
Ci3160REFM-THX
Ci3160REFM-THX
Ci3160REFM-THX
Ci3160REFM-THX
Ci3160REFM-THX
Ci3160REFM-THX
Ci3160REFM-THX
Ci3160REFM-THX
Ci3160REFM-THX
Ci3160REFM-THX
Ci3160REFM-THX
Ci3160REFM-THX
Ci3160REFM-THX
Ci3160REFM-THX
Ci3160REFM-THX

Architectural Speakers

Ci3160REFM-THX

THX® CERTIFIED ULTRA

Frequently bought together

    =

      THX® Certified Ultra Speaker with MAT™

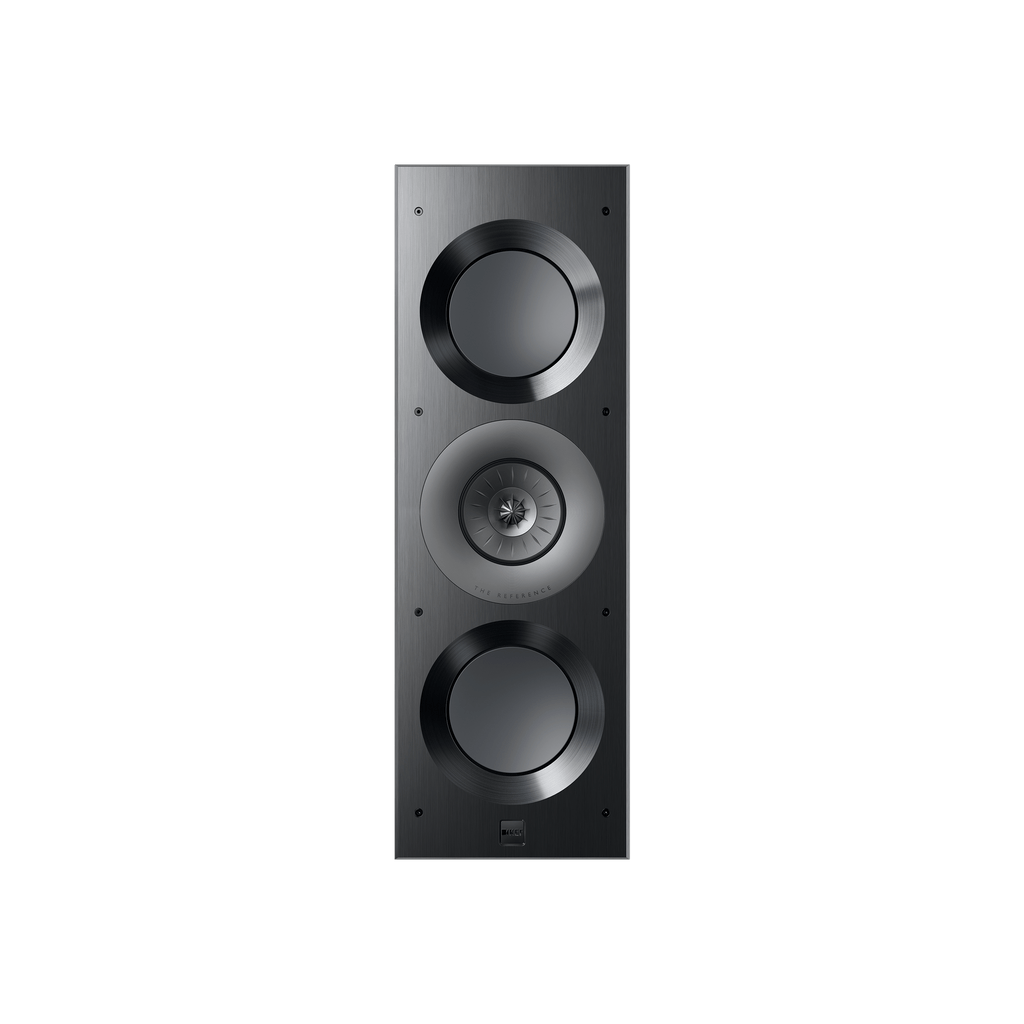

      The in-wall Ci-Reference architectural speaker Ci3160REFM-THX is a world-class speaker that handcrafted by the KEF engineers in Maidstone, UK. It does not only meet the standards set by The Reference, but also one of the highest THX® performance classes – THX® Certified Ultra. Together with the 12th generation Uni-Q driver array with Metamaterial Absorption Technology (MAT™), Ci3160REFM-THX delivers an immersive, high-fidelity soundstage with unmatched sonic excellence even for large home theatres and living rooms.
      Enquiry
      Where to Buy
      Select a property

      Select a property

      Select a property

      Select a property
      Select a property

      Select a property

      Select a property

      Select a property
      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property
      Select a property
      Grille Off
      Grille On
      Select a property
      Select a property
      Select a property
      Select a property

      Select a property

      Select a property

      Select a property
      Select a property
      Select a property
      Select a property
      Select a property

      Select a property

      Select a property

      Select a property
      Select a property
      Select a property
      Select a property
      Select a property

      Select a property

      Select a property

      Select a property
      Select a property
      Select a property
      Select a property
      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property
      Select a property
      Select a property
      Select a property
      Select a property
      Select a property

      Select a property

      Select a property

      Select a property
      Select a property
      Select a property
      Select a property
      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property
      Select a property
      Select a property
      Select a property
      Select a property
      Select a property

      Select a property

      Select a property

      Select a property
      Select a property
      Select a property
      Select a property
      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property
      Select a property
      Select a property
      Select a property
      Select a property
      Select a property

      Select a property

      Select a property

      Select a property
      Select a property
      Select a property
      Select a property
      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property
      Select a property
      Select a property
      Select a property
      Select a property
      Select a property

      Select a property

      Select a property

      Select a property
      Select a property
      Select a property
      Select a property
      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property
      Select a property
      Select a property
      Select a property
      Select a property
      Select a property

      Select a property

      Select a property

      Select a property
      Select a property
      Select a property
      Select a property
      Select a property

      Select a property

      Select a property

      Select a property

      Realistic, high-fidelity sound

      Featuring two 160mm (6.5in.) bass drivers, Ci3160REFM-THX delivers a clean, rich and highly articulate bass down to 35Hz. Together with the massive, vented motor system that was designed specifically for an in-wall environment, making Ci3160REFM-THX disappear into the room to leave an awe-inspiring, immersive experience.

      THX® Certified

      Ci3160REFM-THX delivers ultra-high performance with true theatre sound quality for large theatres and living rooms and it is THX® Certified Ultra.

      Metamaterial Absorption Technology

      Absorbs 99% of the unwanted sound

      Handcrafted in UK

      As our high-end speakers, Ci-Reference is designed, engineered, and hand-built in Maidstone, UK

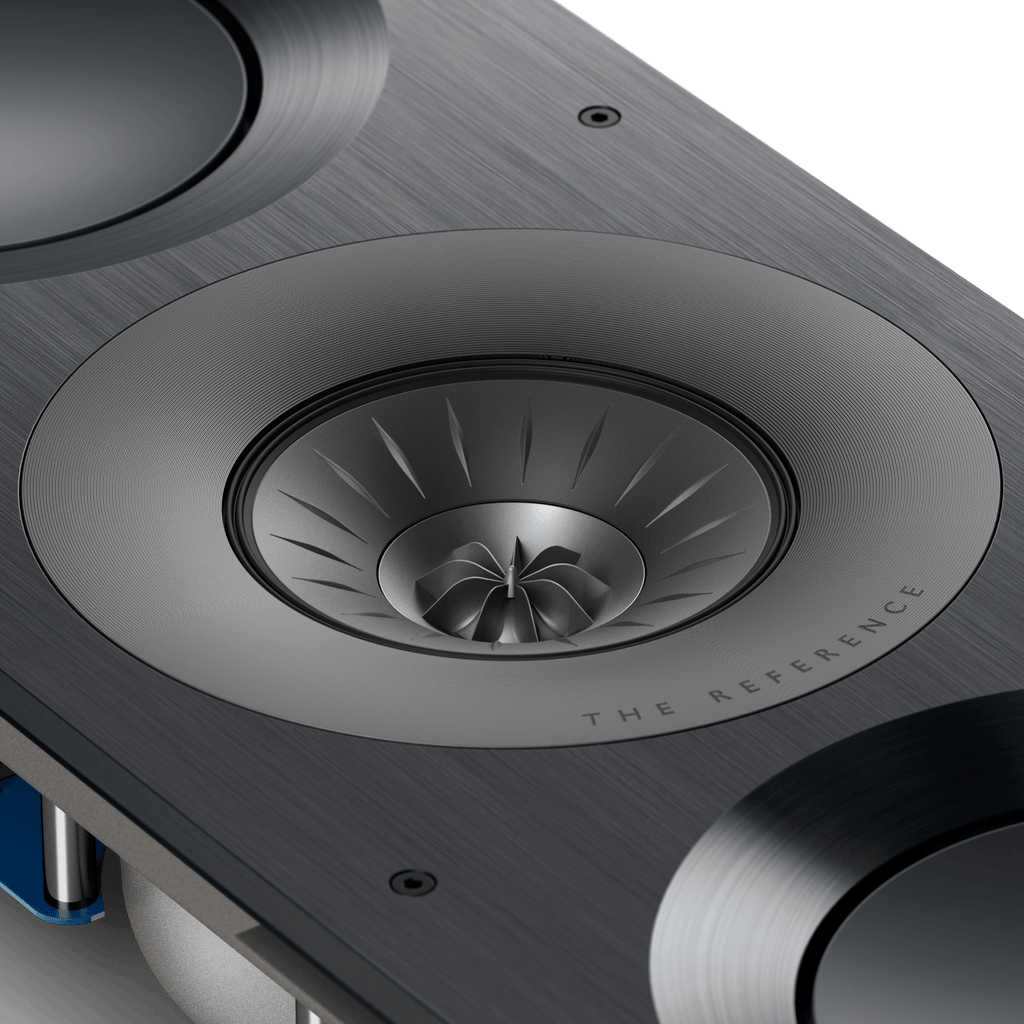

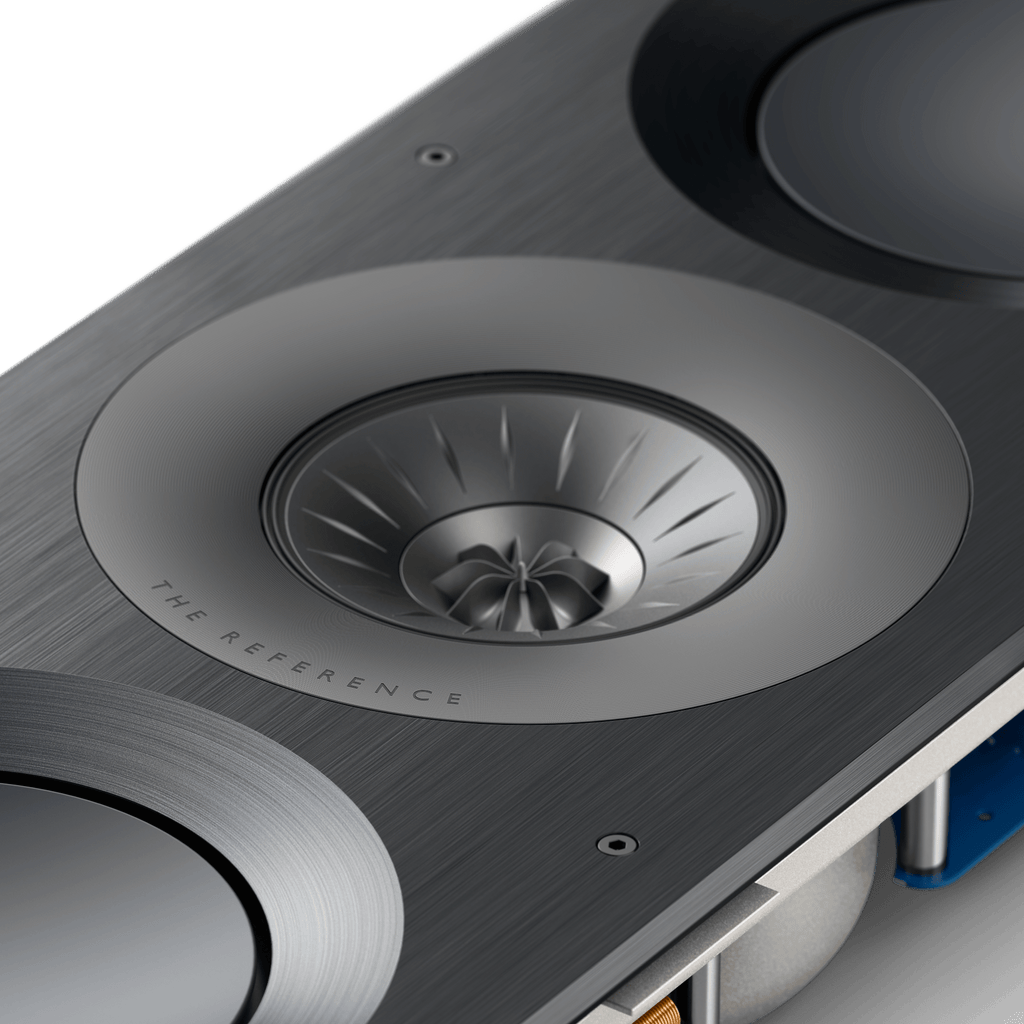

      Uni-Q®

      Acts as a single point source to enlarge the 'sweet spot' and disperse sound more evenly.

      Finished to perfection

      Available in Aluminium Black/Grey, a hairline finished aluminium baffle in black, with the Uni-Q driver array in grey.

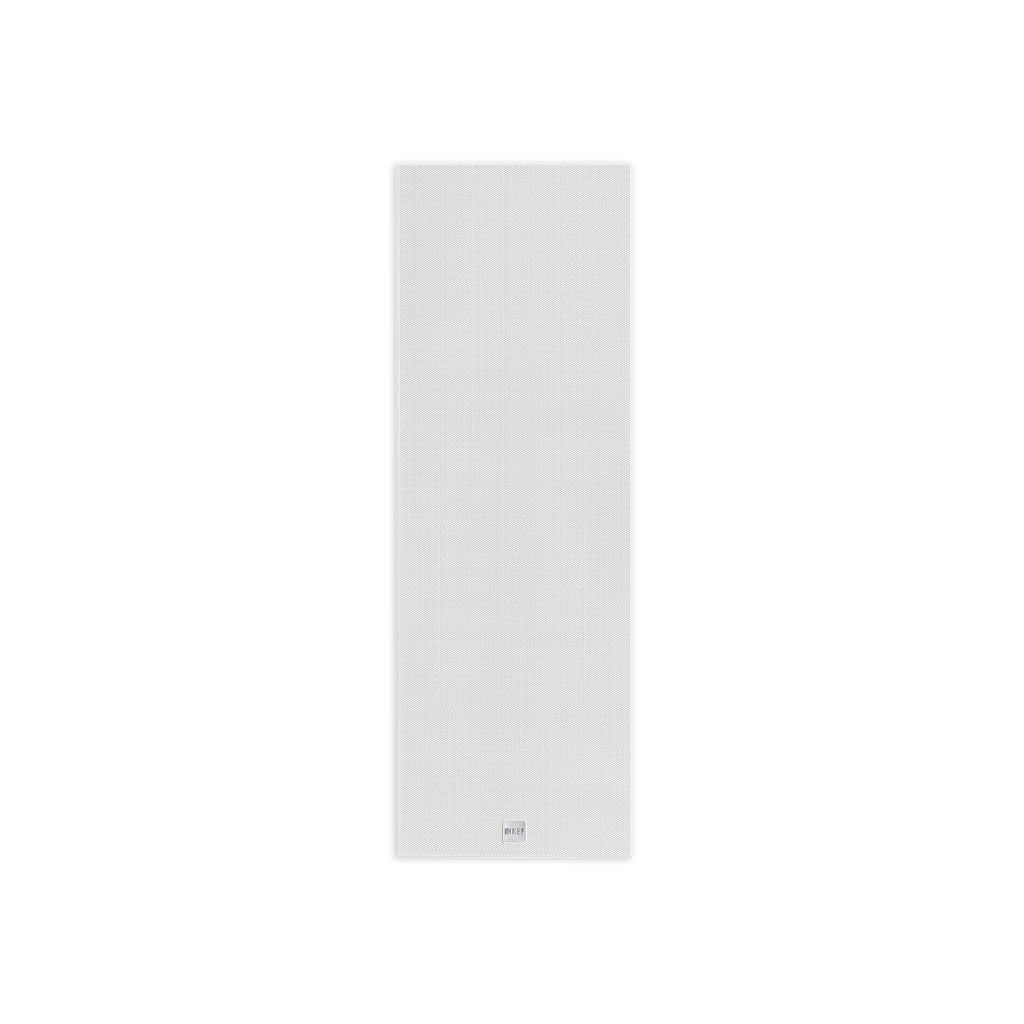

      Hide your speakers, not your sound

      The paintable magnetic metal grille and optional black cloth grille ensure the speaker seamlessly blends into the environment.

      Total attention to detail

      The 11mm thick precision-machined aluminium baffle is engineered to eliminate vibration and provides a stoic platform for the powerful drivers to perform at their best.

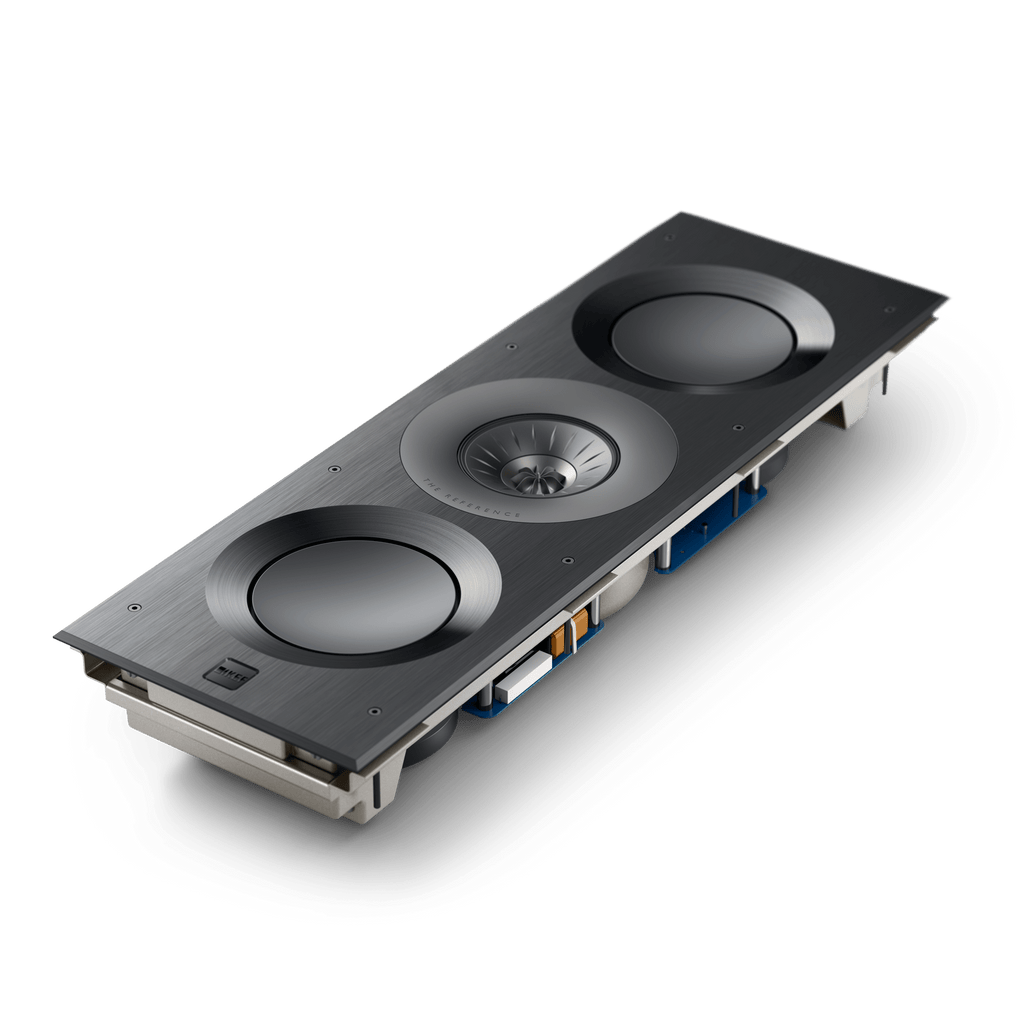

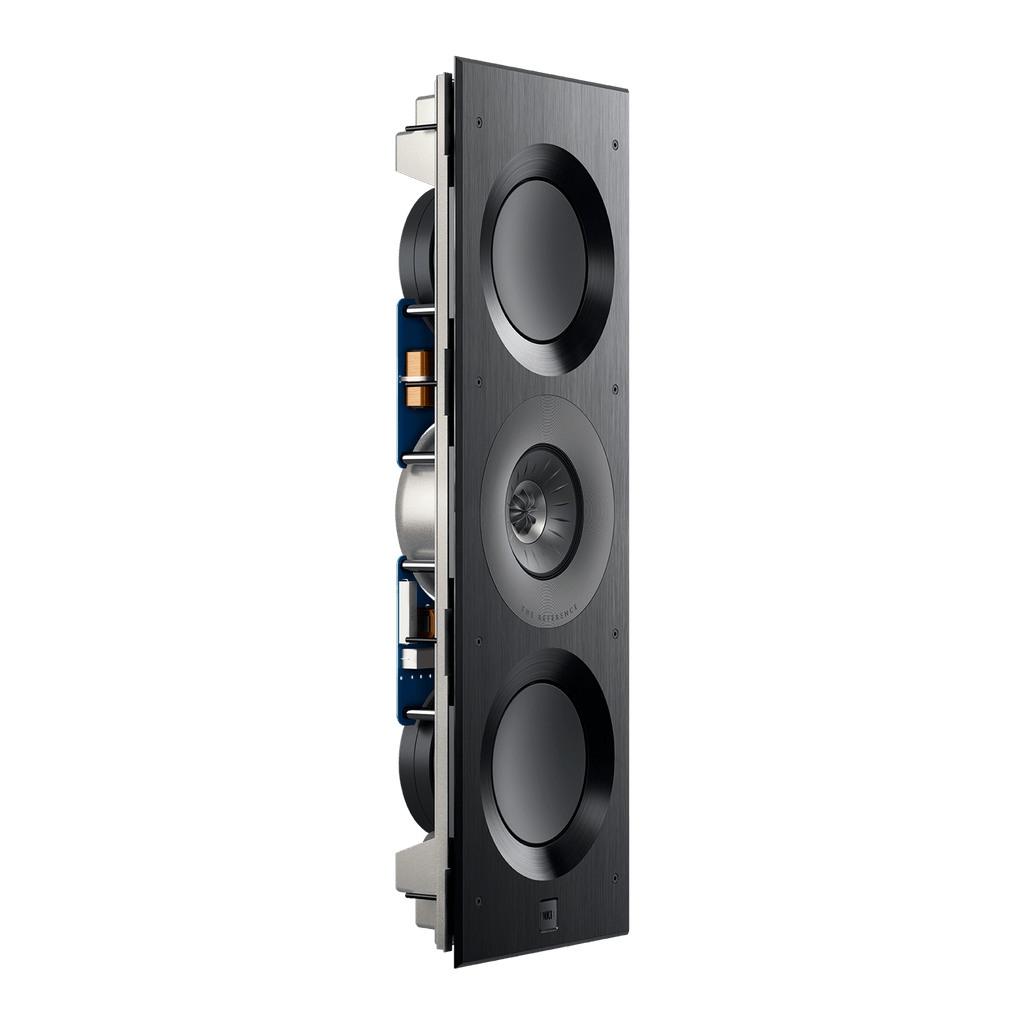

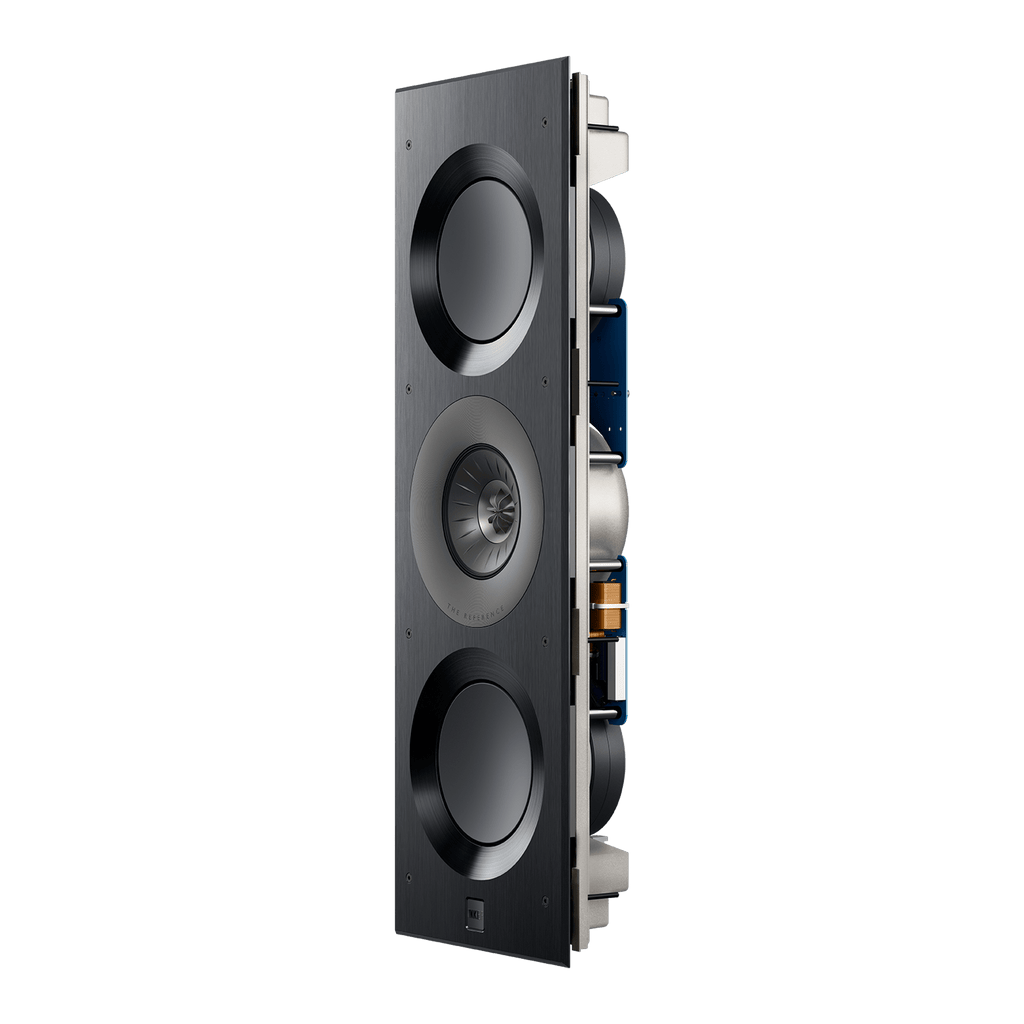

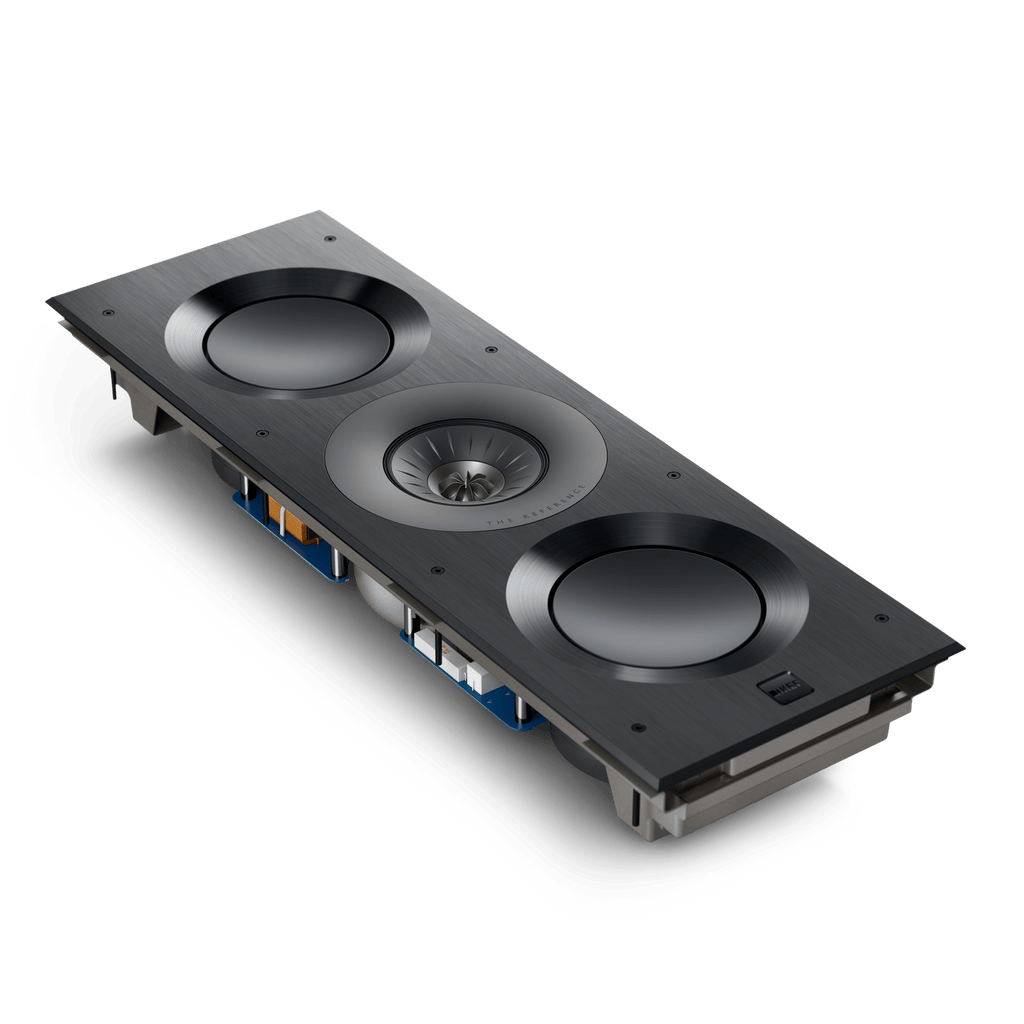

      See it from all angles
      Looks as great as it sounds, use our 360o interactive spin function to check out all the well-considered details of Ci3160REFM-THX.
      *Actual product colour may vary from the AR version shown.
      **This feature is not supported on Chrome for iOS devices.

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      Select a property

      The Details

      FEATURES

      accordion open

      SPECIFICATIONS

      accordion open
      Nominal Impedance
      4Ω
      Sensitivity (2.83V/1m)
      89dB
      Frequency Response (±6 dB) open-backed
      40 - 28kHz
      Frequency Range (-10 dB)
      32 - 45kHz
      Nominal Coverage (degrees)
      150°
      Crossover Frequency
      600Hz, 3000Hz
      Drive Units
      LF: 2 x 160mm (6.5in.)
      MF: 125mm (5.25in.) Uni-Q
      HF: 25mm (1in.) vented aluminium dome with Metamaterial Absorption Technology
      Recommended Amplifier Power
      50 - 350 W
      Recommended High-pass Filter (Hz)
      35Hz - 80Hz
      Product External Dimensions (H X W X D)
      680 x 230 x 105.7mm (26.77 x 9.06 x 4.16in.)
      Cut-out Dimensions (H X W)
      660 x 209mm (25.98 x 8.23in.)
      Net Weight
      13.6kg (29.92lbs.)
      Mounting Depth From Surface
      99mm (3.9in.)
      Optional Rough In Frame
      RIF3160L
      Ideal Rear Volume (L)
      60
      Minimum Rear Volume (L)
      30
      Max SPL (dB)
      110dB
      Certification
      THX Cetified Ultra
      Wall Thickness (Maximum)
      40mm (1.58in.)
      Wall Thickness (Minimum)
      6mm  (0.24in.)
      Remarks

      1 Metamaterial Absorption Technology is a joint development with Acoustic Metamaterials Group.
      KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. THX, the THX logo, and Ultra are trademarks of THX Ltd. THX and the THX logo are registered in the U.S. and other jurisdictions.
